Panel cut-out size for the Multitrend SX recorder
The Minitrend QX, Multitrend SX and eZtrend QXe recorders are DIN Standard sizes
and should be panel mounted.
Panel
Cut-out
Panel
Cut-out
Panel
Cut-out
281.00
(11.06”)
281.00
(11.06”)
>20.00
(0.787”)
>20.00
(0.787”)
Please note the recommended
spacing for adjacent mounting

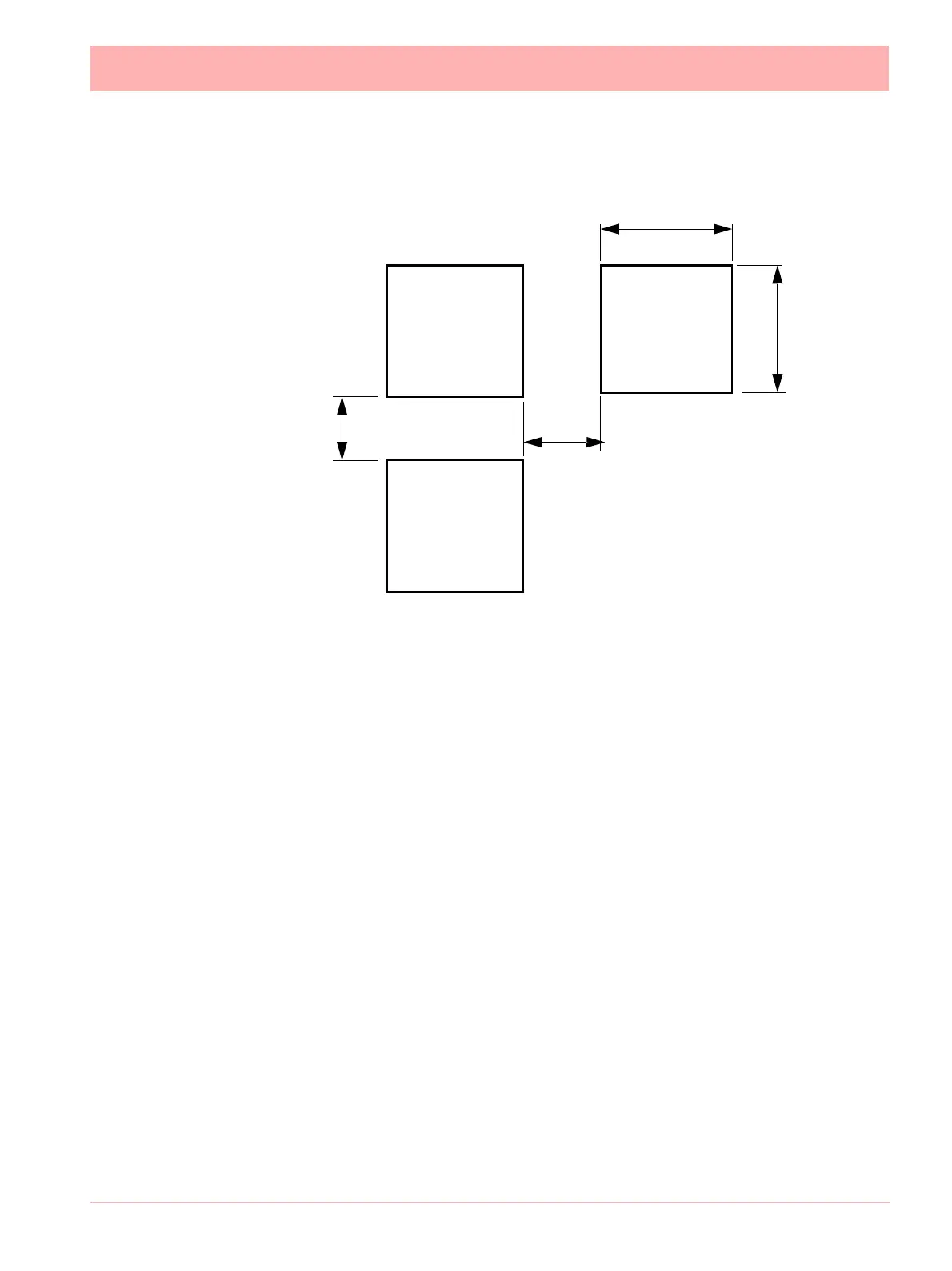

Figure 2.2 Multitrend SX Panel cut-out
