Help
Help is available on all menu screens and is context sensitive from each screen. The Help
icon will reside either in the top right or bottom right on all menu screens. All the Help files
have a Home button that will take you to the Help System main index. Navigating in the help
does not stop the logging.

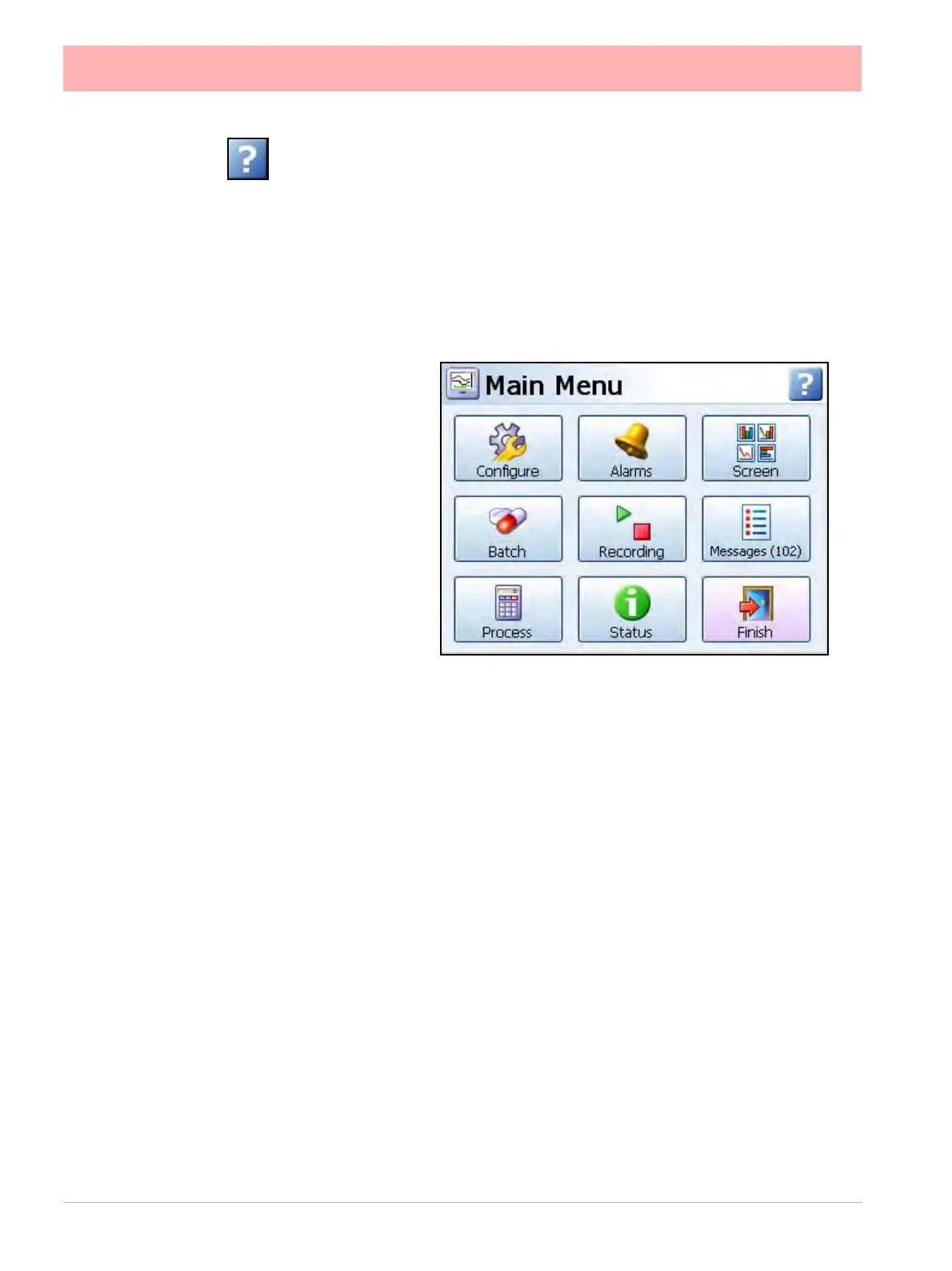

Main Menu
• Configure - Configure the recorder through the Setup, Layout, Passwords and Settings
menus.
See “Configure Menu” on page 49.
• Alarms - Acknowledge Alarms, Alarm configuration and their associated condition and
View the current alarm status. See “Alarms Menu” on page 137.
• Screen - The Screen Menu includes an Edit button to configure Pen/Channel mapping,
Replay previous data, Screen List to change the screen currently being displayed and
Clean Screen facility. There are Calibrate and Touch Test features to re-calibrate the
screen. See “Screen Menu” on page 138.
• Batch - The Batch function manages sections of data. Batch markers are configured
by the user and are used to identify and analyse batches of data.
See “Batch
Setup/Batch Control” on page 142.
• Recording - Start or Stop recording. Export Now will transfer data to external media
such as Compact Flash or USB key. See “Recording Menu” on page 146.
• Messages - The messages screen will display certain message areas. Specific types of
messages have been put into categories or all messages can be viewed.
See “Mes-
sages Menu” on page 148.
• Process - Controls for any process in use eg. Max/Mins, Totals, Counters, User Varia-
bles, Script Timers and Reports can be controlled from this screen
See “Process
Menu” on page 151.
Select a button
to take you to
the next menu
