43-TV-25-30 Iss.6 GLO Aug 07 UK 9
Multitrend SX Dimension details
Installation Instructions
• Minimum panel thickness = 2mm (0.078”), max = 20mm (0.78”)
• Both recorders must be inserted from the front of the panel,
• Two mounting clamps are supplied and can be fixed either on the top and bottom
sides or on the left and right sides of the case.
4 Mounting clamp positions. For standard units fit only
two brackets on opposite sides of the unit, either top
and bottom or left and right slots. NEMA 4X rated re-
corders require all four mounting brackets to be fitted.

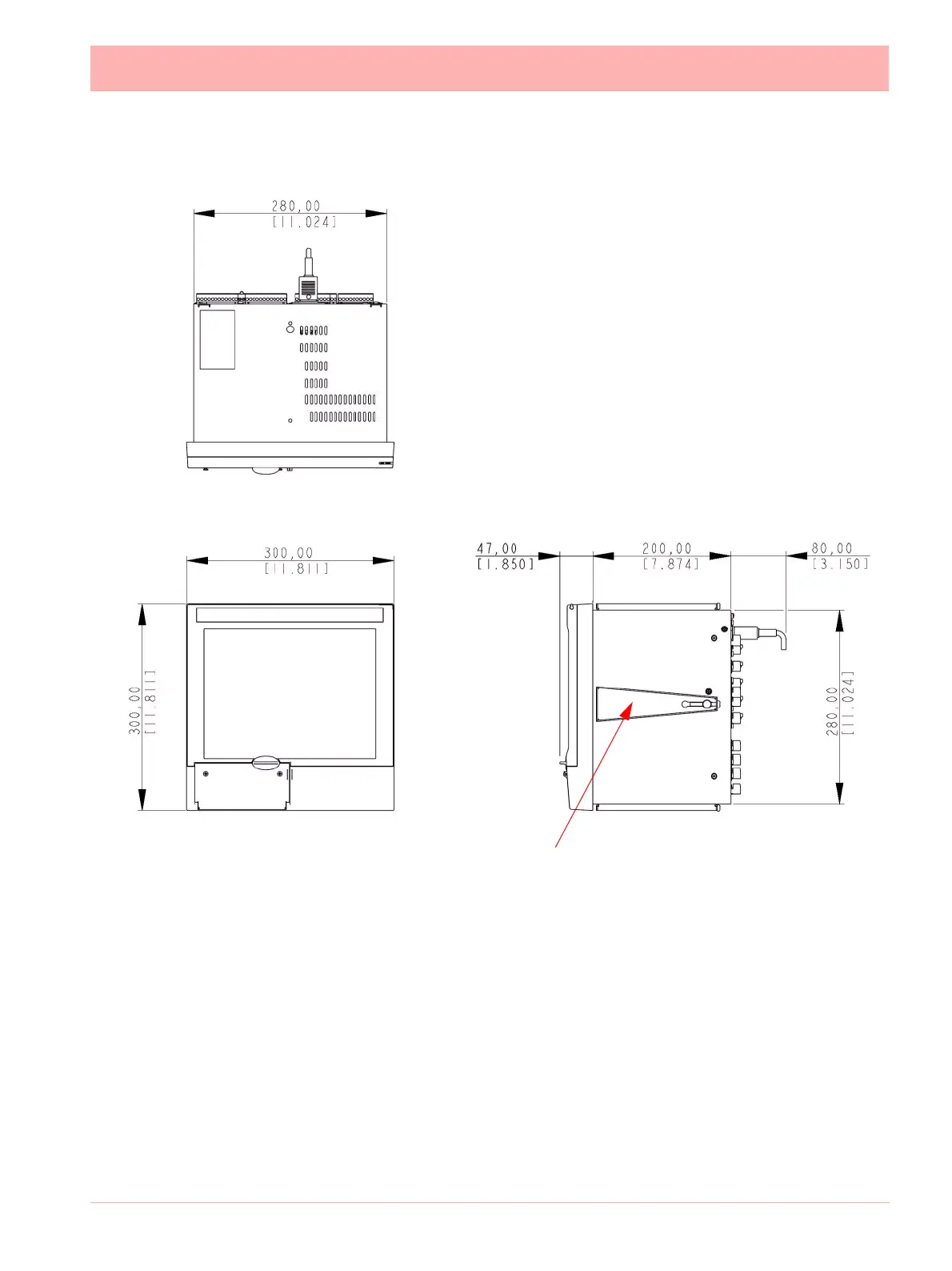

Figure 2.4 Multitrend SX recorder dimensions
