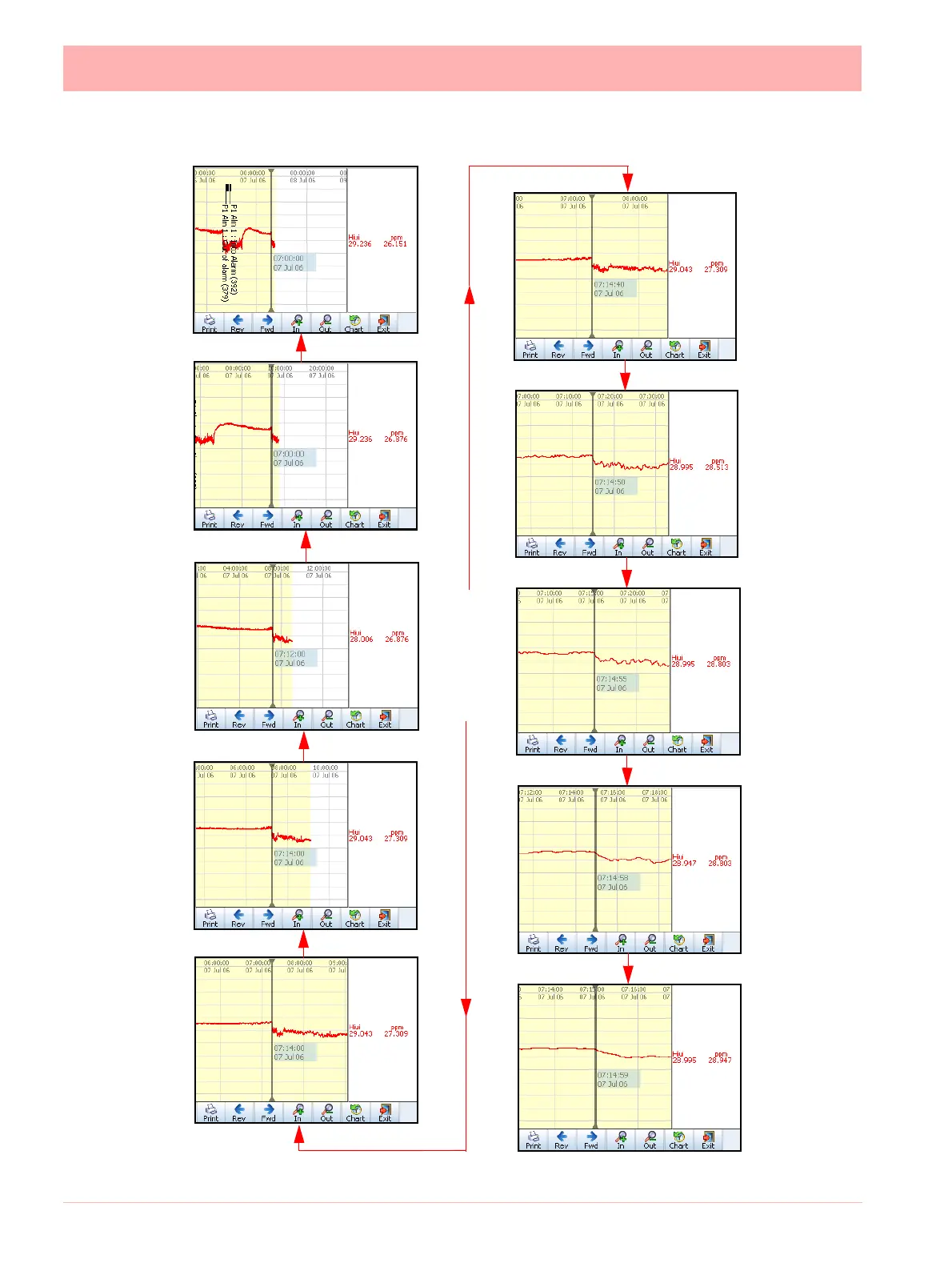

Figure 6.4 Zooming on a Replay screen

12 hour/div

replay chart

10 hour/div

replay chart

4 hour/div

replay chart

2 hour/div

replay chart

1 hour/div

replay chart

Fast chart

speed

(600mm/hr)

Medium

chart speed

(20mm/hr)

10 mins/div

replay chart

5 mins/div

replay chart

2 mins/div

replay chart

1 min/div

replay chart

Zoom

Out

1 hour/div

replay chart

(bigger 

divisions)

Slow chart

speed 

(5mm/hr)
