Honeywell Minitrend QX

42 43-TV-25-30 Iss.6 GLO Aug 07 UK

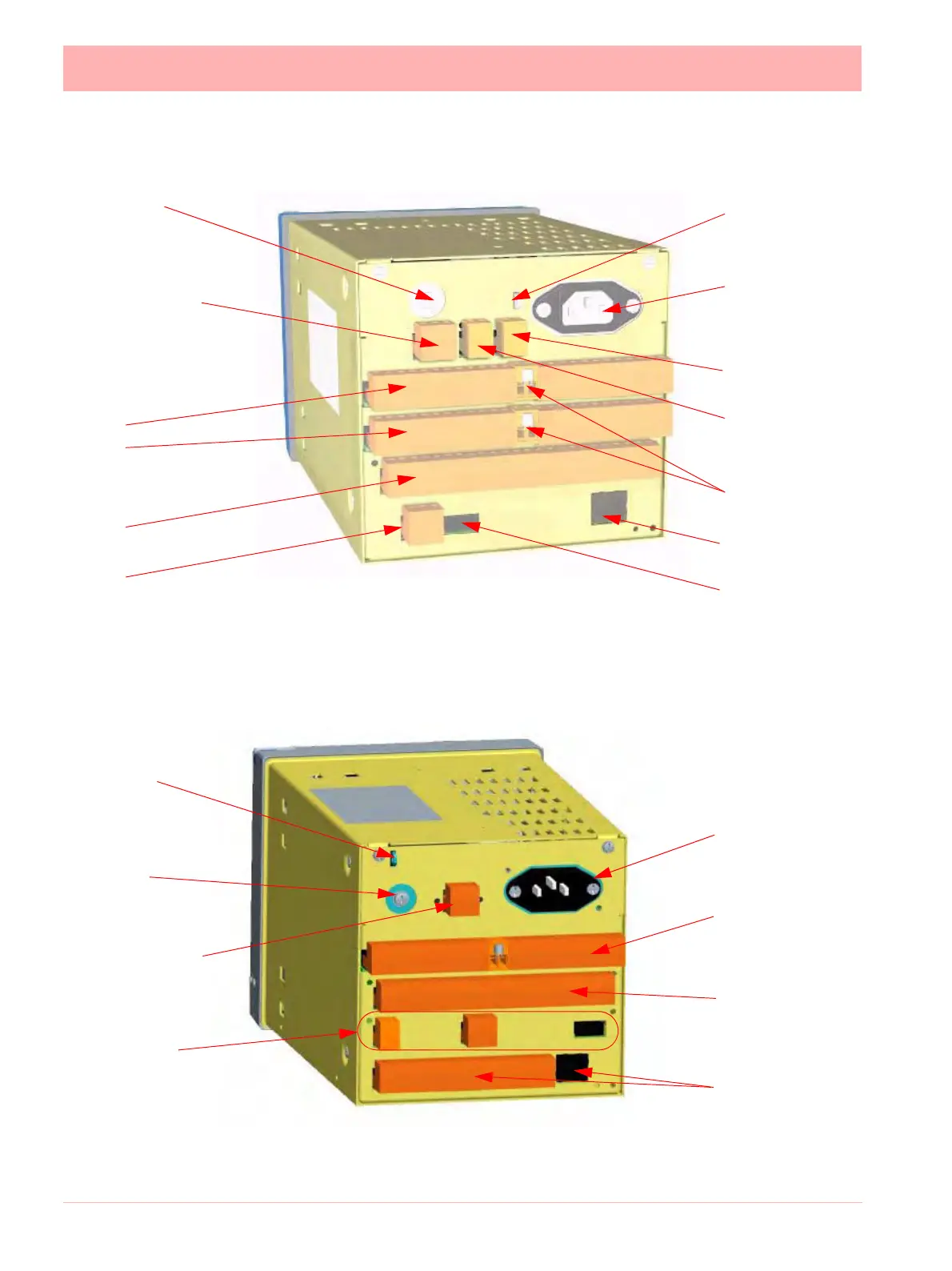

Minitrend QX Rear Connections
eZtrend QXe Rear Connections
Wire seal
AC supply 
100 - 250VAC
Common Relay
Output (SPNC)
24V TX Power
Supply Output
USB Host
Ethernet
Earth screw 
(ground)
20 to 55VDC/
20 to 30VAC Input 
24/48V Instrument
power (option)
Analogue Input /
Analogue Output /
or Pulse Input
Slot A
Slot B
Alarm or 
Digital I/O 
Slot G
RS485
100-250VAC Rear Panel AC power is connected via the
standard configuration IEC chassis plug on the rear panel
CJC Sensor
Wire seal
AC supply 
100 - 250VAC
24V TX Power
Supply Output /
RS485 port and
USB Host 
(option)
Up to 6 Analogue
Inputs and
Ethernet (std)
Earth screw 
(ground)
20 to 30VDC/
20 to 25VAC Input 
24VInstrument
power (option)
Analogue Input
card 
Slot B (option)
Alarm or 
Digital I/O 
Slot G (option)
100 - 250VAC Rear Panel AC power is connected via the
standard configuration IEC chassis plug on the rear panel
