Totaliser Menu
(Main Menu > Configure > Setup > Edit Setup> Pens > Totaliser)
The Totals option must be active to use this option. See Table 7.1, “Firmware Options,”
on page 201.
To Start, Stop, Reset and View Totals, see “Totals” on page 151.
The Totaliser function is normally associated with flow monitoring applications. The input to
the recorder would be a measure of flow rate (eg. In litres per second) and the total amount
that has flowed over a specified time period. Multiple totalisations are possible with the use
of extra pens (firmware Credit option). Totalisation values are 10 digits plus exponent.
Click on Totaliser to set up the totalising profile per pen.
Select Totaliser from the Pen screen to display the totalising setup menu
• Enabled - Toggles On and Off to activate or de-activate totalising for this pen.
50%
40%
0%
100%
Low Alarm Level
10% Hysteresis level
Alarm de-activated
at this point
Alarm activated
at this point
Figure 4.5 Hysteresis Level
Menu path to current menu

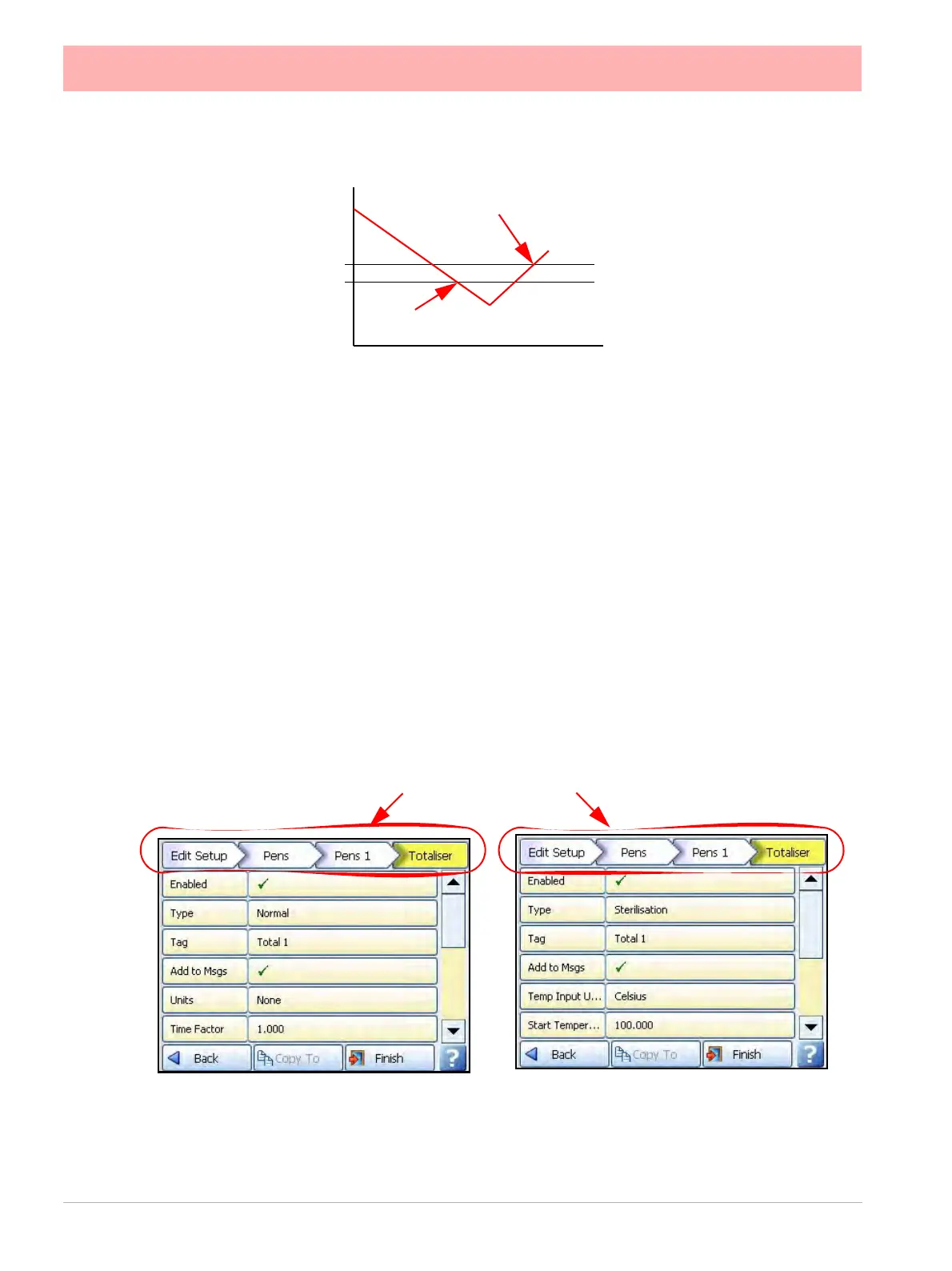

Totaliser menus showing Normal and Sterilisation types
To Next Page
