Program Panel Program
Programming screens in this section allow the user to define the mapping and functional mode of
these devices and points. Each annunciator board may be labeled using the ACS Label Menu.
(Refer to Section 3.4.7, “Annunciator Board Label”, on page 55).
UDACT and TM-4 communicators, as well as the UZC Zone Coder, are installed on the same
EIA-485 ACS circuit as annunciators, and so are included with annunciator programming. The
TM-4 occupies one of the 32 annunciator addresses, and the UDACT can occupy one or more of
these addresses. The UZC can occupy up to four annunciator addresses, each with 64 points. When
the UDACT or UZC expand beyond one annunciator address, 64PT should be used for the
subsequent address types, and the annunciator addresses should be sequential. Other than address
assignment, there is no ACS point programming for these devices. Refer to the specific device
manual for more information.
Press the ACS Programming soft key at the Panel Program screen to invoke the following screen.
Press the up and down arrow keys on the keypad to navigate through the annunciator addresses.
There will be a cursor highlighted at the current annunciator address position.

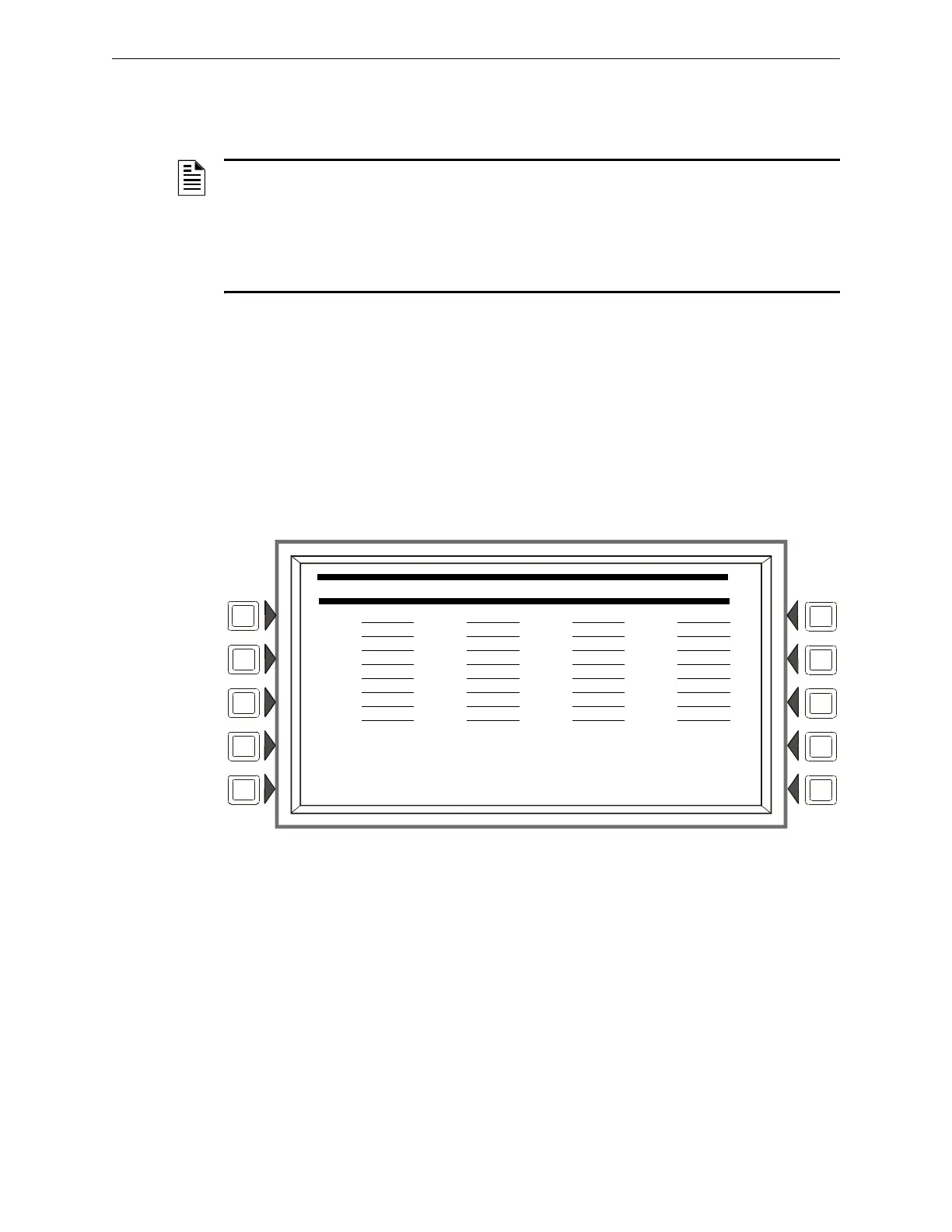

Figure 3.11 ACS Programming Screen
NOTE: Smoke Control devices must be set as FSCS or HVAC annunciator types. In addition to
its 64 smoke control points, when an SCS device is operating in FSCS (Firefighters Smoke
Control Station) mode, there are 32 additional points which function as alarm points. They can be
mapped to a zone or point to send the SCS device into a fire alarm state when any of the
additional 32 points is activated. Any of the 32 alarm points that are used must be set to
MONITOR mode from the panel. Any of these points that are not used can be set to NONE. Refer
to the SCS manual for further information on Smoke Control devices.
ACS PROGRAMMING
A01:64PT A02:64SYS A03:96PT A04:TM4
A05:UDACT A06:96SYS A07:FSCS A08:UZC
A09: NO A10: NO A11: NO A12: NO
A13: NO A14: NO A15: NO A16: NO
A17: NO A18: NO A19: NO A20: NO
A21: NO A22: NO A23: NO A24: NO
A25: NO A26: NO A27: NO A28: NO
A29: NO A30: NO A31: NO A32:AMG
ANNUNCIATOR TYPE ACCEPT
POINT PROGRAMMING BACK
