Chapter 2 Operating Your Universal Counter
Using the Gate & External Arm Menu Key
Operating Guide 2-21
2

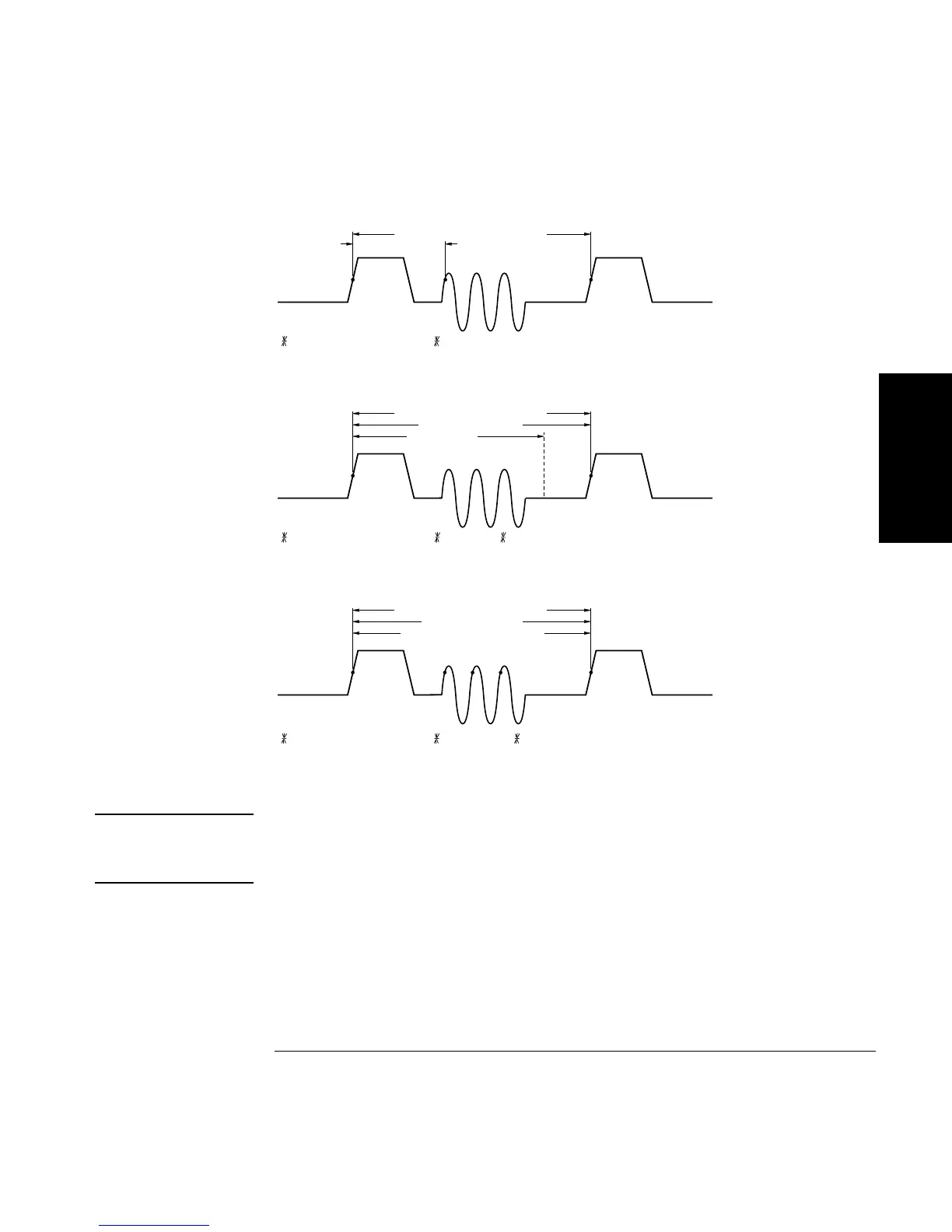

Figure 2-2. HP 53132A (With S/N Prefix 3646 and Above) Auto Arming
NOTE The examples in Figure 2-2 have the input signal applied to Channel 1
with COMMON 1: ON, Channel 1 SLOPE: POS, and Channel 2 SLOPE:
POS.
DESIRED T.I. MEASUREMENT
START STOP
ACTUAL T.I. MEAS
START: AUTO, DELAY : NONE
DESIRED T.I. MEASUREMENT
START STOP
ACTUAL T.I. MEAS
DELAY TIME
DESIRED T.I. MEASUREMENT
START STOP
ACTUAL T.I. MEAS
DELAY STOP TO 4th EVENT
12 3 4
START: AUTO, DELAY : TIME, T : (specified)
START: AUTO, DELAY : EVENT, E : 4
(standard T.I. measurement)
