Configuring cross-subnet portal authentication
Network requirements
As shown in Figure 49, Switch A supports portal authentication. The host accesses Switch A through
Switch B. A portal server serves as both a portal authentication server and a portal Web server. A
RADIUS server serves as the authentication/accounting server.
Configure Switch A for cross-subnet portal authentication. Before passing the authentication, the host can
access only the portal Web server. After passing the authentication, the user can access Internet
resources.

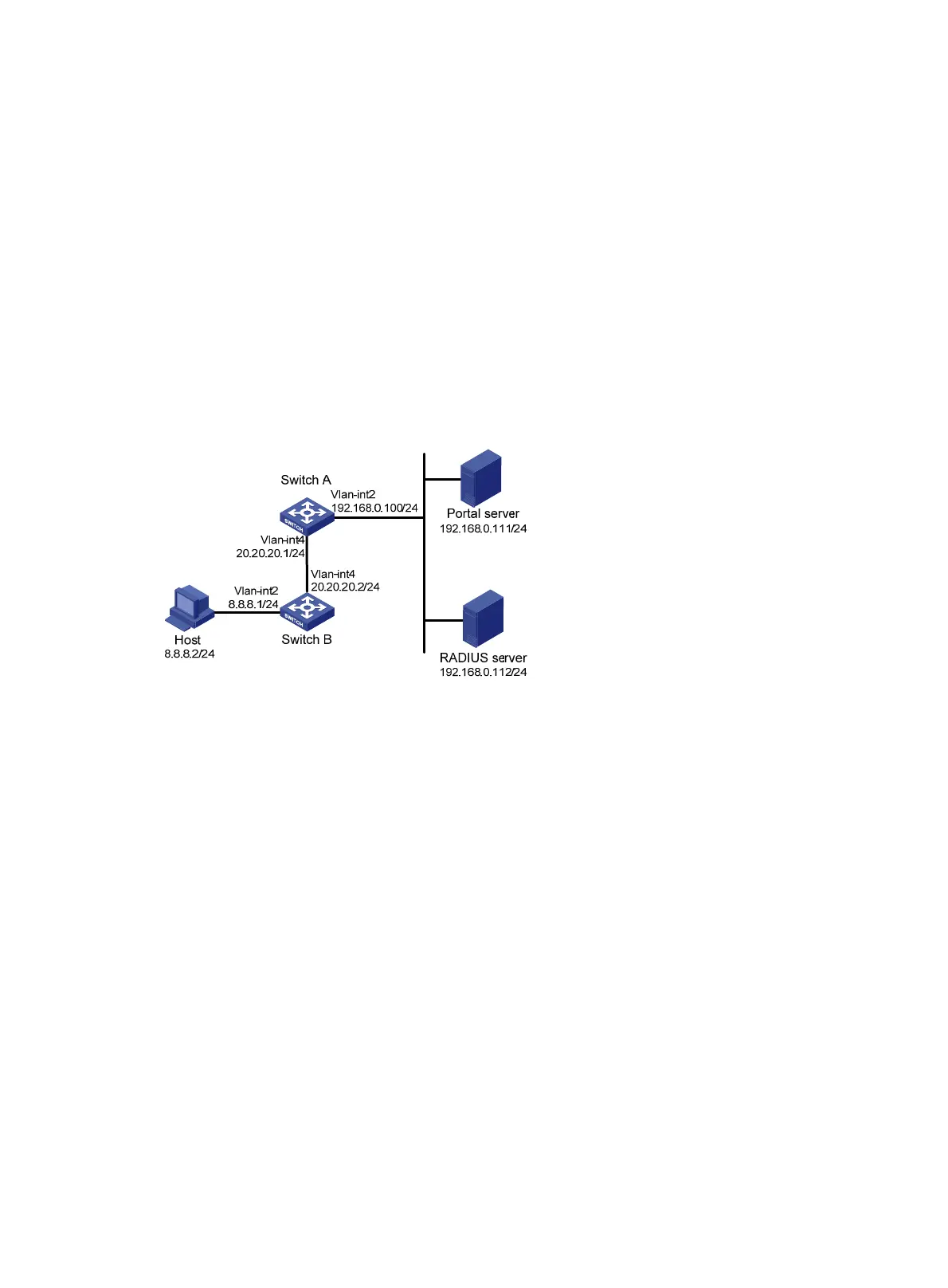

Figure 49 Network diagram
Configuration prerequisites and guidelines
• Configure IP addresses for the switch and servers as shown in Figure 49 and make sure the host,
switch, and servers can reach each other.
• Configure the RADIUS server properly to provide authentication and accounting functions.
• Make sure the IP address of the portal device added on the portal authentication server is the IP
address (20.20.20.1) of the switch's interface connecting the host. The IP address group associated
with the portal device is the subnet of the host (8.8.8.0/24).
Configuration procedure
Perform the following tasks on Switch A.
1. Configure a RADIUS scheme:
# Create a RADIUS scheme named rs1 and enter its view.
<SwitchA> system-view
[SwitchA] radius scheme rs1
# Specify the primary authentication server and primary accounting server, and configure the keys
for communication with the servers.
[SwitchA-radius-rs1] primary authentication 192.168.0.112
[SwitchA-radius-rs1] primary accounting 192.168.0.112
[SwitchA-radius-rs1] key authentication simple radius
[SwitchA-radius-rs1] key accounting simple radius
