The output shows that a dynamic IPv4 source guard binding entry is generated based on a DHCP
snooping entry.
Dynamic IPv4 source guard using DHCP relay configuration
example
Network requirements
As shown in Figure 107, DHCP relay is enabled on the switch. The host obtains an IP address from the
DHCP server through the DHCP relay agent.
Enable dynamic IPv4 source guard on VLAN-interface 100 to filter received packets based on the DHCP
relay entry generated on the switch.

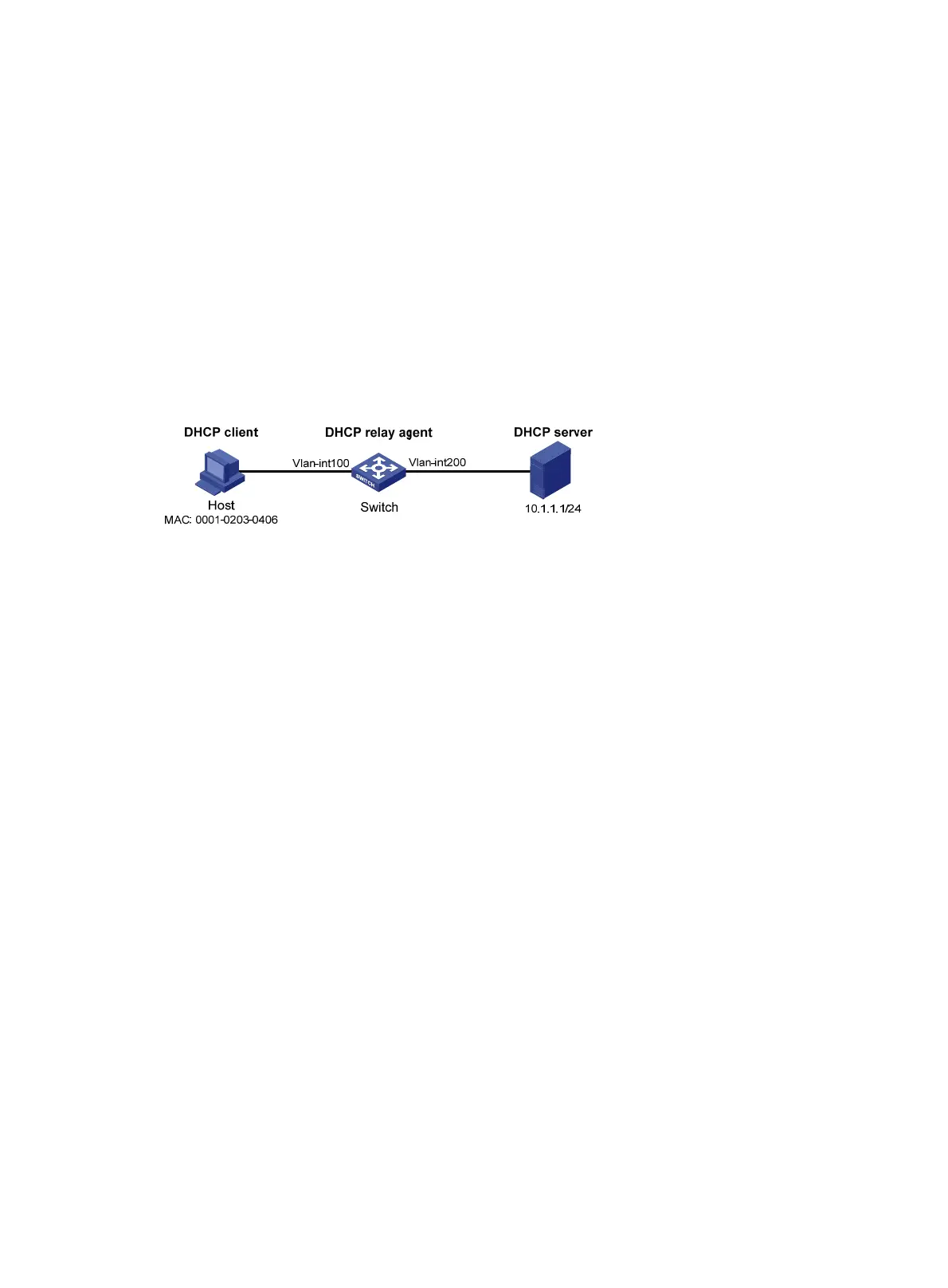

Figure 107 Network diagram
Configuration procedure
1. Configure dynamic IPv4 source guard:
# Configure IP addresses for the interfaces. (Details not shown.)
# Enable IPv4 source guard on VLAN-interface 100 and verify the source IP address and MAC
address for dynamic IP source guard.
<Switch> system-view
[Switch] interface vlan-interface 100
[Switch-Vlan-interface100] ip verify source ip-address mac-address
[Switch-Vlan-interface100] quit
2. Configure the DHCP relay agent:
# Enable the DHCP service.
[Switch] dhcp enable
# Enable recording DHCP relay client entries.
[Switch] dhcp relay client-information record
# Configure VLAN-interface 100 to operate in DHCP relay mode.
[Switch] interface vlan-interface 100
[Switch-Vlan-interface100] dhcp select relay
# Specify the IP address of the DHCP server.
[Switch-Vlan-interface100] dhcp relay server-address 10.1.1.1
[Switch-Vlan-interface100] quit
Verifying the configuration
# Display dynamic IPv4 source guard binding entries.
[Switch] display ip source binding dhcp-relay
Total entries found: 1
IP Address MAC Address Interface VLAN Type
