142

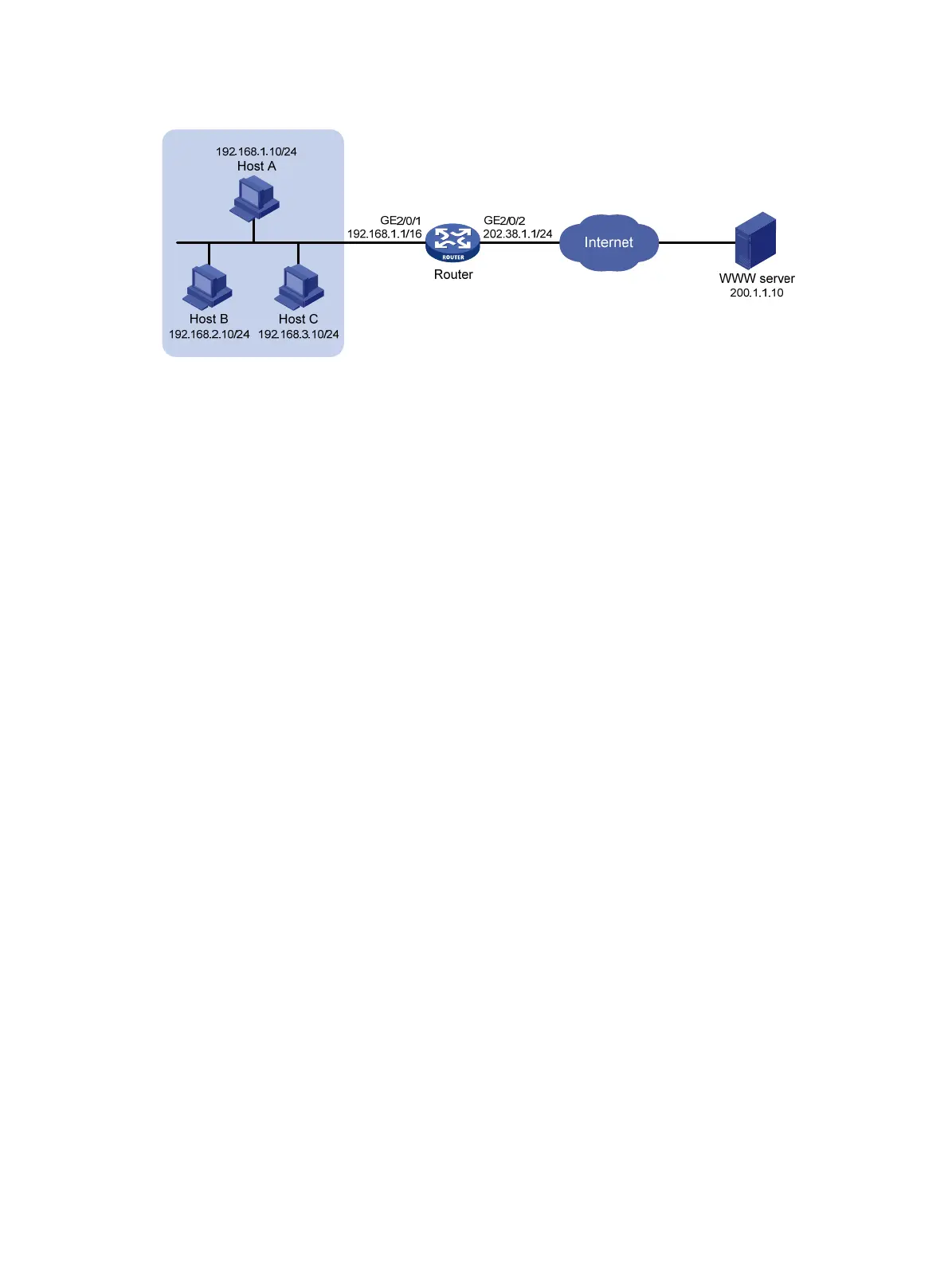

Figure 64 Network diagram

Configuration procedure

# Specify IP addresses for the interfaces on the router. (Details not shown.)

# Configure address group 0, and add an address range from 202.38.1.2 to 202.38.1.3 to the group.

<Router> system-view

[Router] nat address-group 0

[Router-address-group-0] address 202.38.1.2 202.38.1.3

[Router-address-group-0] quit

# Configure ACL 2000, and create a rule to permit packets only from subnet 192.168.1.0/24 to pass

through.

[Router] acl basic 2000

[Router-acl-ipv4-basic-2000] rule permit source 192.168.1.0 0.0.0.255

[Router-acl-ipv4-basic-2000] quit

# Enable outbound dynamic PAT on interface GigabitEthernet 2/0/2. The source IP addresses of the

packets permitted by the ACL rule is translated into the addresses in address group 0.

[Router] interface gigabitethernet 2/0/2

[Router-GigabitEthernet2/0/2] nat outbound 2000 address-group 0

[Router-GigabitEthernet2/0/2] quit

Verifying the configuration

# Verify that Host A can access the WWW server, while Host B cannot. (Details not shown.)

# Display all NAT configuration and statistics.

[Router] display nat all

NAT address group information:

Totally 1 NAT address groups.

Address group 0:

Port range: 1-65535

Address information:

Start address End address

202.38.1.2 202.38.1.3

NAT outbound information:

Totally 1 NAT outbound rules.

Interface: GigabitEthernet2/0/2

ACL: 2000 Address group: 0 Port-preserved: N

NO-PAT: N Reversible: N
