372

round-trip min/avg/max/std-dev = 0.000/1.000/4.000/1.549 ms

IPv6 hub-spoke ADVPN configuration example

Network requirements

As shown in Figure 149, the primary and secondary VAM servers manage and maintain VAM client

information for all hubs and spokes. The AAA server performs authentication and accounting for

VAM clients. The two hubs back up each other, and perform data forwarding and route exchange.

Establish a permanent ADVPN tunnel between each spoke and each hub.

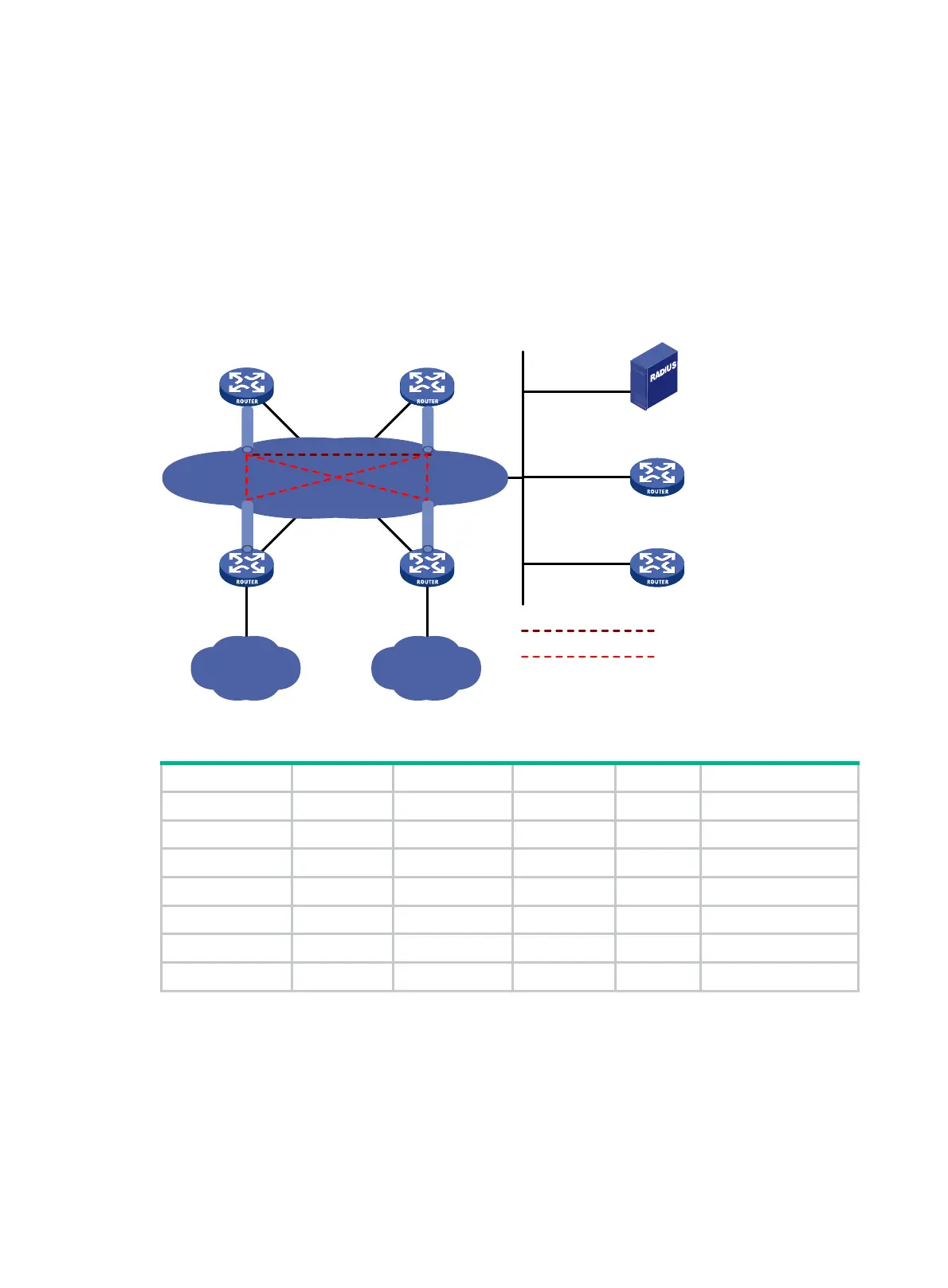

Figure 149 Network diagram

Table 15 Interface and IP address assignment

Device Interface IP address Device Interface IP address

Hub 1 GE2/0/1 1::1/64 Spoke 1 GE2/0/1 1::3/64

Tunnel1 192:168::1/64 GE2/0/2 192:168:1::1/64

Hub 2 GE2/0/1 1::2/64 Tunnel1 192:168::3/64

Tunnel1 192:168::2/64 Spoke 2 GE2/0/1 1::4/64

AAA server 1::10/64 GE2/0/2 192:168:2::1/64

Primary server GE2/0/1 1::11/64 Tunnel1 192:168::4/64

Secondary server GE2/0/1 1::12/64

Configuring the primary VAM server

1. Configure IP addresses for the interfaces. (Details not shown.)

2. Configure AAA:

# Configure RADIUS scheme abc.

<PrimaryServer> system-view

[PrimaryServer] radius scheme abc

[PrimaryServer-radius-abc] primary authentication ipv6 1::10 1812

IP network

Spoke1

Spoke2

Site 1

Site 2

Hub1 Hub2

Tunnel1

Tunnel1 Tunnel1

Primary server

Secondary server

AAA server

GE2/0/1

GE2/0/2 GE2/0/2

Hub-to-Hub static tunnel

Hub-to-Spoke static tunnel
