Configuring the switch 207
The following table describes the Access Control List Group configuration controls:
Table 174 ACL Group Configuration controls
Control Description
Group ID (1-762) Assigns a numeric identifier to the ACL Group.
ACLs Available Lists the ACLs that you can add to the ACL Group.
ACLs in Group Lists the ACLs that belong to the ACL Group.
Select an ACL number in the ACLs Available list, and click Add to add the ACL to the ACL
Group.
Select an ACL number in the ACLs in Group list, and click Remove to remove the ACL from
the ACL Group.
Uplink Failure Detection Configuration

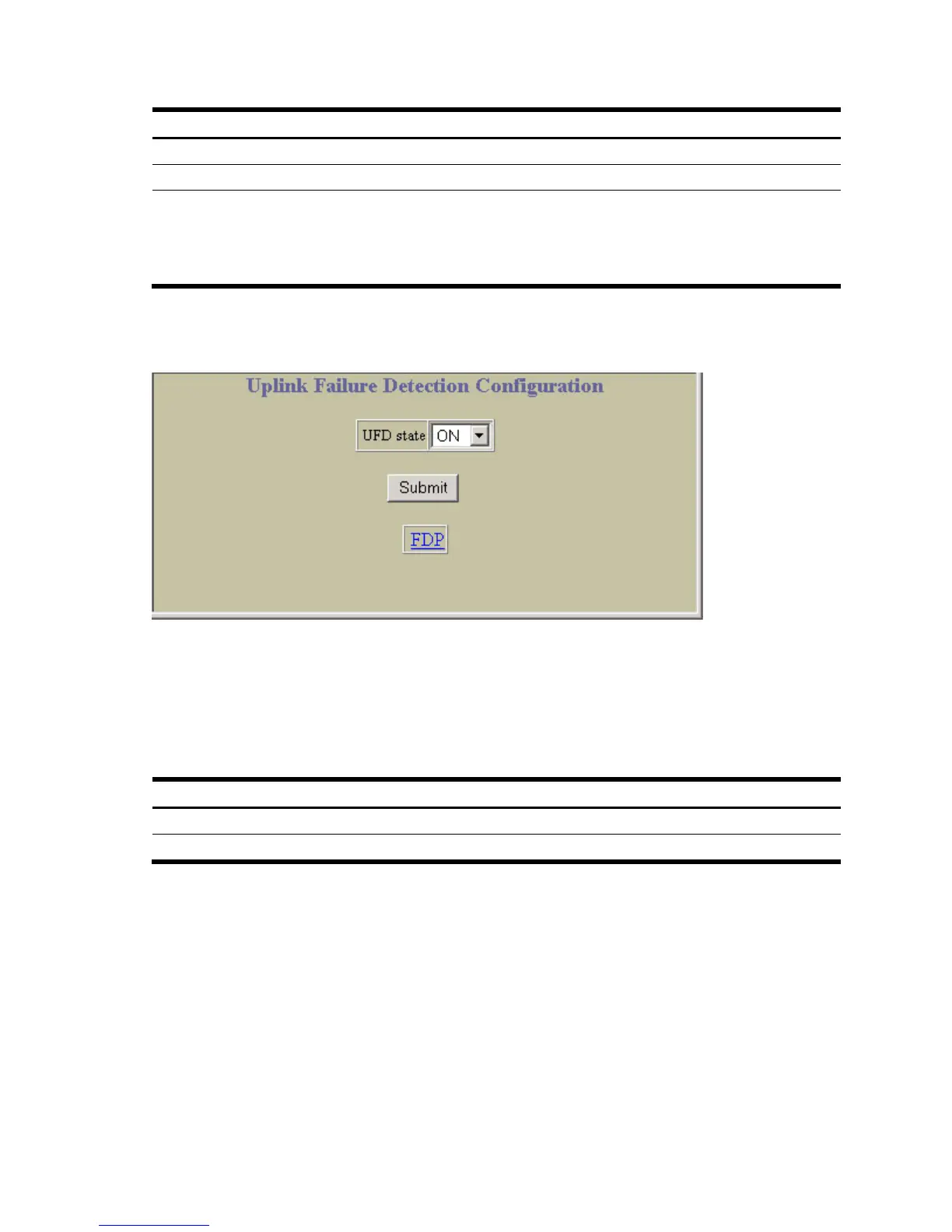

To display the following form, select Uplink Failure Detection (click the underlined text, not the folder).
Uplink Failure Detection (UFD) supports network fault tolerance in network adapter teams. Use this menu to
configure a Failure Detection Pair of one Links to Monitor (LtM) group and one Links to Disable (LtD) group.
When UFD is enabled and a Failover Pair is configured, the switch automatically disables ports in the LtD if it
detects a failure in the LtM. The failure conditions which are monitored in the LtM group include port link
state moving to down, or port state moving to Blocking if Spanning Tree Protocol is enabled.
The following table describes the Uplink Failure Detection (UFD) configuration controls:
Table 175 Uplink Failure Detection Configuration controls
Control Description
UFD state Globally turns UFD on or off.
FDP Displays the Failure Detection Pair Configuration form.
