Switch Ports Dashboard

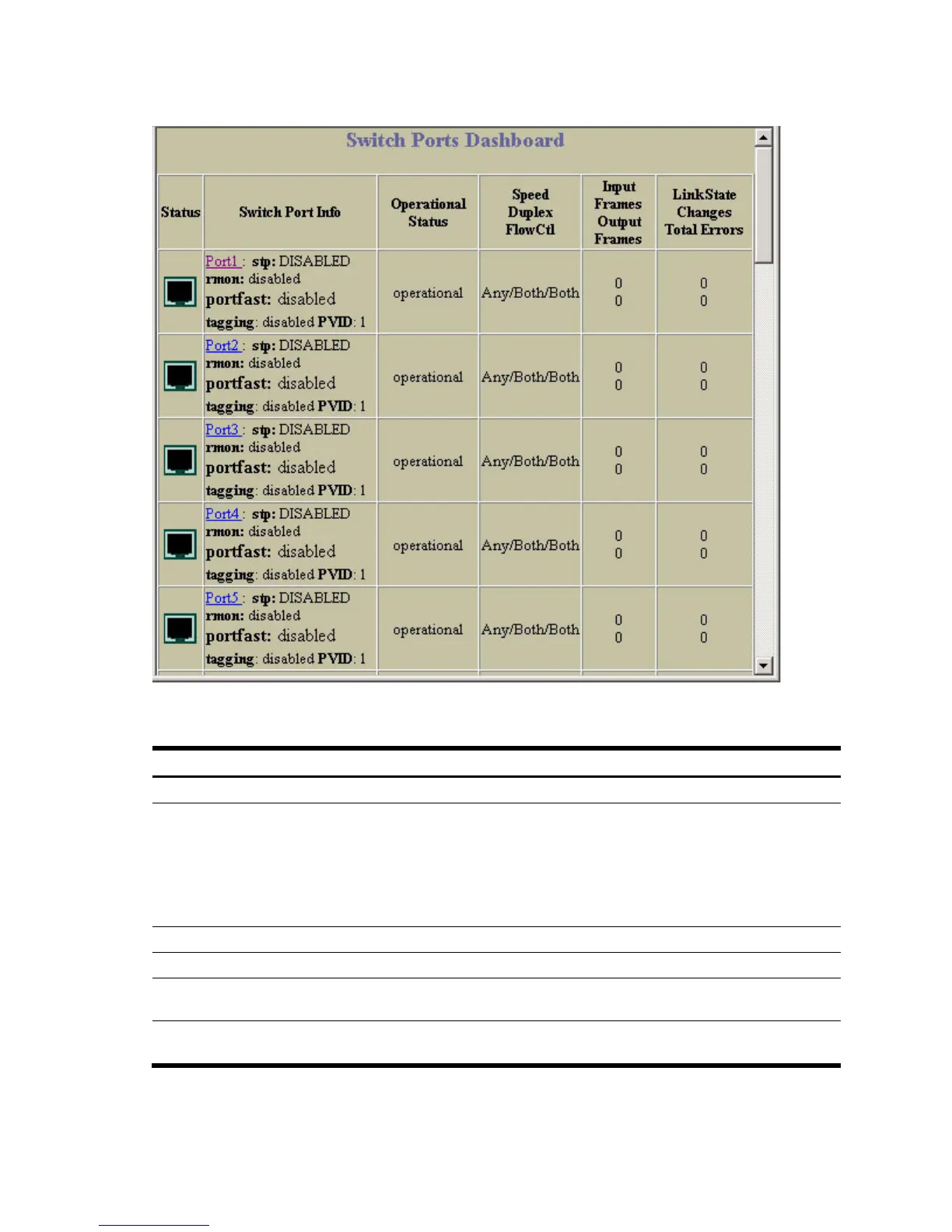

To display the following form, select Switch Ports (click the underlined text, not the folder).
The following table describes the Switch Ports Dashboard controls:
Table 9 Switch Ports Dashboard controls
Control Description
Status Shows if the port is enabled (green) or disabled (black).
Switch Port Info Summarizes the following port information:
STP: Shows if the port has Spanning Tree Protocol enabled or disabled.
rmon
: Shows if RMON is enabled or disabled.
portfast: Shows if Port Fast Forwarding is enabled or disabled.
tagging
: Shows if this port has VLAN Tagging enabled or disabled.
PVID
: VLAN ID of any VLAN(s) to which this port is a member.
Operational Status Displays the operational status of the port.
Speed/Duplex/Flow Ctl Displays parameters for the port link.
Input Frames/Output Frames Displays the number of frames that have been received by this port (Input Frames) and
the number of frames that have been transmitted by this port (Output Frames).
Link State Changes/Total Errors Displays the total number of link state changes for this port and the total number of
errors logged by this port.
For more information, select a port number to display detailed statistics for that port.
