Configuring IP Addressing
IP Configuration
1. Go to VLAN 20.
2. Configure two additional
IP addresses on VLAN
20.
3. Display IP addressing.

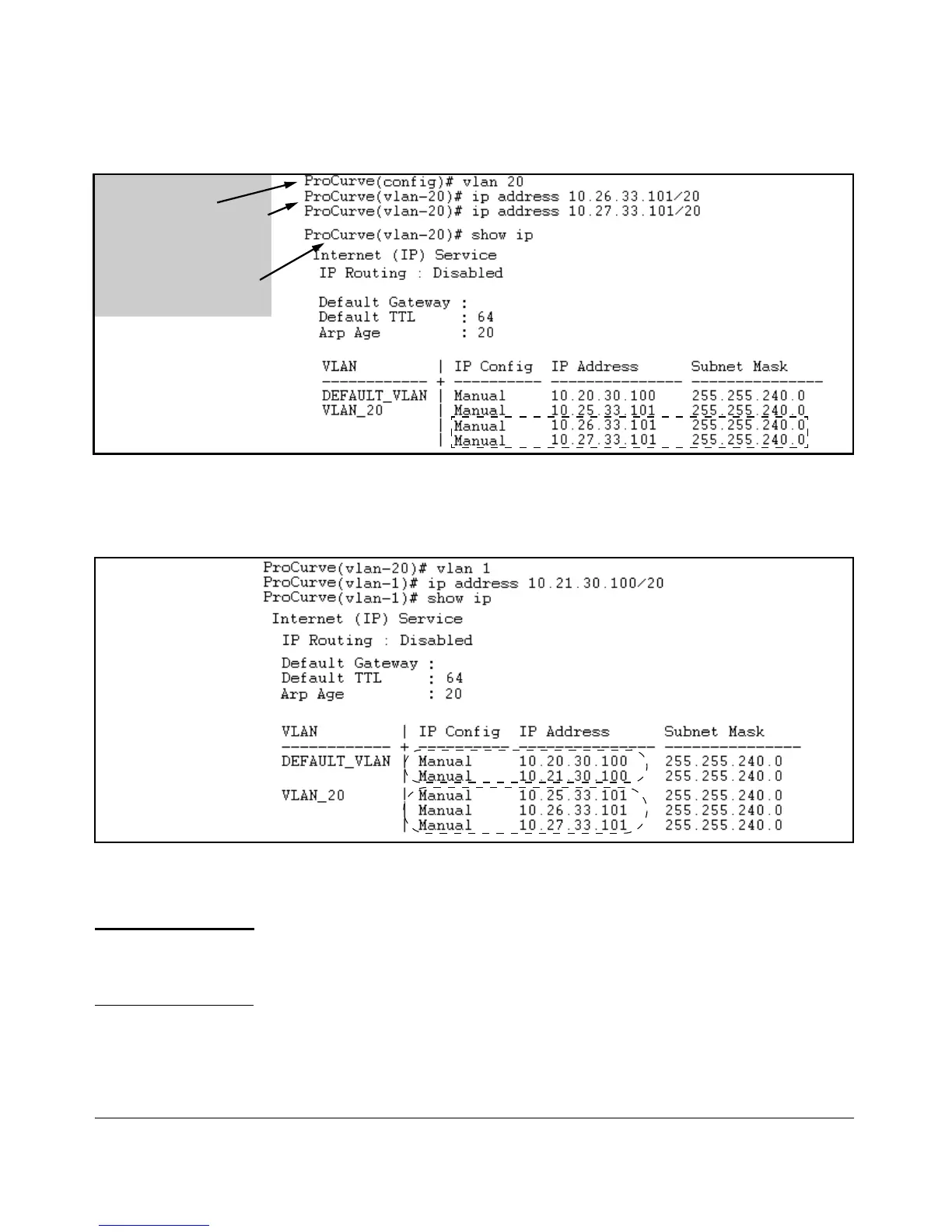

Figure 8-4. Example of Configuring and Displaying a Multinetted VLAN
If you then wanted to multinet the default VLAN, you would do the following:
Figure 8-5. Example of Multinetting on the Default VLAN
Note The Internet (IP) Service screen in the Menu interface (figure 8-1 on page 8-5)
displays the first IP address for each VLAN. You must use the CLI show ip
command to display the full IP address listing for multinetted VLANs.
8-9
