HP ProCurve 6120G/XG Configuration Guide

Using the ProCurve Web Browser Interface
Status Reporting Features
Status Reporting Features
Browser elements covered in this section include:
■ The Overview window (below)
■ Port utilization and status (page 5-18)
■ The Alert log (page 5-21)
■ The Status bar (page 5-23)
The Overview Window
The Overview Window is the home screen for any entry into the web browser
interface.The following figure identifies the various parts of the screen.
Alert Log
Control Bar
Port Utiliza-
tion Graphs
(
page 5-18)
Alert Log
(
page 5-21)
Port Status
Indicators
(
page 5-20)
Button Bar
Tab Bar
Status Bar
(
page 5-23)
Active Tab
Active Button

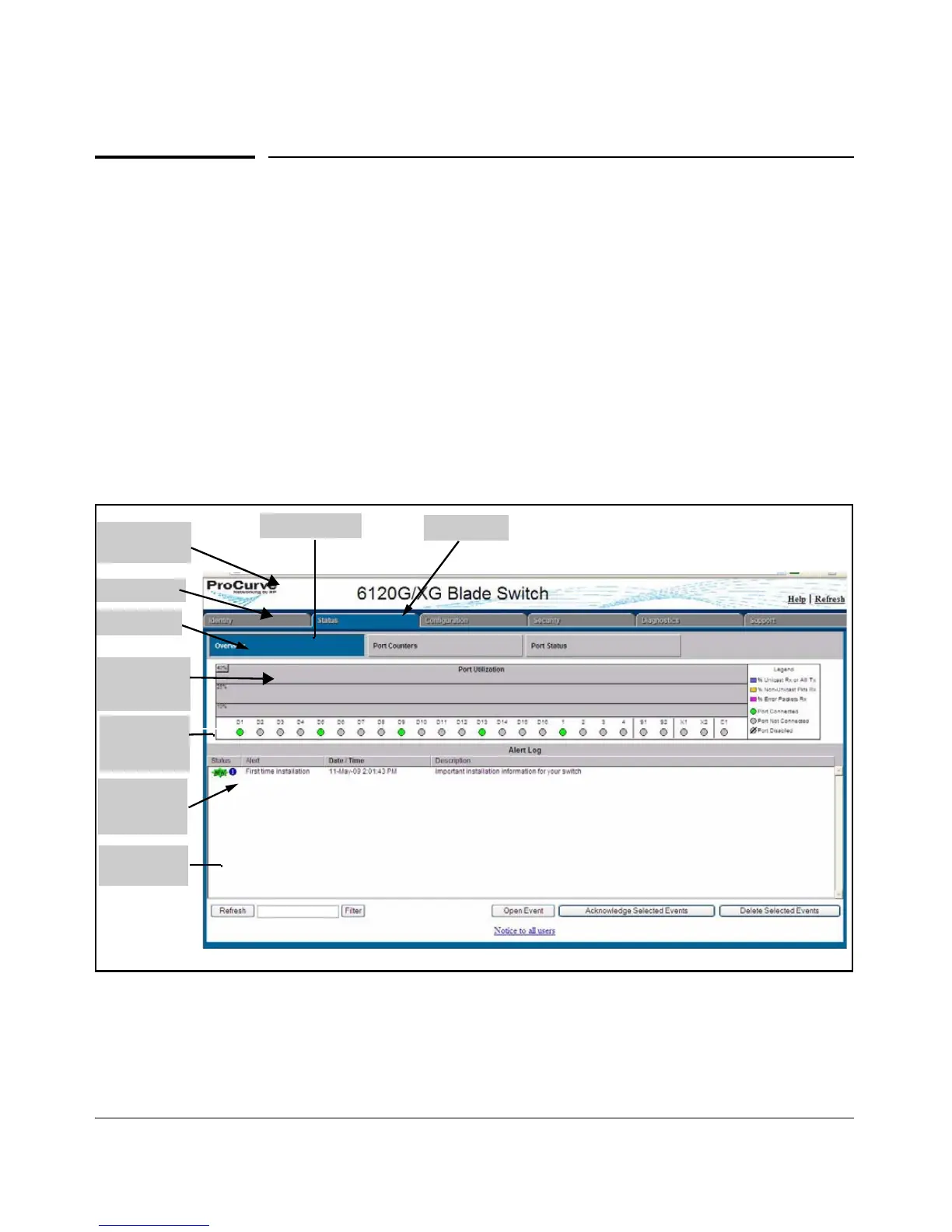

Figure 5-8. The Status Overview Window
