Monitoring and Analyzing Switch Operation
Status and Counters Data
â– The MAC addresses that the switch has learned from network devices
attached to the switch
â– The port on which each MAC address was learned
1. From the Main Menu, select:
1. Status and Counters
5. VLAN Address Table
2. The switch then prompts you to select a VLAN.
3. Use the Space bar to select the VLAN you want, then press [Enter]. The
switch then displays the MAC address table for that VLAN:

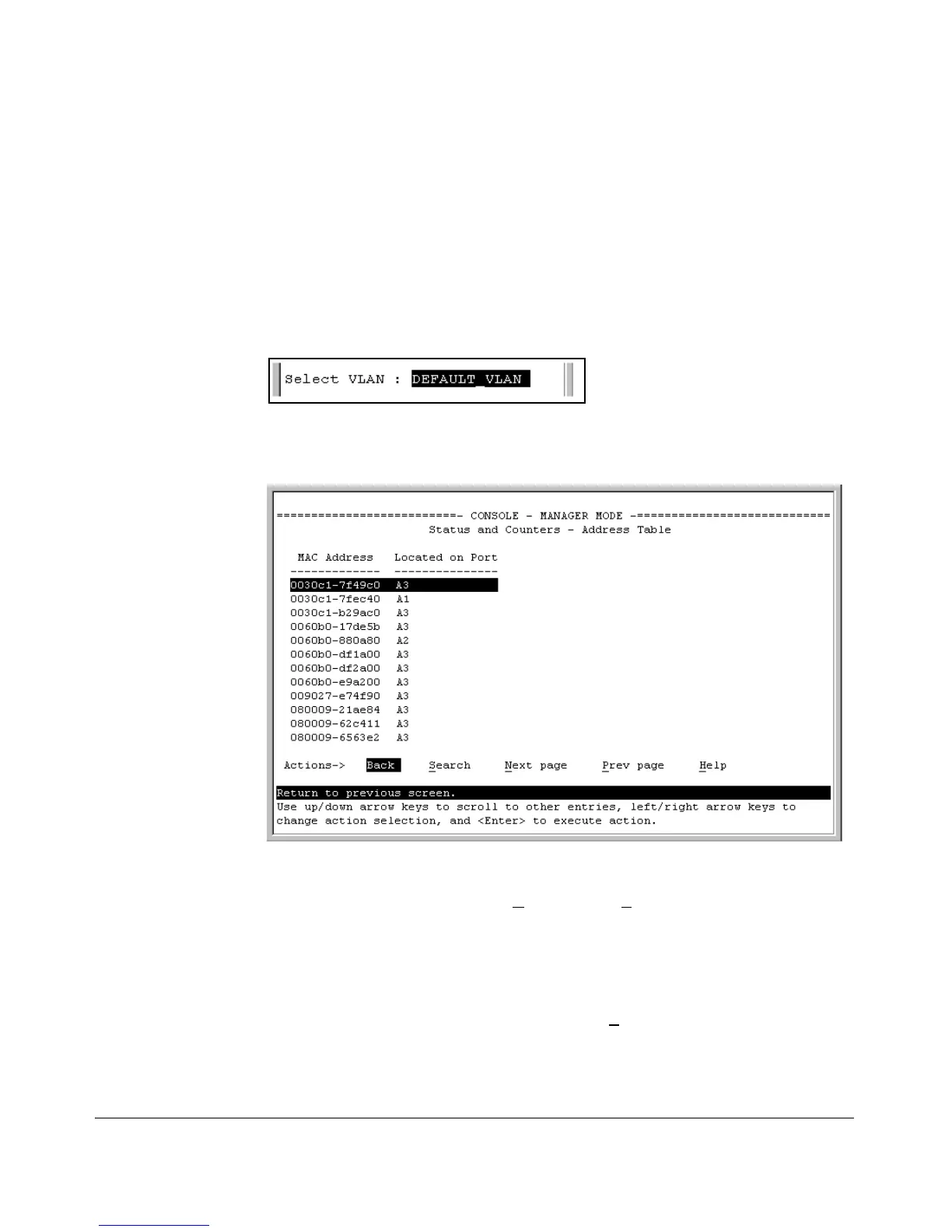

Figure B-9. Example of the Address Table
To page through the listing, use Next page and Prev page.
Finding the Port Connection for a Specific Device on a VLAN. This
feature uses a device’s MAC address that you enter to identify the port used
by that device.
1. Proceeding from figure B-9, press
[S] (for Search), to display the following
prompt:
Enter MAC address: _
B-14
