HP StorageWorks MSL2024 User Manual

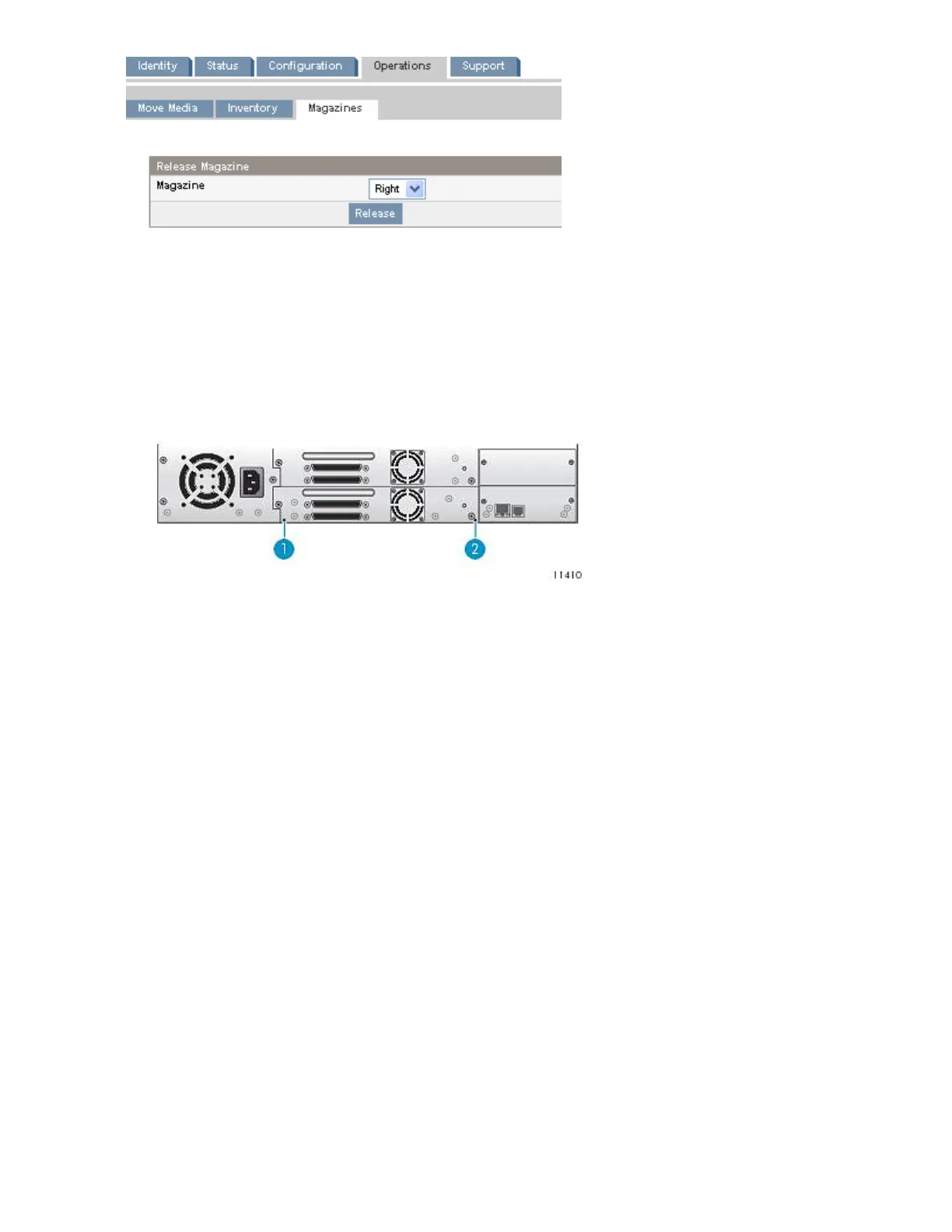

Figure 112 Operations: Magazines page
.
Using the manual magazine release
1. From the back of the Library determine which magazine needs to be removed using Figure 113.
The magazines are released from the magazine release holes on the bottom tape drive plate.
For the MSL4048, MSL8048, and MSL8096, the Library will release all magazines on a side at
the same time.
Figure 113 Manual magazine release holes
.
Right magazine release1.
Left magazine release2.
Upgrading and servicing the Tape Library226

HP StorageWorks MSL2024 Specifications

General

Number of Slots	24
Number of Drives	1 or 2
Tape Technology	LTO Ultrium
Drive Bays	1 or 2
Interface	SCSI, SAS
Drive Type	LTO-3, LTO-4
Supported Drives	LTO-3, LTO-4
Operating System Support	Windows, Linux, HP-UX, Solaris, AIX
Dimensions	8.9 x 48.0 x 44.8 cm
