HP StorageWorks MSL2024 User Manual

3. From the front of the device, secure the front bezel to the rack using a #2 Phillips screw driver
placed through the small holes in the mounting bracket to tighten the captive screws on each side
of the device.

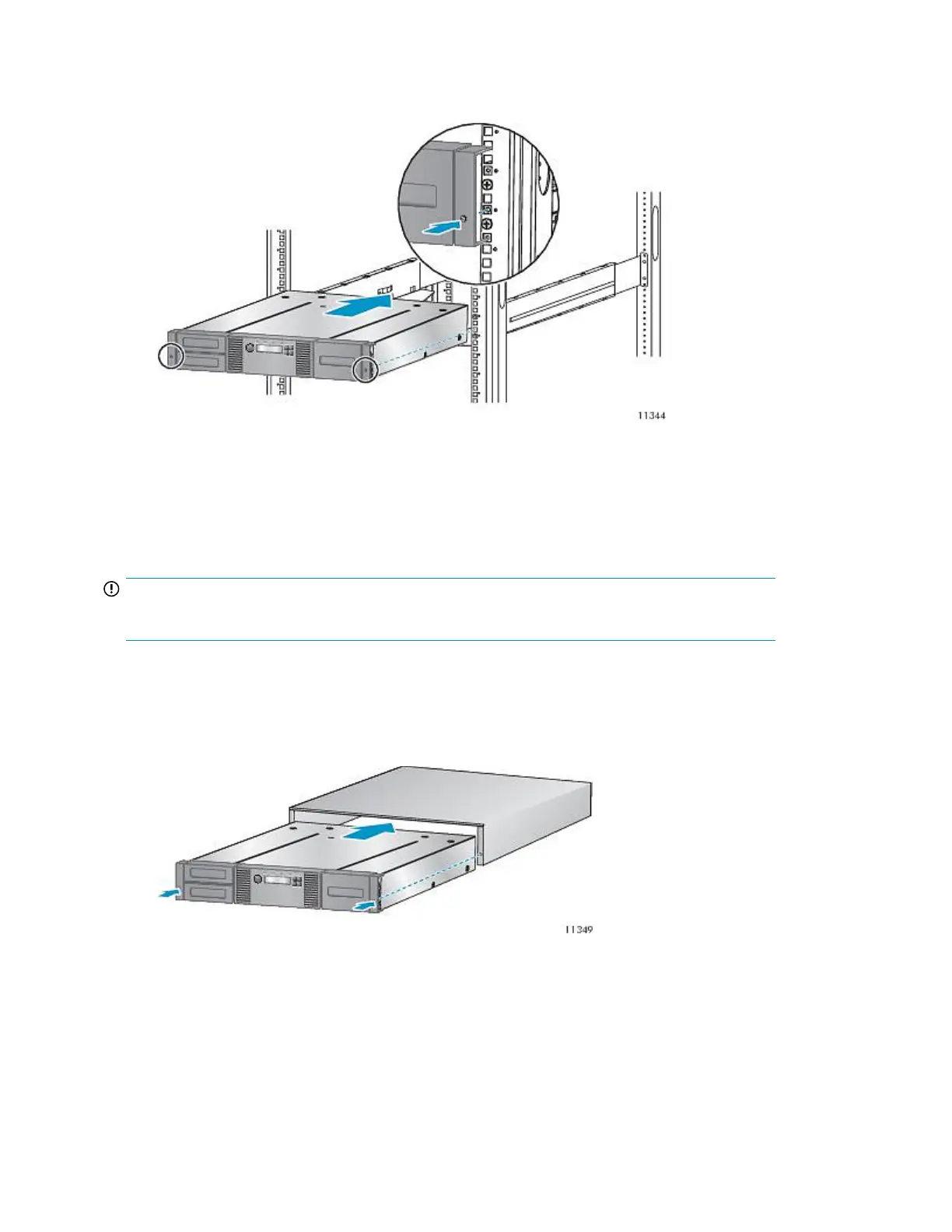

Figure 22 Securing the Tape Library to the rack
.
Installing the Tabletop Conversion Kit
The Rack to Tabletop Conversion Kit supports the edges of the Library, but is not a structural top.
IMPORTANT:
You may not place any weight on top of the Tape Library, even with the cover installed.
To install the cover:
1. Place the cover on a flat, level surface behind the device.
2. Slide the device into the cover until the front panel of the device is aligned with the cover (see
Figure 23).
Figure 23 Installing the tabletop conversion cover
.
3. Tighten the captive screws on the front panel until the cover is secure.
Installing the Tape Library48

HP StorageWorks MSL2024 Specifications

General

Number of Slots	24
Number of Drives	1 or 2
Tape Technology	LTO Ultrium
Drive Bays	1 or 2
Interface	SCSI, SAS
Drive Type	LTO-3, LTO-4
Supported Drives	LTO-3, LTO-4
Operating System Support	Windows, Linux, HP-UX, Solaris, AIX
Dimensions	8.9 x 48.0 x 44.8 cm
