HPE FlexFabric 5700 Series User Manual

175

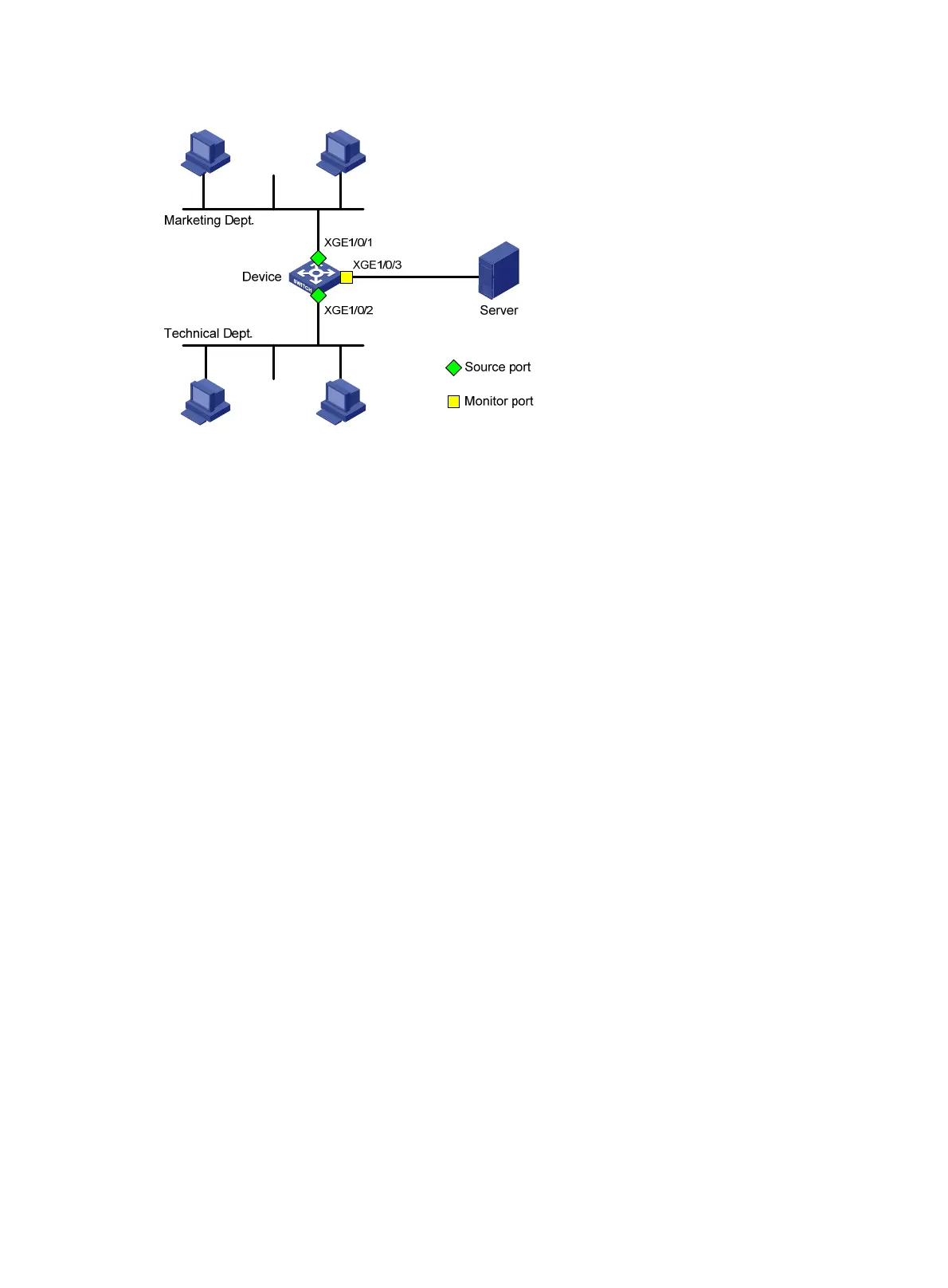

Figure 60 Network diagram
Configuration procedure
# Create local mirroring group 1.
<Device> system-view
[Device] mirroring-group 1 local
# Configure Ten-GigabitEthernet 1/0/1 and Ten-GigabitEthernet 1/0/2 as source ports for local
mirroring group 1.
[Device] mirroring-group 1 mirroring-port ten-gigabitethernet 1/0/1 ten-gigabitethernet
1/0/2 both
# Configure Ten-GigabitEthernet 1/0/3 as the monitor port for local mirroring group 1.
[Device] mirroring-group 1 monitor-port ten-gigabitethernet 1/0/3
# Disable the spanning tree feature on the monitor port Ten-GigabitEthernet 1/0/3.
[Device] interface ten-gigabitethernet 1/0/3
[Device-Ten-GigabitEthernet1/0/3] undo stp enable
[Device-Ten-GigabitEthernet1/0/3] quit
Verifying the configuration
# Display information about all mirroring groups.
[Device] display mirroring-group all
Mirroring group 1:
Type: Local
Status: Active
Mirroring port:
Ten-GigabitEthernet1/0/1 Both
Ten-GigabitEthernet1/0/2 Both
Monitor port: Ten-GigabitEthernet1/0/3
The output shows that you can monitor all packets received and sent by the Marketing department
and the Technical department on the server.

HPE FlexFabric 5700 Series Specifications

General

Product Line	HPE FlexFabric
Model	5700 Series
Power Supply	Redundant power supply options
Layer Support	Layer 2/3
Management	HPE Intelligent Management Center (IMC), CLI, SNMP
Routing Protocol	RIP, OSPF, BGP, IS-IS
Features	Virtualization
Compliant Standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1w, IEEE 802.1s, IEEE 802.3ad, IEEE 802.3ae
Operating Temperature	32°F to 113°F (0°C to 45°C)
Operating Humidity	10% to 90% (noncondensing)
Latency	Less than 1 µs
