Cable One End The Other End Remarks
Equipotential cable OT terminal (M6, 16
mm
2
[0.025 in.
2
])
OT terminal (M6, 16
mm
2
[0.025 in.
2
])
Green and yellow
Procedure
l Install the PGND cable when no AC surge protection box is installed, as shown in Figure
9-5.
1. Connect one end of the BTS3902E PGND terminal to the ground cable on the
BTS3902E and the other end to the external ground bar.

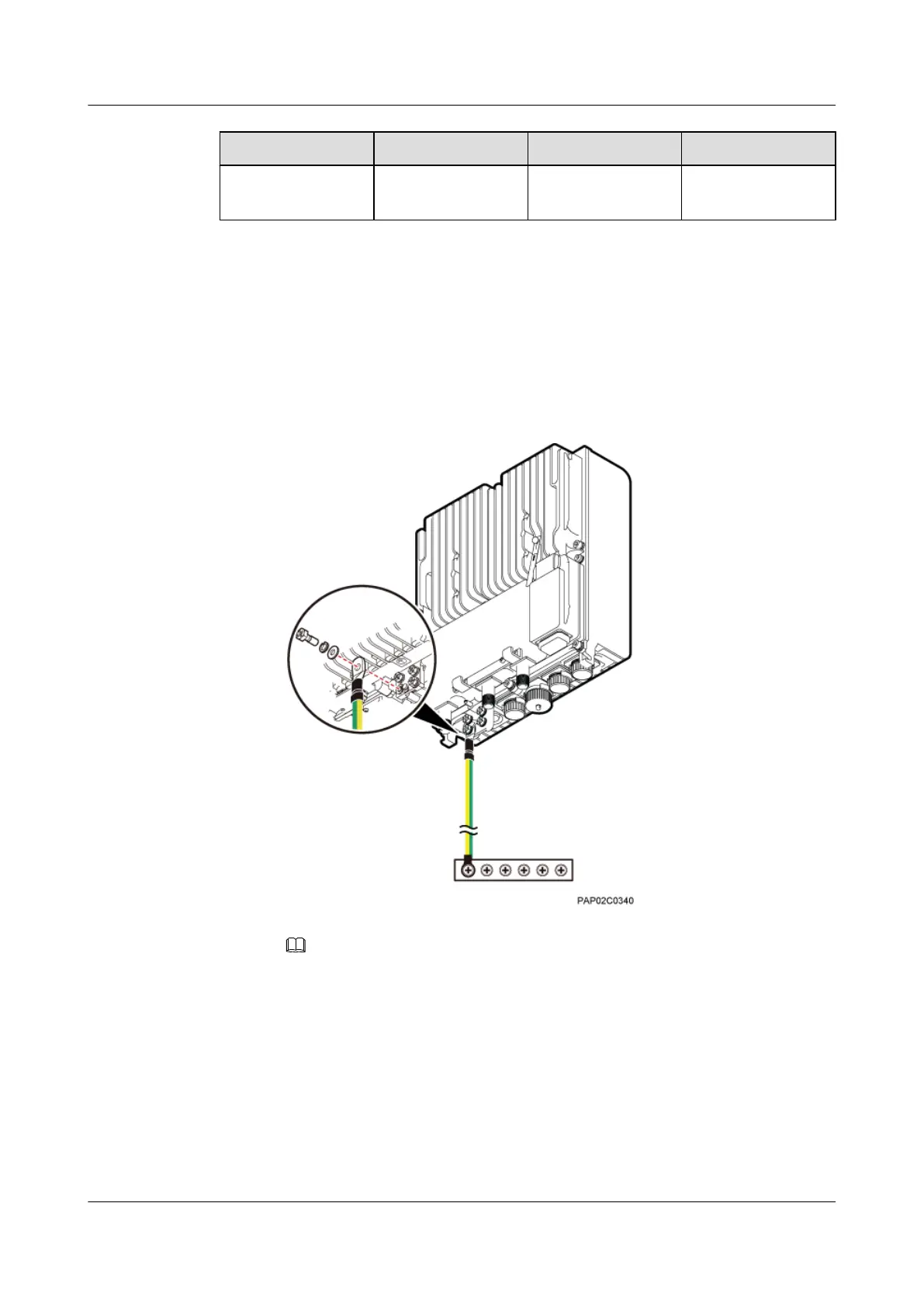

Figure 9-5 Installing the BTS3902E PGND cable
NOTE
When installing the PGND cable, tightly press the OT terminal in the correct direction, as
shown in Figure 9-6.
BTS3902E WCDMA
Installation Guide 9 Installing Cables
Issue Draft A (2011-06-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9-9
