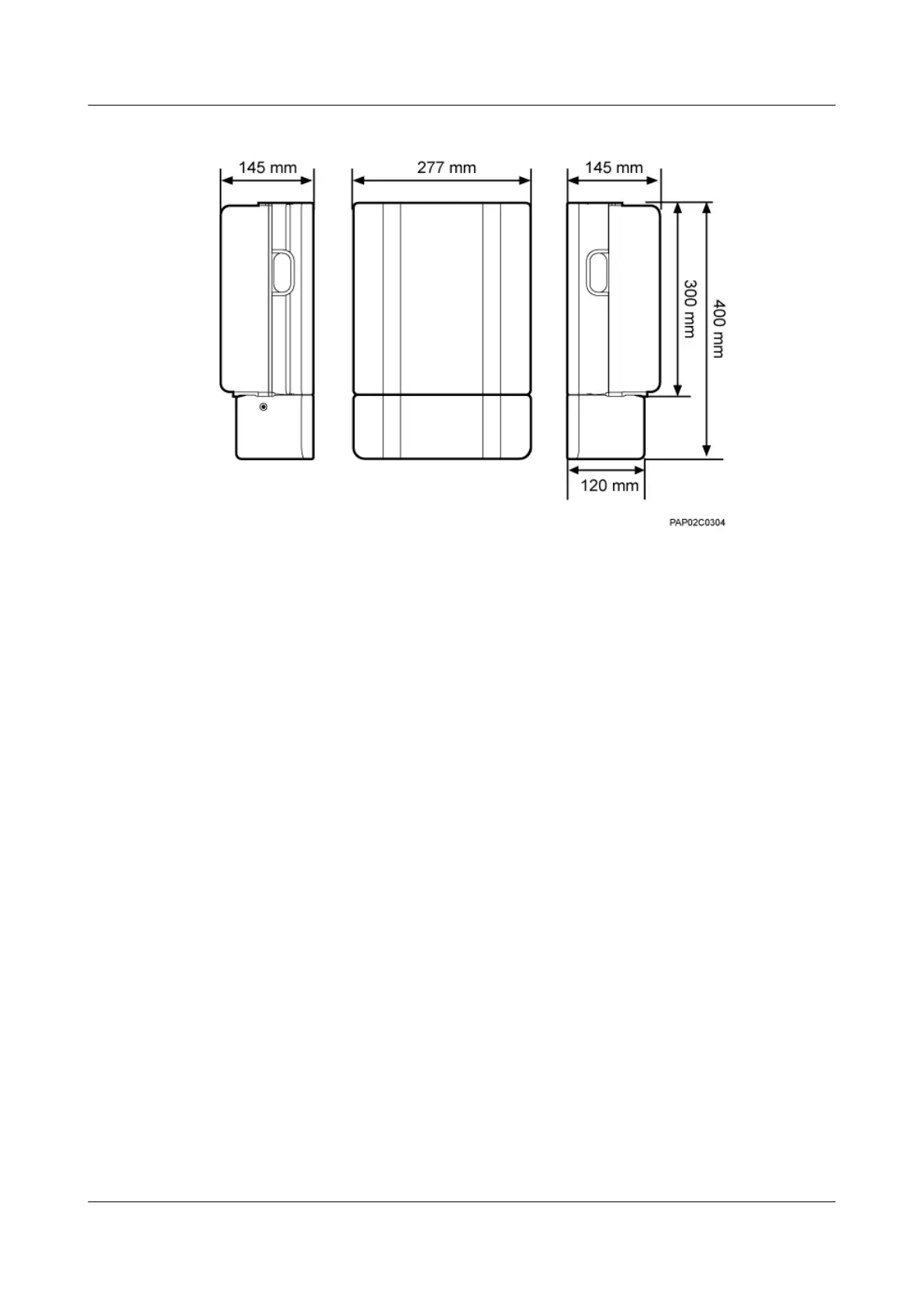

Figure 3-3 Dimensions of a BTS3902E with a housing and antennas
3.2 BTS3902E Ports
The BTS3902E ports are on the bottom, and the indicators are in the indicator on the front.
Figure 3-4 shows the positions of the BTS3902E ports and indicators.
BTS3902E WCDMA
Installation Guide 3 Information About the Installation
Issue Draft A (2011-06-30) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3-3
