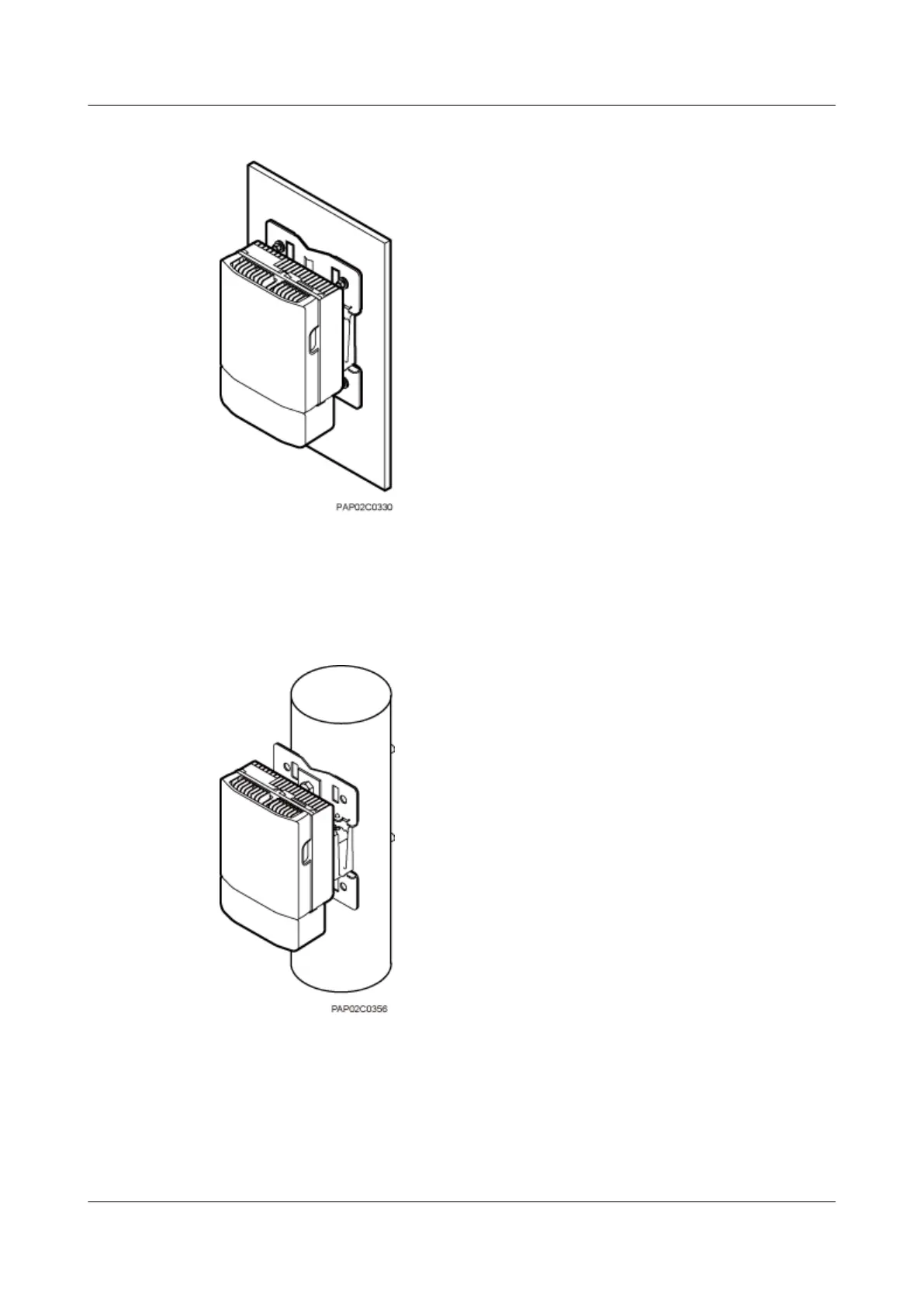

Figure 3-9 BTS3902E installed on a wall
Installing a BTS3902E on a Wood Pole
Figure 3-10 shows a BTS3902E installed on a wood pole.
Figure 3-10 BTS3902E installed on a wood pole
3.5 Installation Clearance Requirements
This section describes the clearance requirements for installing a BTS3902E on a pole, wall, or
wood pole.
Figure 3-11 shows the recommended installation clearance for a single BTS3902E.
