Huawei BTS3902E WCDMA - Figure 8-5 AC Surge Protection Box Installed on a Pole; Figure 8-6 Diameter of a Pole

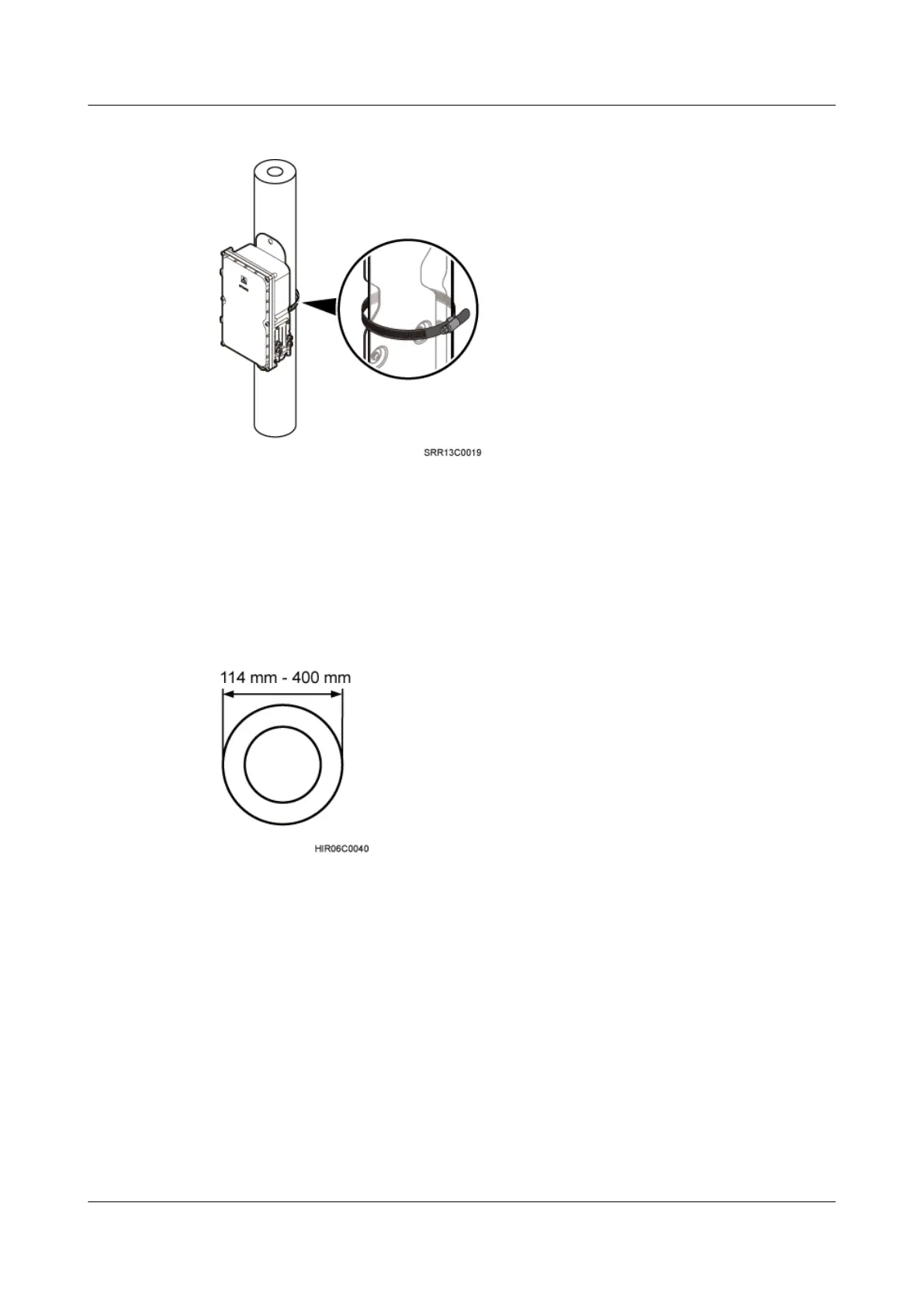

Figure 8-5 AC surge protection box installed on a pole
Installing an AC Surge Protection Box on a Pole with the Diameter of 114 mm to
400 mm (4.49 in. to 15.75 in.)
Figure 8-6 shows the diameter of a pole for installing an AC surge protection box.
Figure 8-6 Diameter of a pole
Figure 8-7 shows an AC surge protection box installed on a pole.
8 Installing an AC Surge Protection Box and Related Cables
