Huawei BTS3902E WCDMA - Figure 7-7 Installing the Adapting Plate Assembly

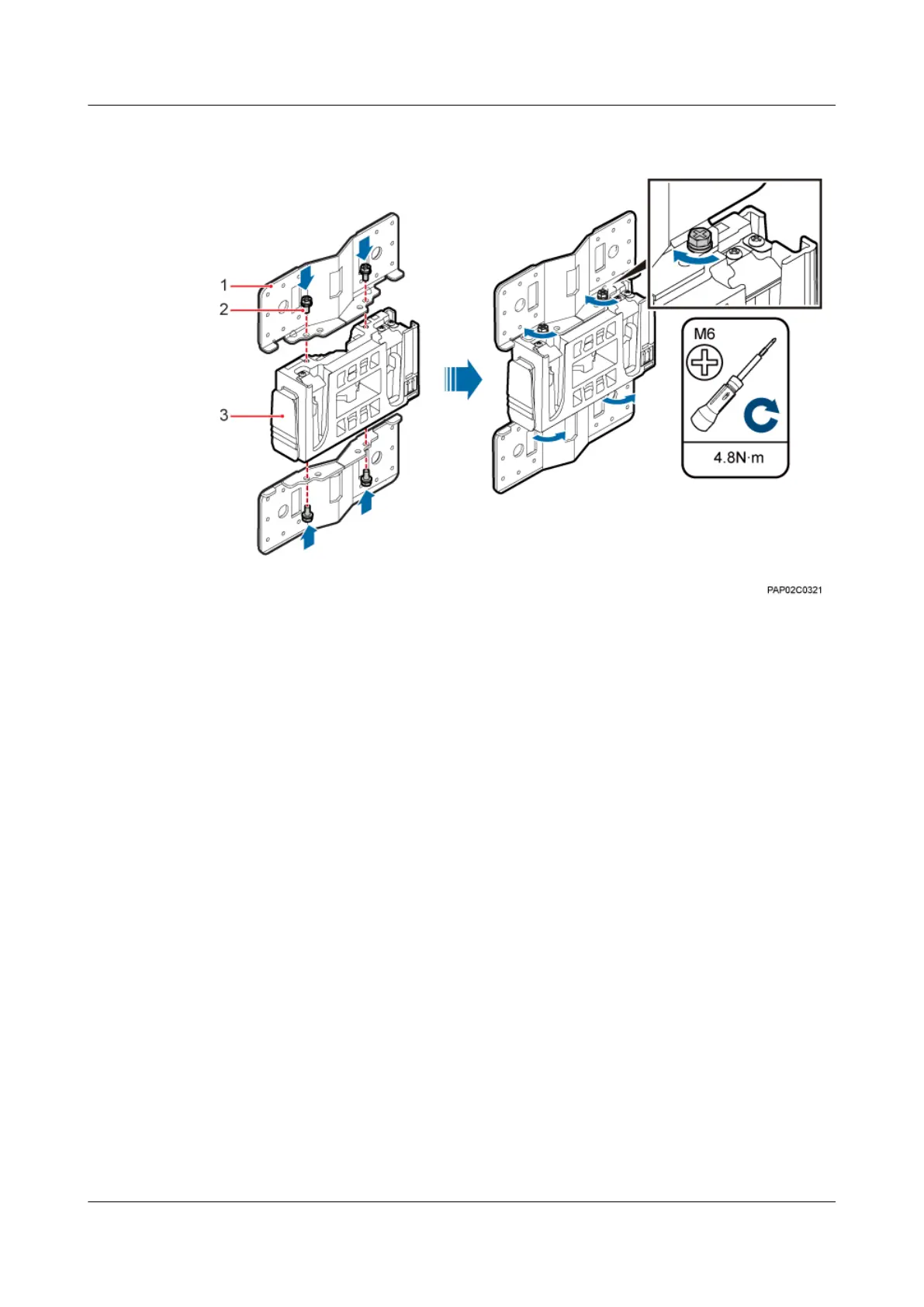

Figure 7-7 Installing the adapting plate assembly
(1) Adapting plate (2) Screw (3) Main mounting bracket
Step 2 Install two hose clamps through the mounting hole group B of the adapting plates, as shown in
Figure 7-8.
