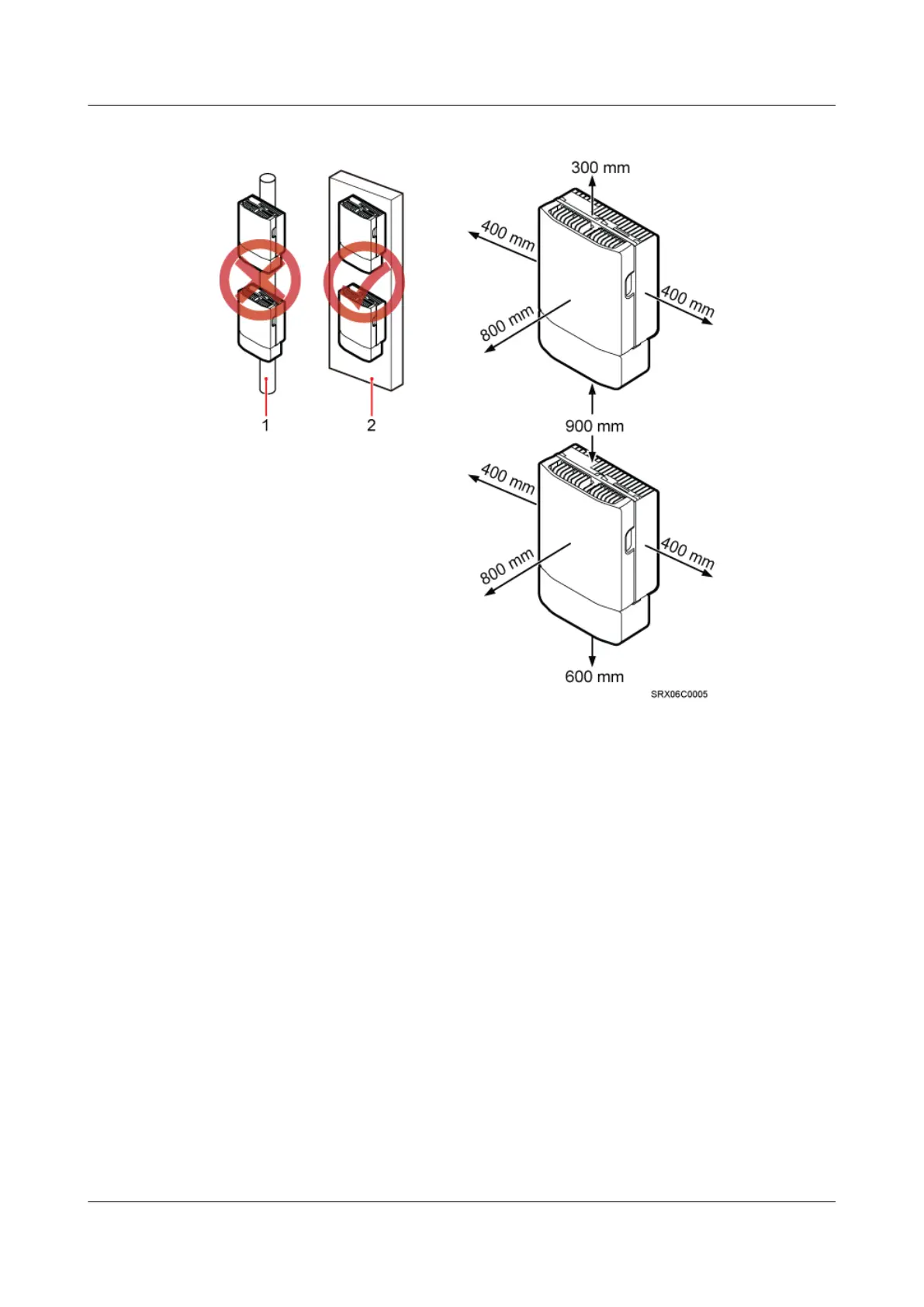

Figure 3-15 Recommended installation clearance for two BTS3902Es installed in a vertical line
(1) Pole (2) Wall
Figure 3-16 shows the minimum installation clearance for two BTS3902Es installed in a vertical
line.
