Huawei BTS3902E WCDMA - Figure 7-12 Marking the Anchor Points

NOTE
It is recommended that the BTS3902E be installed 8000 mm to 15000 mm (315 in. to 590.6 in.) above the floor.

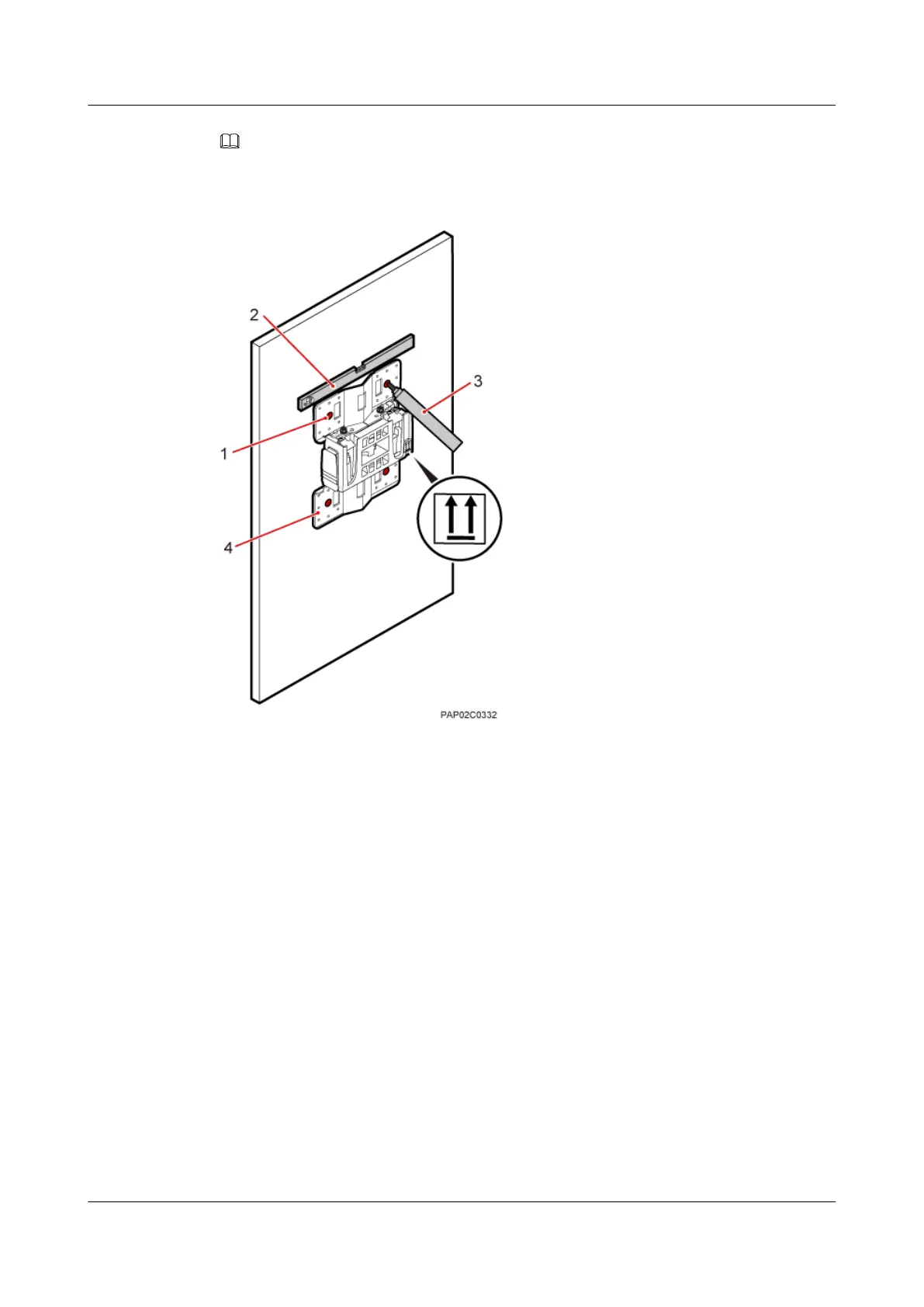

Figure 7-12 Marking the anchor points
(1) Mounting hole group A (2) Level (3) Marker (4) Adapting plate
Step 3 Drill holes at the anchor points, and then install expansion bolt assemblies, as shown in Figure
7-13.
