Huawei BTS3902E WCDMA - Figure 3-4 Positions of the BTS3902 E Ports and Indicators; Table 3-1 BTS3902 E Ports and Indicators

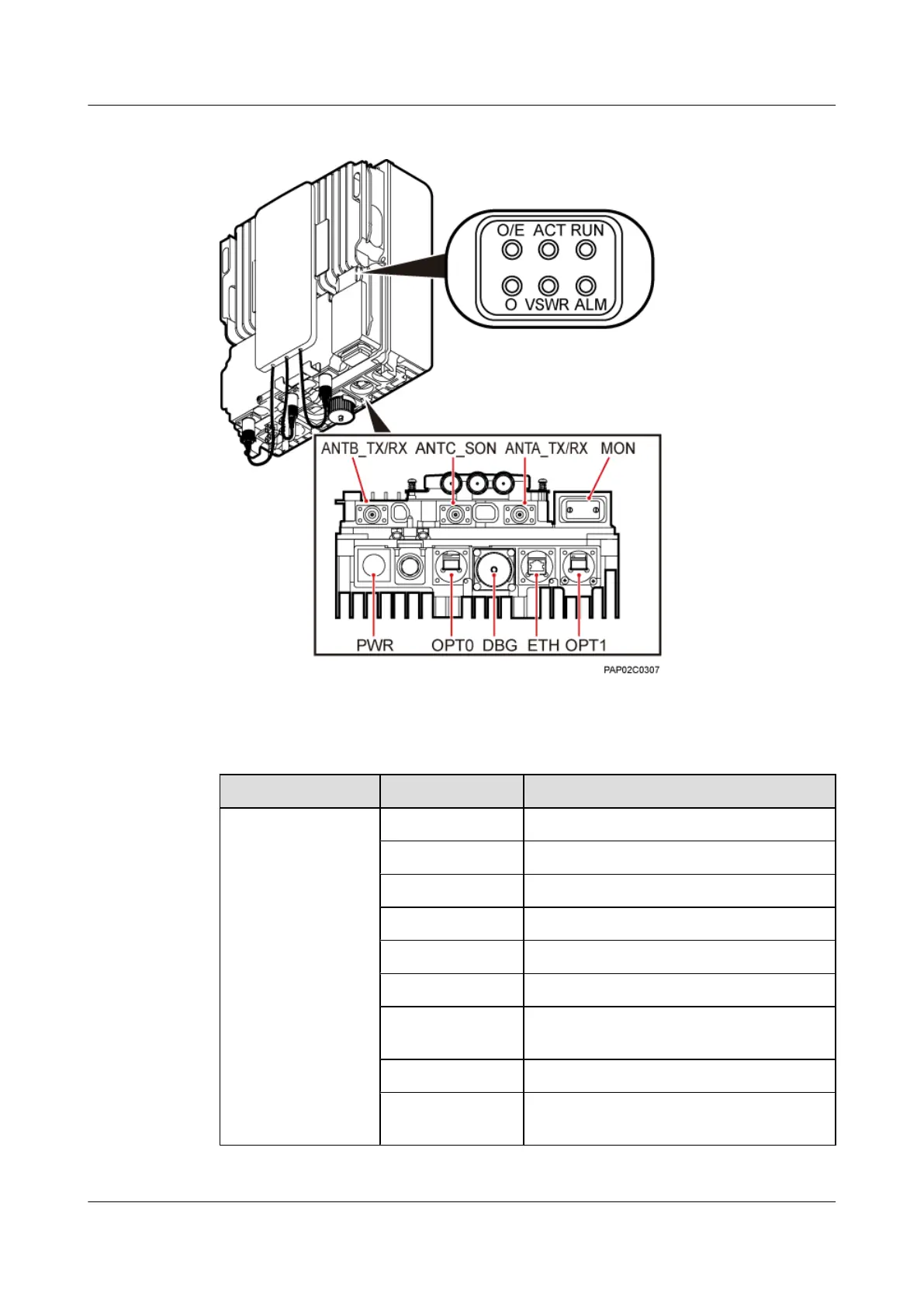

Figure 3-4 Positions of the BTS3902E ports and indicators
Table 3-1 describes the BTS3902E ports and indicators.
Table 3-1 BTS3902E ports and indicators
Item
Label Description
Ports ANTA_TX/RX TX/RX port A
ANTB_TX/RX TX/RX port B
ANTC_SON SON antenna port
ETH FE/GE electrical port
OPT0 FE/GE optical port
OPT1 FE/GE optical port
MON Environment monitoring port for an RS485
input and four dry contact inputs.
PWR Power supply port
DBG Port for commissioning, clock test, or
software upgrade
3 Information About the Installation
BTS3902E WCDMA
Installation Guide
3-4 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue Draft A (2011-06-30)
