Huawei BTS3902E WCDMA - Figure 7-8 Installing the Hose Clamps

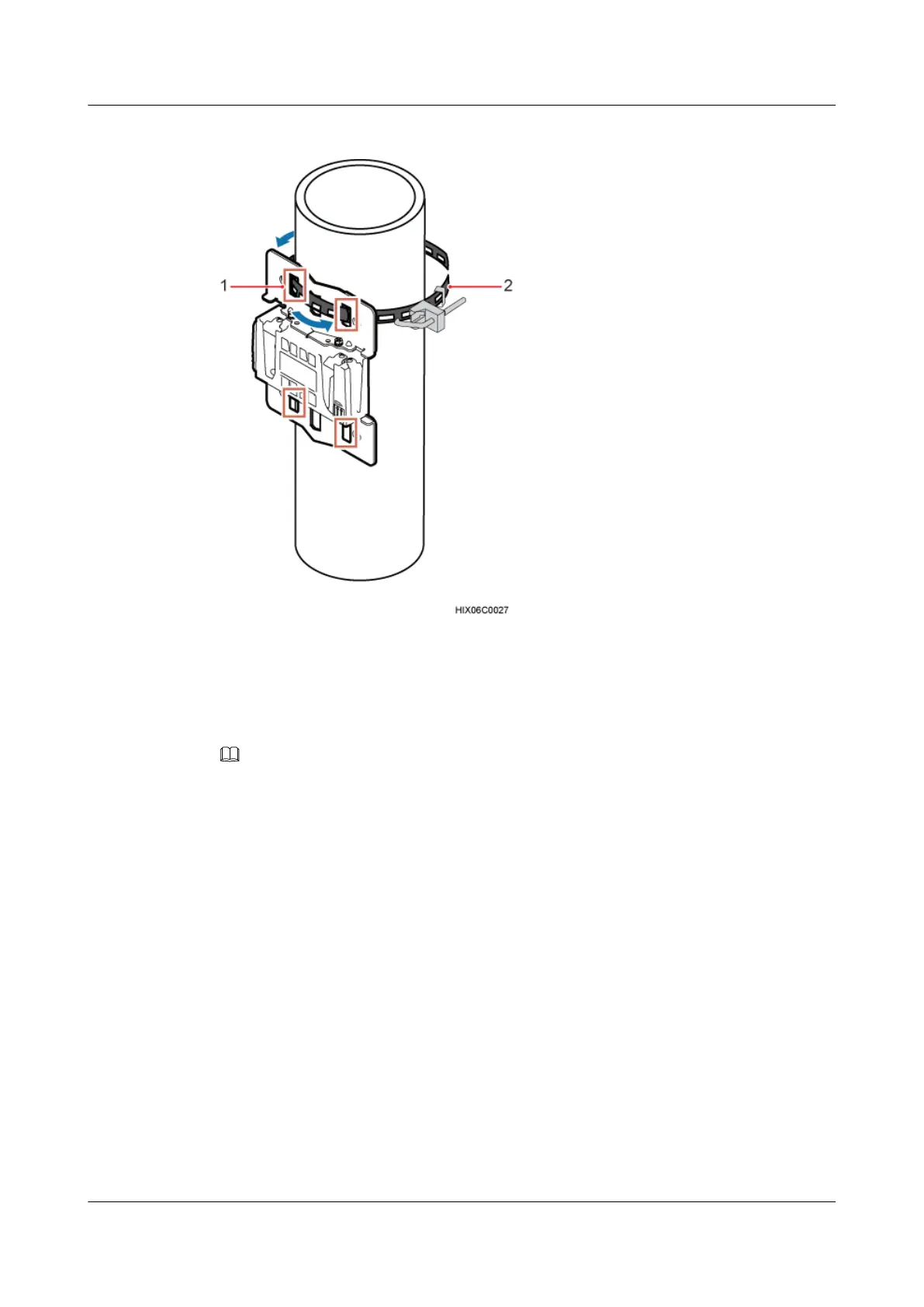

Figure 7-8 Installing the hose clamps
(1) Mounting hole group B (2) Hose clamp
Step 3 Install the securing piece, as shown in Figure 7-9.
1. Secure the hose clamp.
2. Use a level to check whether the adapting plate is on a horizontal plane.
NOTE
Secure the upper hose clamp before securing the lower clamp.
