3.1 BTS3902E Exterior
Th BTS3902E has a modular design with its ports on the bottom.
Figure 3-1 shows the BTS3902E. The BTS3902E on the left has a housing, and the BTS3902E
on the right does not have a housing. The camouflage shell is optional.
Figure 3-1 BTS3902E
(1) Upper housing (2) Camouflage shell (3) BTS3902E
Figure 3-2 shows the dimensions of a BTS3902E without a housing, and Figure 3-3shows the
dimensions of a BTS3902E with a housing.

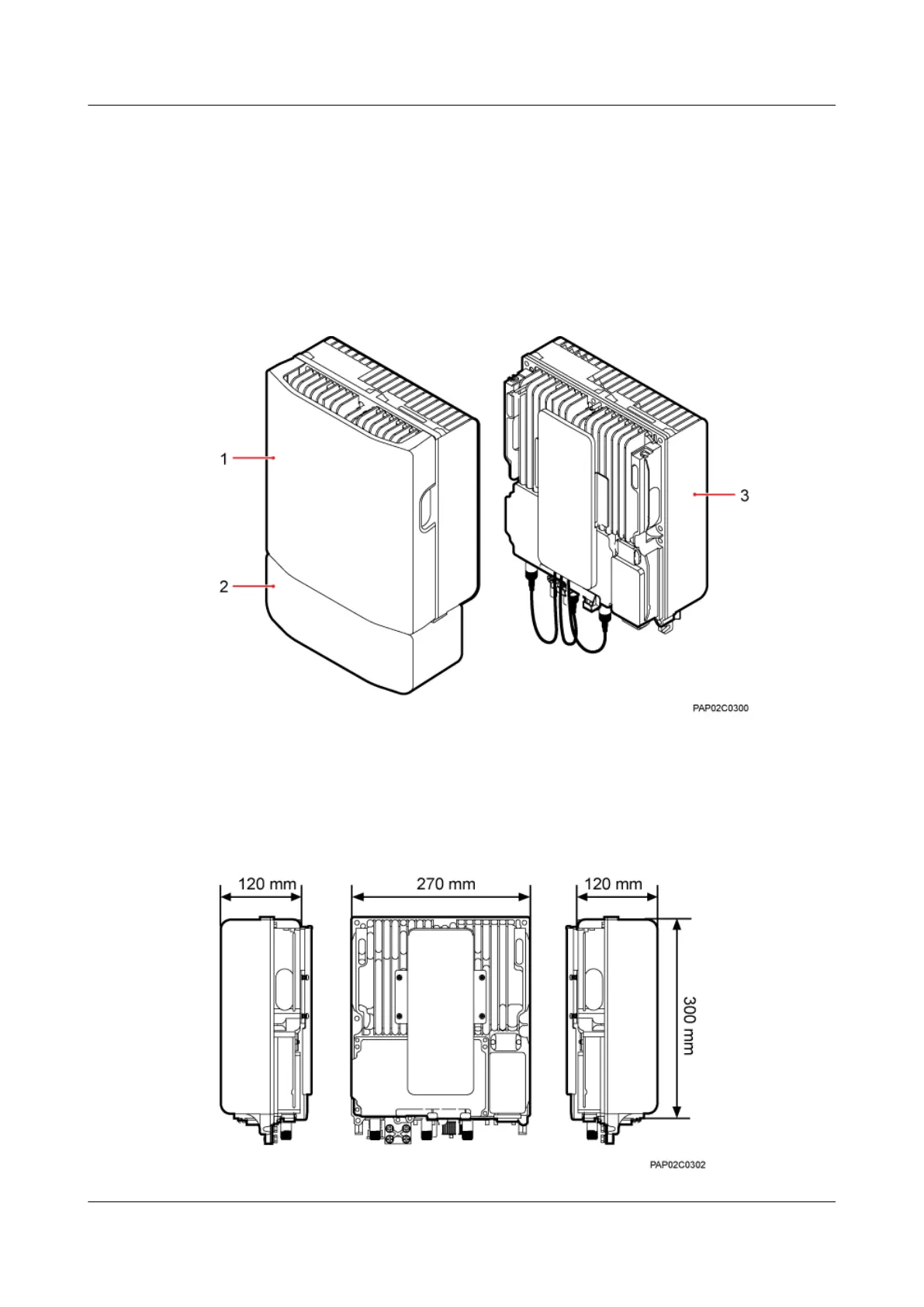

Figure 3-2 Dimensions of a BTS3902E without a housing
