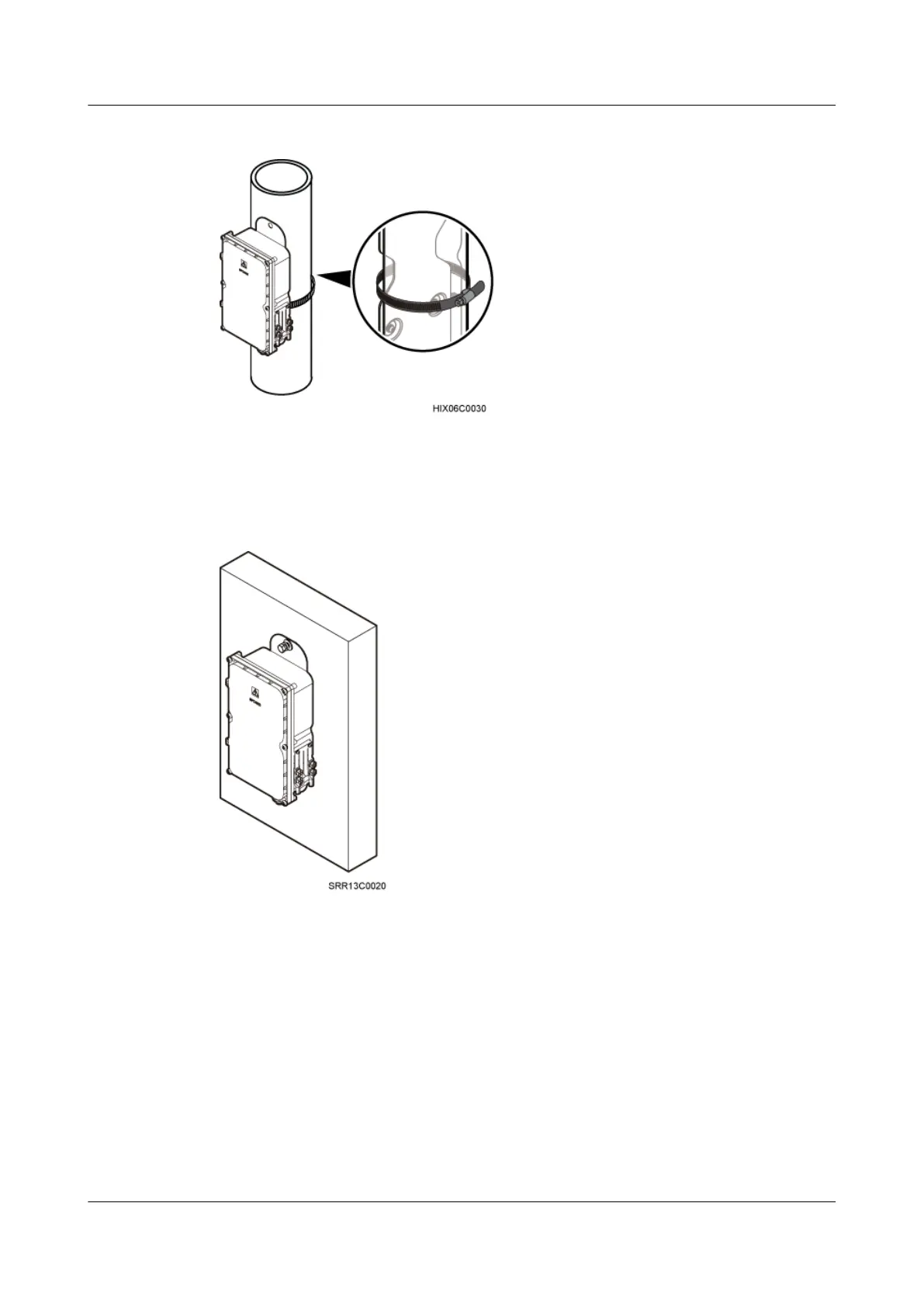

Figure 8-7 AC surge protection box installed on a pole
Installing an AC Surge Protection Box on a Wall
Figure 8-8 shows an AC surge protection box installed on a wall.
Figure 8-8 AC surge protection box installed on a wall
Installing an AC Surge Protection Box on a Wood Pole
Figure 8-9 shows an AC surge protection box installed on a wood pole.
