Huawei BTS3902E WCDMA - Figure 3-11 Recommended Installation Clearance for a Single BTS3902 E; Figure 3-12 Minimum Installation Clearance for a Single BTS3902 E

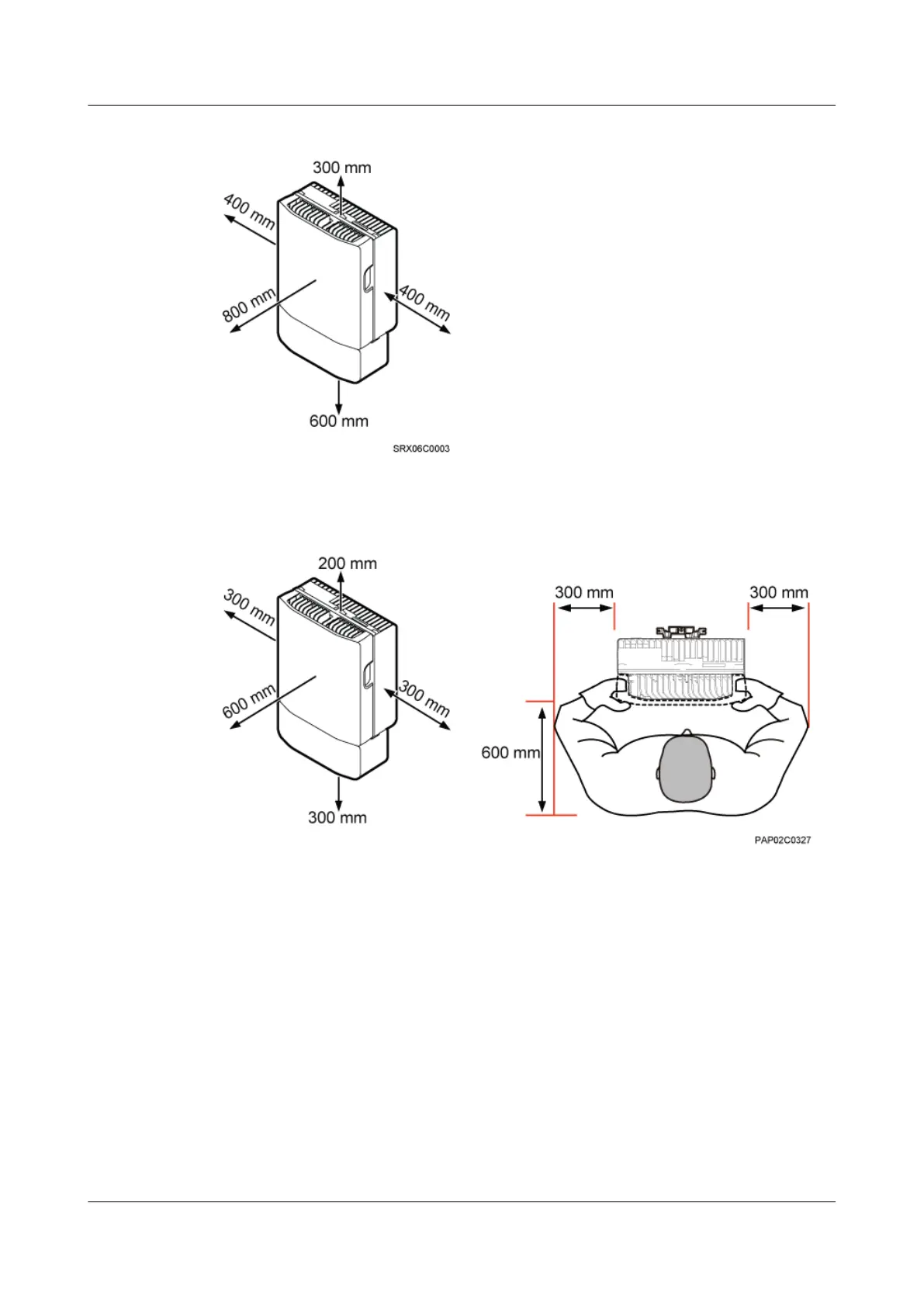

Figure 3-11 Recommended installation clearance for a single BTS3902E
Figure 3-12 shows the minimum installation clearance for a single BTS3902E.
Figure 3-12 Minimum installation clearance for a single BTS3902E
Figure 3-13 shows the recommended installation clearance for two BTS3902Es installed side
by side.
3 Information About the Installation
BTS3902E WCDMA
Installation Guide
3-10 Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Issue Draft A (2011-06-30)
