Huawei BTS3902E WCDMA - 8.2 AC Surge Protection Box Installation Options

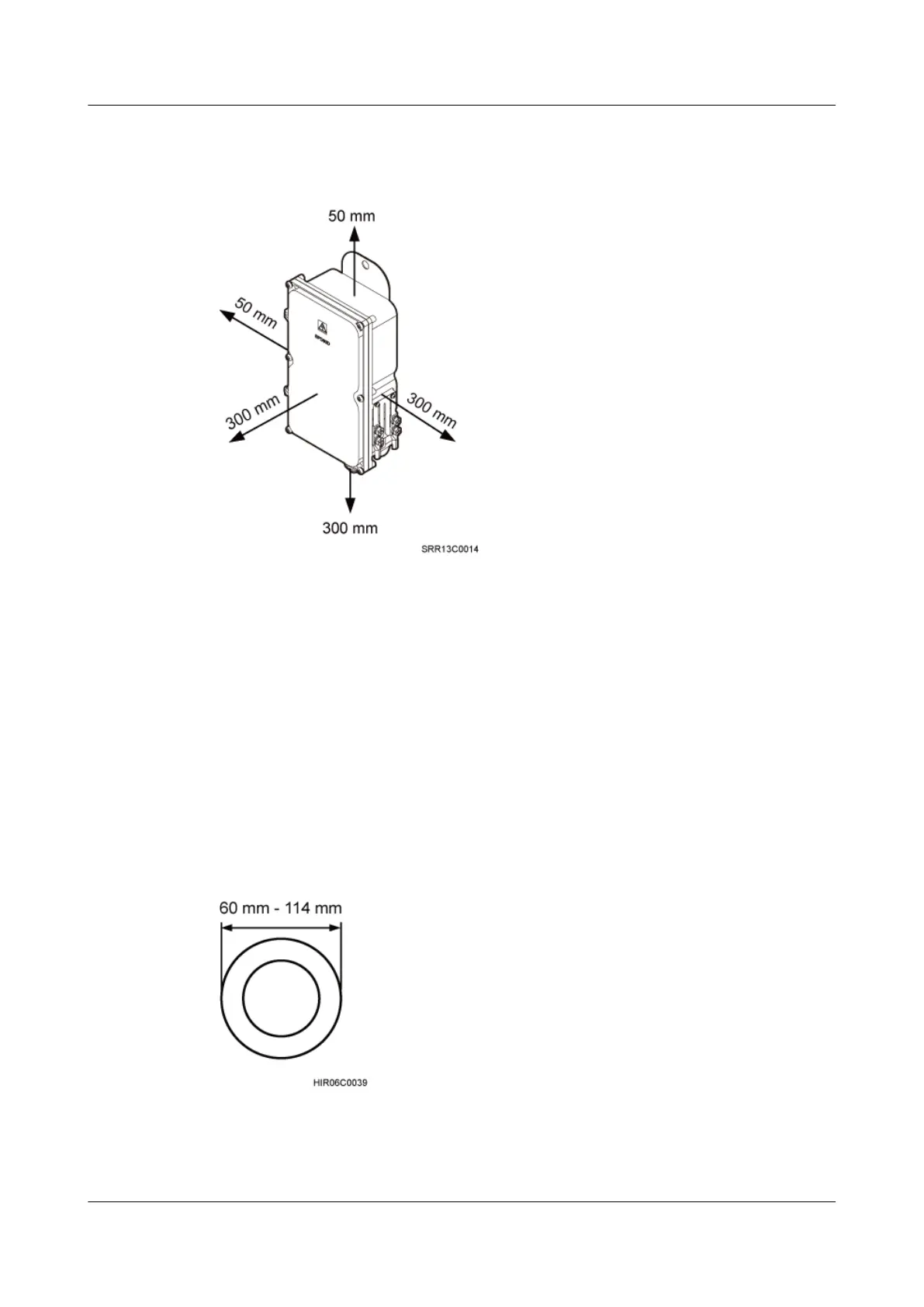

Figure 8-3 shows the minimum installation clearance for an AC surge protection box.
Figure 8-3 Minimum installation clearance for an AC surge protection box
8.2 Installation Options of an AC Surge Protection Box
This section describes installation options of an AC surge protection box. An AC surge protection
box can be installed on a pole, wall, or wood pole.
Installing an AC Surge Protection Box on a Pole with the Diameter of 60 mm to 114
mm (2.36 in. to 4.49 in.)
Figure 8-4 shows the diameter of a pole for installing an AC surge protection box.
Figure 8-4 Diameter of a pole
Figure 8-5 shows an AC surge protection box installed on a pole.
