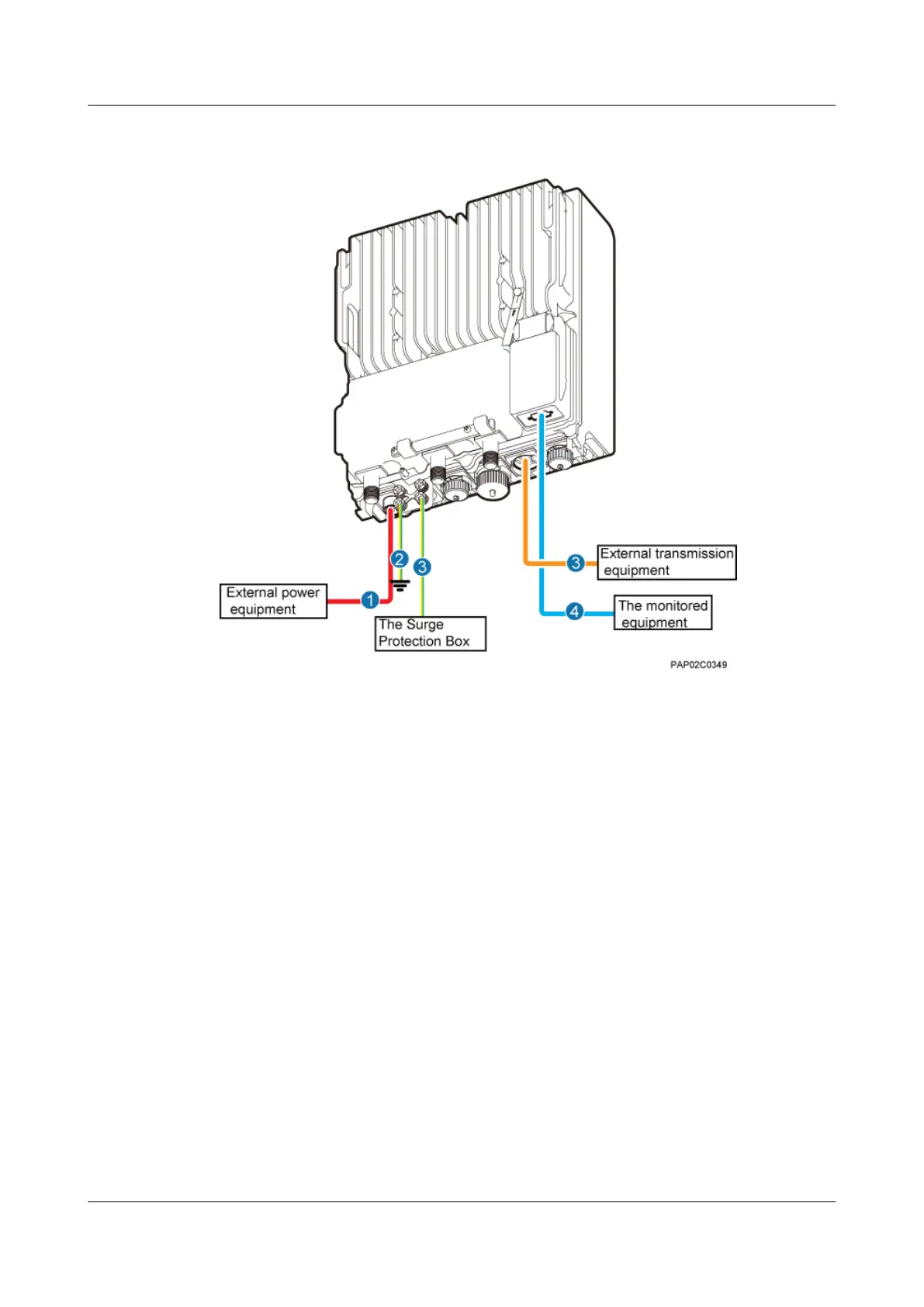

Figure 9-1 Cable connections of a single BTS3902E implementing transmission over an
electrical port
(1) BTS3902E power cable (2) PGND cable (optional) (3) Equipotential cable (optional)
(4) Fast Ethernet or gigabit Ethernet
(FE/GE) cable
(5) BTS3902E monitoring signal
cable (optional)
—
Figure 9-2 shows the cable connections of a single BTS3902E implementing transmission over
an optical port.
BTS3902E WCDMA
Installation Guide 9 Installing Cables
