Huawei IPC6131-WD-A - A Network Cable Connection

A Network Cable Connection
Materials and Tools Required
Use an 8-pin twisted pair (within the effective transmission distance of 100m), two standard
RJ45 plugs and a RJ45 special tool to process the network cable.
NOTE
A network cable tester is recommended to prepare for testing the produced network cable.
Pin Definitions
Pin definitions of the straight network cable used for connecting dome and HUB, switch or other
network devices:

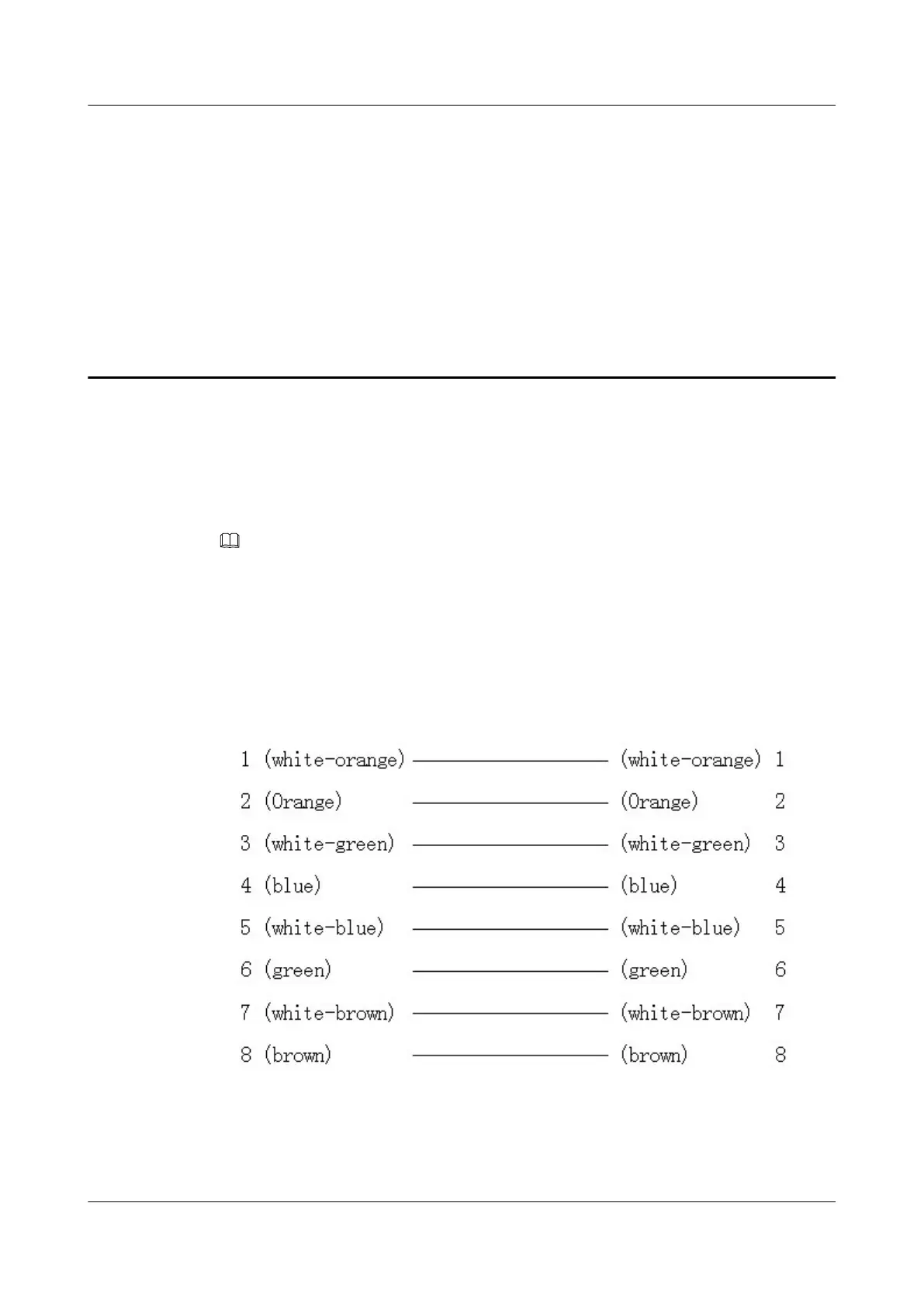

Figure A-1 Straight Network Cable
Pin definitions of the crossover network cable used for directly connecting dome and PC:
IPC6131-WD-A&6123-WDL-A&6232-IR&6212-
IR&6231-WD-VRZ&6332-MIR&6311-IR&6331-IR
