NetCol5000-A 42 kW Air Cooled In-row Precision Air
Conditioner
User Manual
5 Operation and Maintenance
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

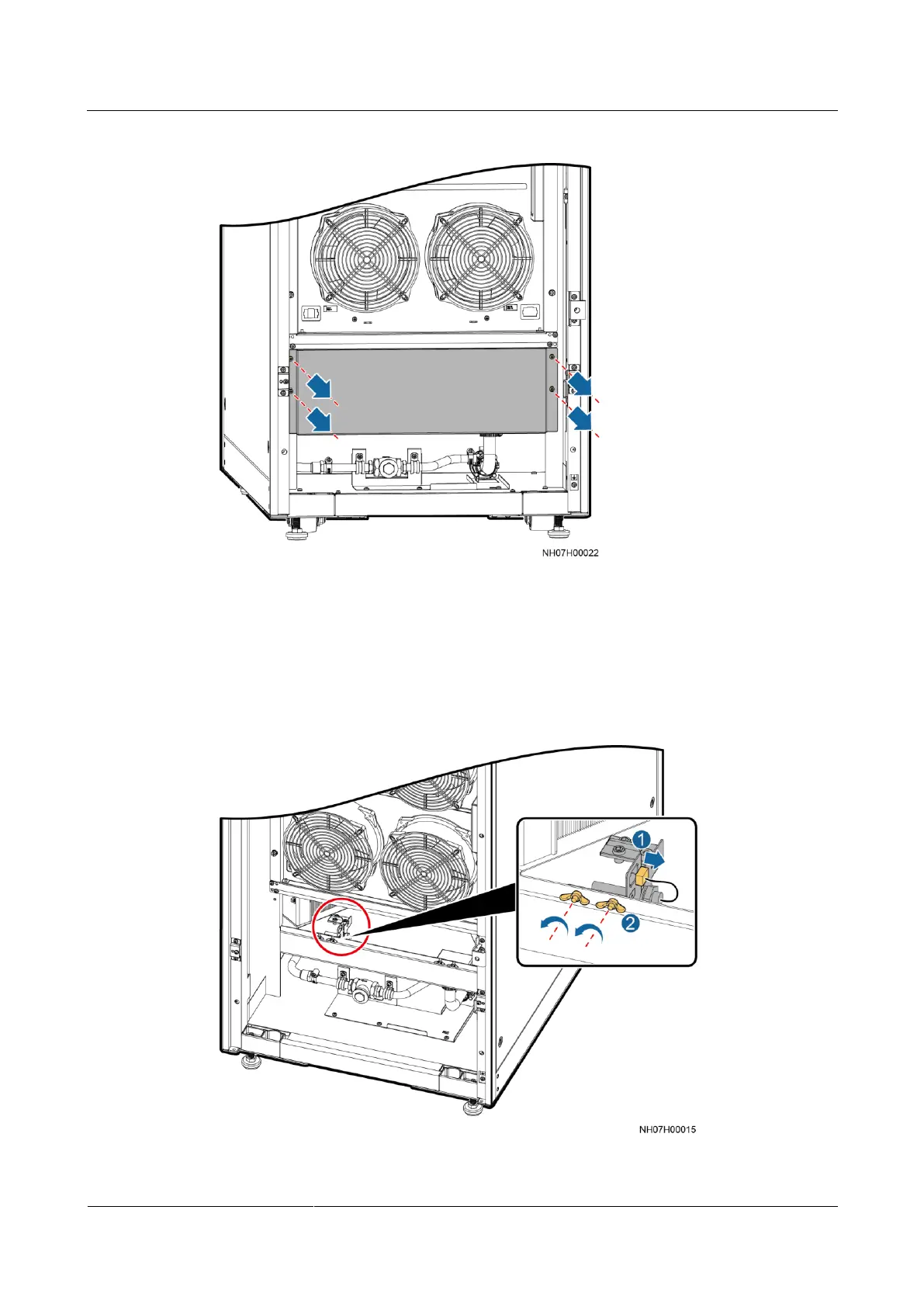

Figure 5-27 Removing a water pan cover
Step 3 Cut the cable tie securing the liquid level detector and remove the terminal.
Step 4 Remove the two butterfly nuts on the liquid level detector fastener, remove cables from the
liquid level detector, and remove the liquid level detector and its fastener, as shown in Figure
5-28.
Figure 5-28 Removing a liquid level detector fastener
