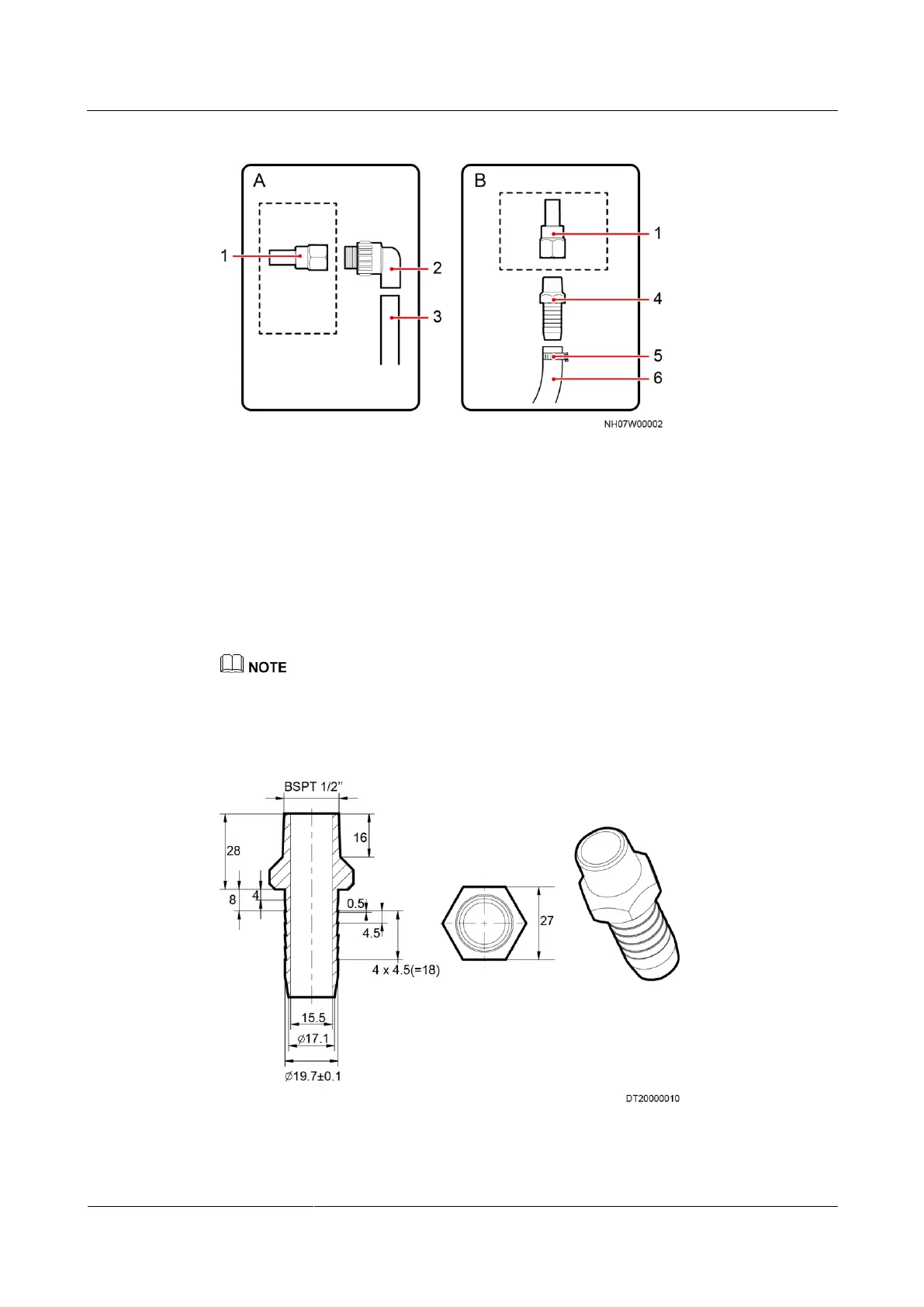

Figure 3-5 Connecting a drainpipe
(1) Connector with inner screw threads:
BSPP 1/2 inch; delivered with air
conditioners
(2) Conversion adapter: BSPT 1/2 inch;
connected to a rigid pipe with external
threads
(3) Rigid pipe: made of PP-R, C-PVC, or
other materials
(4) Pagoda connector: For details, see
Figure 3-6.
(6) Hose: inner diameter of 3/4 inch; made
of EPDM or other materials
The object shown in the dotted line box is the drainpipe connector with inner screw threads delivered
with air conditioners. The hose clamp as shown by (5) in the preceding figure is provided in standard
configuration. Other parts are not provided and need to be purchased.
Figure 3-6 Pagoda connector (unit: mm)
