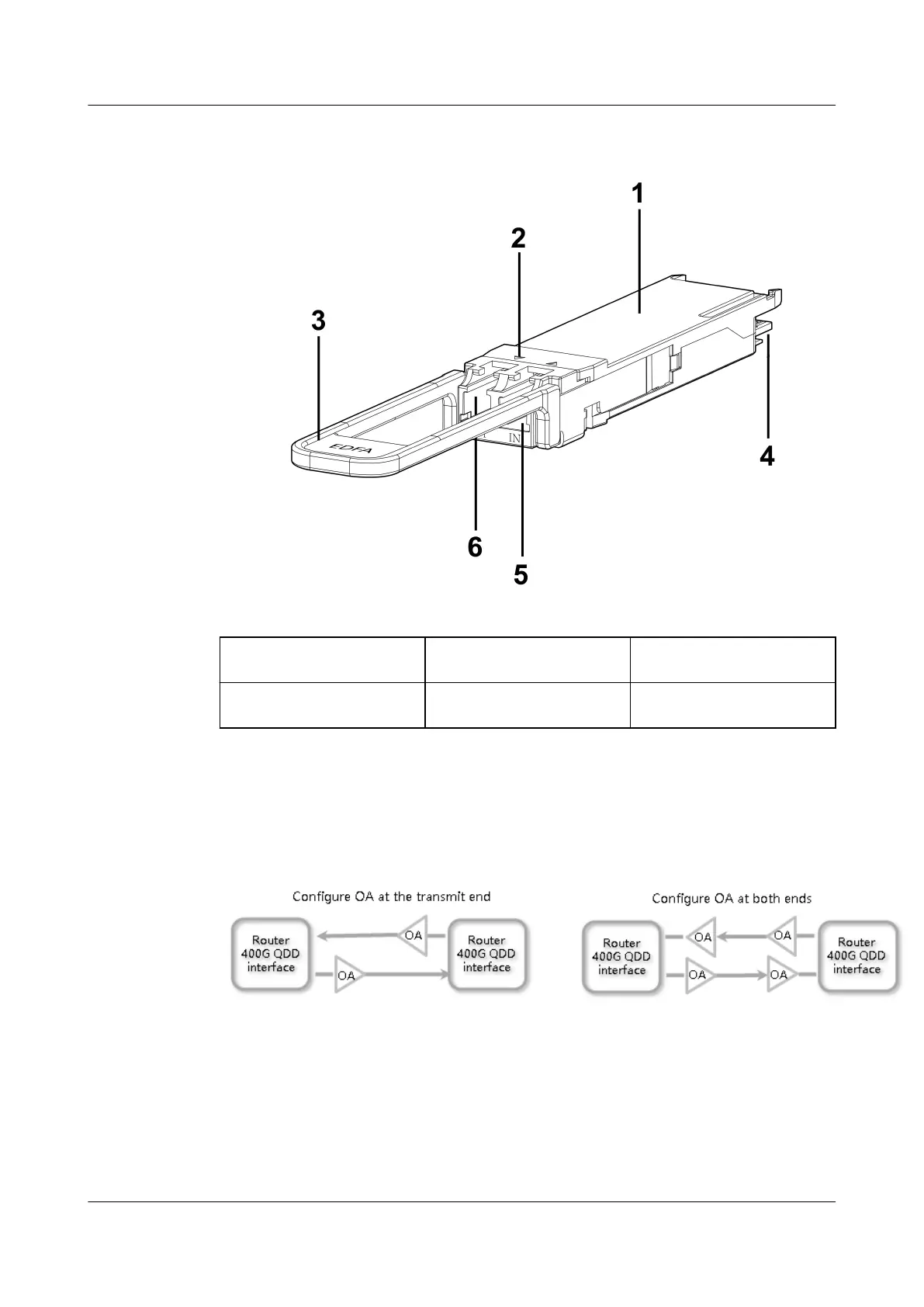

Figure 3-44 Optical amplier structure
1. Shell 2. signal direction 3. Handle
4. Module connector 5. Receiver 6. Transmitter
3.4.2.3 Application Scenario
When a router uses an 80 km QSFP-DD optical module, an OA is required.
Congure OAs as follows according to the transmission distance between the
router interfaces to be interconnected and the insertion loss of optical links.
