Huawei NetEngine 8000 F User Manual

Technical Specications
Table 3-237 Technical specications of a standard serial cable and a serial adapter
cable
Par
t
Nu
mb
er
Mod
el
Description Connect
or X1
Connector
X2
Cable
Type
Le
ng
th
Nu
mb
er
of
Co
res
Fir
e
Rat
ing
040
408
38
- Single
Cable,Serial
Cable,
3m,D9F,CC2
P0.32PWG1
U,MP8-
VI,S3026V
D9F MP8-VI Twiste
d-Pair
Cable,
UL246
4,0.32
mm,
28AW
G,2
Pairs,P
ANTO
NE
WARM
GRAY
1U
3m 2
cor
es/
pai
r
-
3.5.5 USB-to-Ethernet serial Cable
This section describes the structure and technical specications of the USB-to-
Ethernet serial cable.
Overview
One end of a USB-to-Ethernet serial cable is a USB port used to connect to a
client, and the other end is split into two RJ45 connectors used to connect to
routers. The two RJ45 connectors include one standard console port and one non-
standard console port. Pin assignment for the two ports is
dierent. For details,
see Table 1.
Appearance

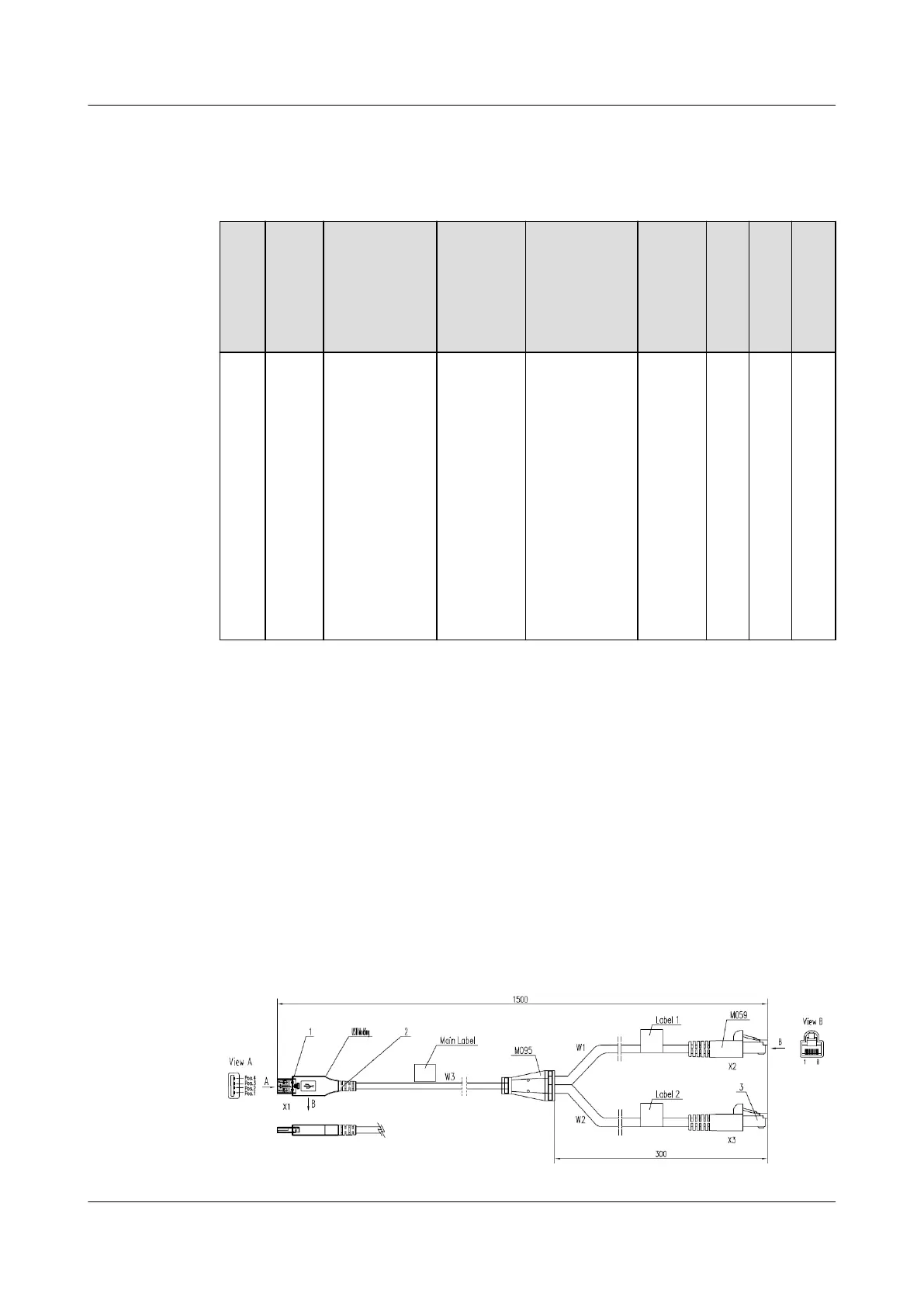

Figure 3-66 Structure of the USB-to-Ethernet serial cable
HUAWEI NetEngine 8000 F
Hardware Guide 3 Hardware Description
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 322

Huawei NetEngine 8000 F Specifications
