Appearance
Figure 3-65 shows the structure of a standard serial cable, and Table 3-236
describes the cable connections.

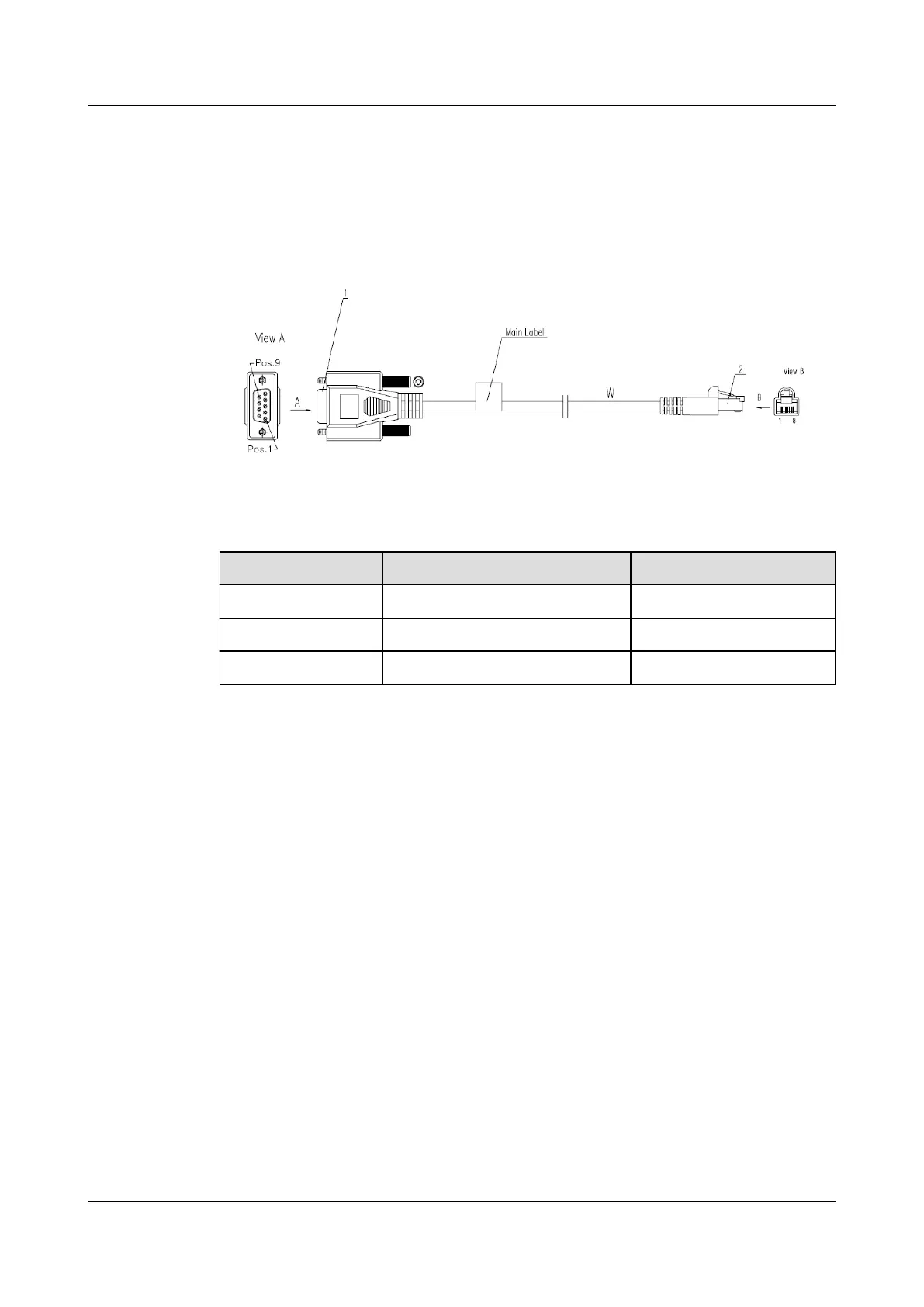

Figure 3-65 Standard serial cable (04040838 - Single Cable,Serial Cable,
3m,D9F,CC2P0.32PWG1U,MP8-VI,S3026V)
1 DB9 female 2 Network interface RJ45 W communication cable
Table 3-236 Connections of the standard serial cable
Start point End point Color
X1.2 X2.3 Black
X1.3 X2.6 Brown
X1.5 X2.5 Red
HUAWEI NetEngine 8000 F
Hardware Guide 3 Hardware Description
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 321
