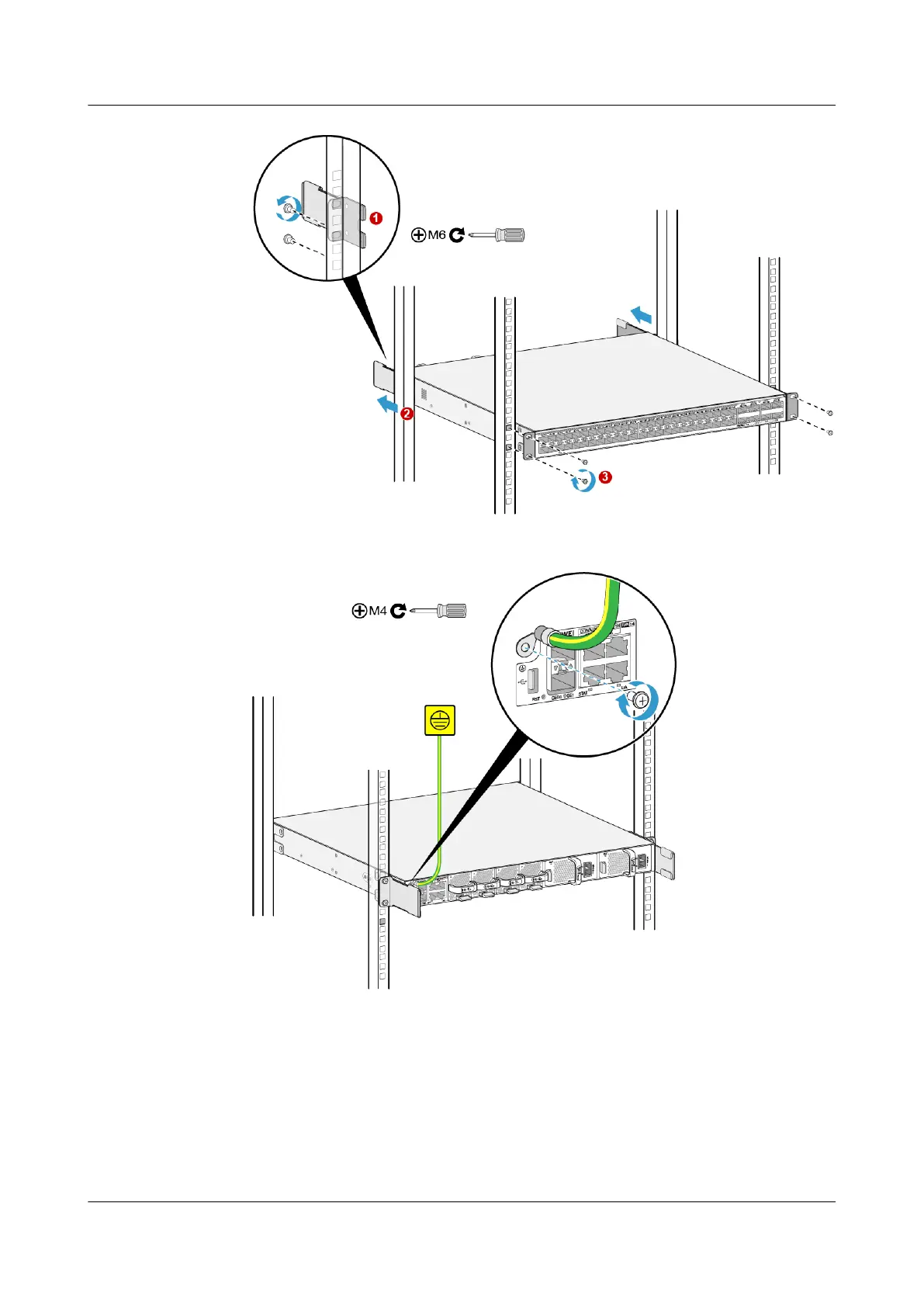

8. Use a torque screwdriver to install the ground cable using an M4 screw with a

torque of 1.2 N m.

4.1.6 Cable Routing Planning

4.1.6.1 DC Power Cable Routing Planning

HUAWEI NetEngine 8000 F

Hardware Guide 4 Hardware Installation and Parts Replacement
