Huawei NetEngine 8000 F User Manual

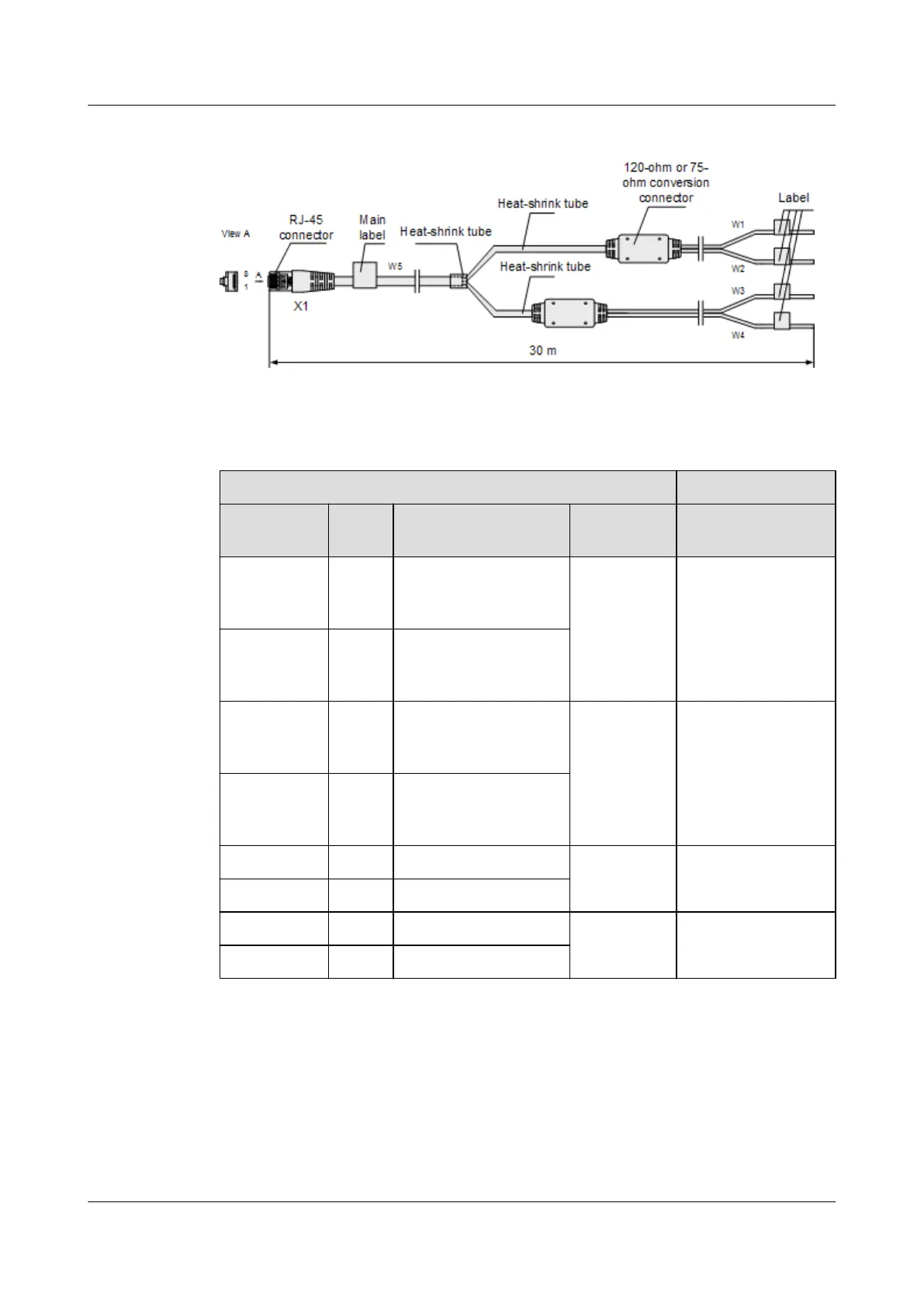

Figure 3-69 Appearance of the clock transfer cable (120 ohms to 75 ohms).
Cable Pinouts
Table 3-244 Pinout of a cable
120-ohm Cable 75-ohm Cable
Connector
Pin
Color Description Relationshi
p
Cable Number
X1.1 Orang
e
Negative receive end
of the 120-ohm
external clock
Twisted pair W1
X1.2 White Positive receive end
of the 120-ohm
external clock
X1.4 Blue Negative transmit
end of the 120-ohm
external clock
Twisted pair W2
X1.5 White Positive transmit end
of the 120-ohm
external clock
X1.3 Green Unspecied Twisted pair W3
X1.6 White Unspecied
X1.7 White Unspecied Twisted pair W4
X1.8 Brown Unspecied
HUAWEI NetEngine 8000 F
Hardware Guide 3 Hardware Description
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 328
