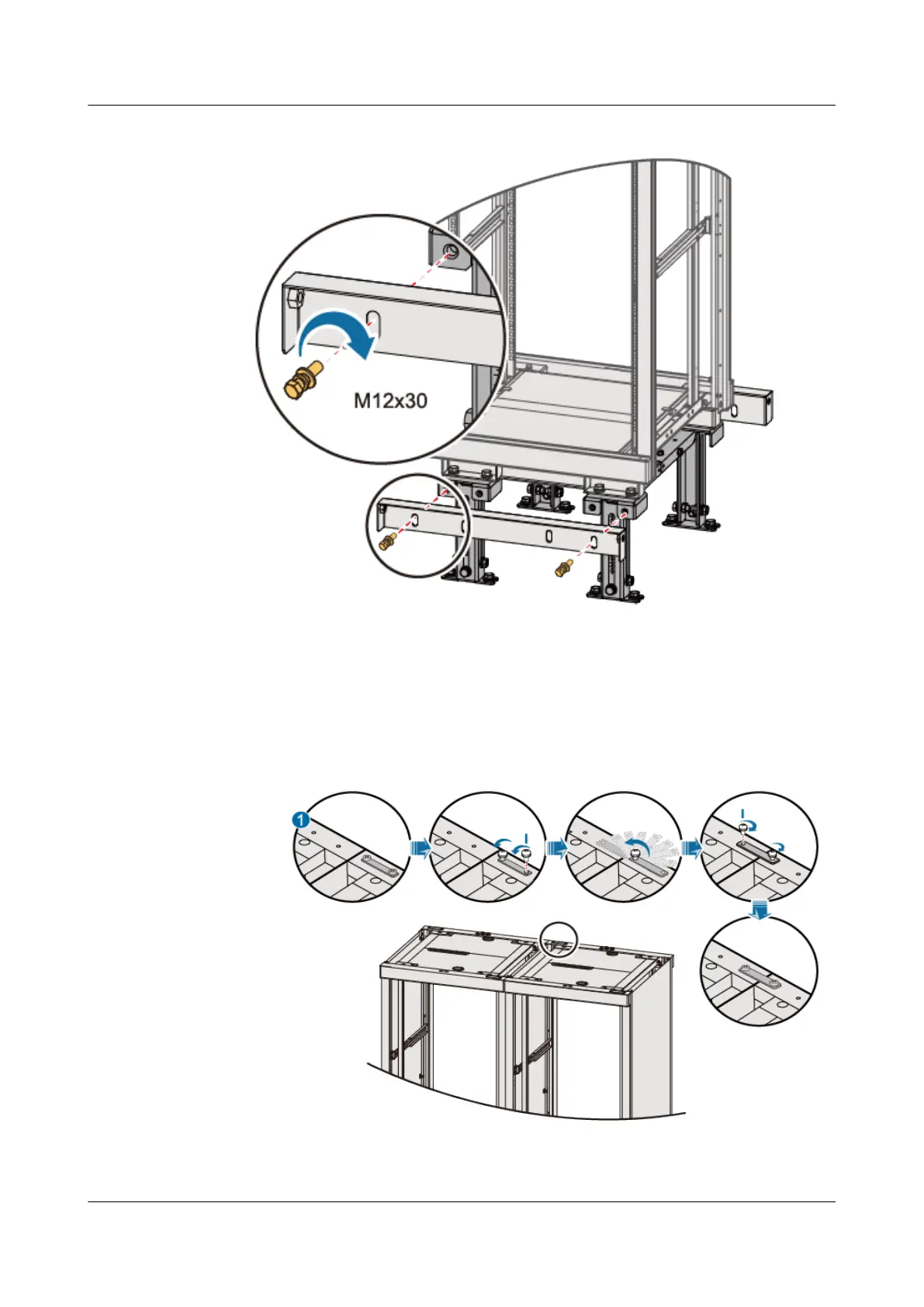

Figure 4-29 Installing the oor support bracket
Attaching the Cabinets and Restoring the ESD Floor
1. Installing the connection plates.
a. Remove the connection plates on the lintels of the front and rear doors
and install them again as shown in the gure.
Figure 4-30 Installing the connection plates
b. Use the spirit level and the plumb line to verify that the bottom line of
the cabinet is horizontal and the front line of the column is vertical. If the
HUAWEI NetEngine 8000 F
Hardware Guide 4 Hardware Installation and Parts Replacement
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 371
