Figures in the document are for reference only, and the actual appearance of the devices
may vary depending on the exact device model.
A chassis that adopts port-side air intake can house only power modules and fan modules
with the same air intake mode.
Similarly, a chassis that adopts port-side air exhaust can house only power modules and fan
modules with the same air exhaust mode.
Version Mapping
The huge hardware mapping data is migrated to the Info-Finder hardware center,
where you can easily obtain hardware mapping information.
The Info-Finder hardware center incorporates comprehensive hardware
information and mapping data by sales regions, allowing you to quickly nd
desired information and lter the mapping data for more ne-grained data
display.
enterprise: https://info.support.huawei.com/info-nder/search-center/en/
enterprise/routers/netengine-8000-pid-252772223/hardwarecenter
Slot Layout

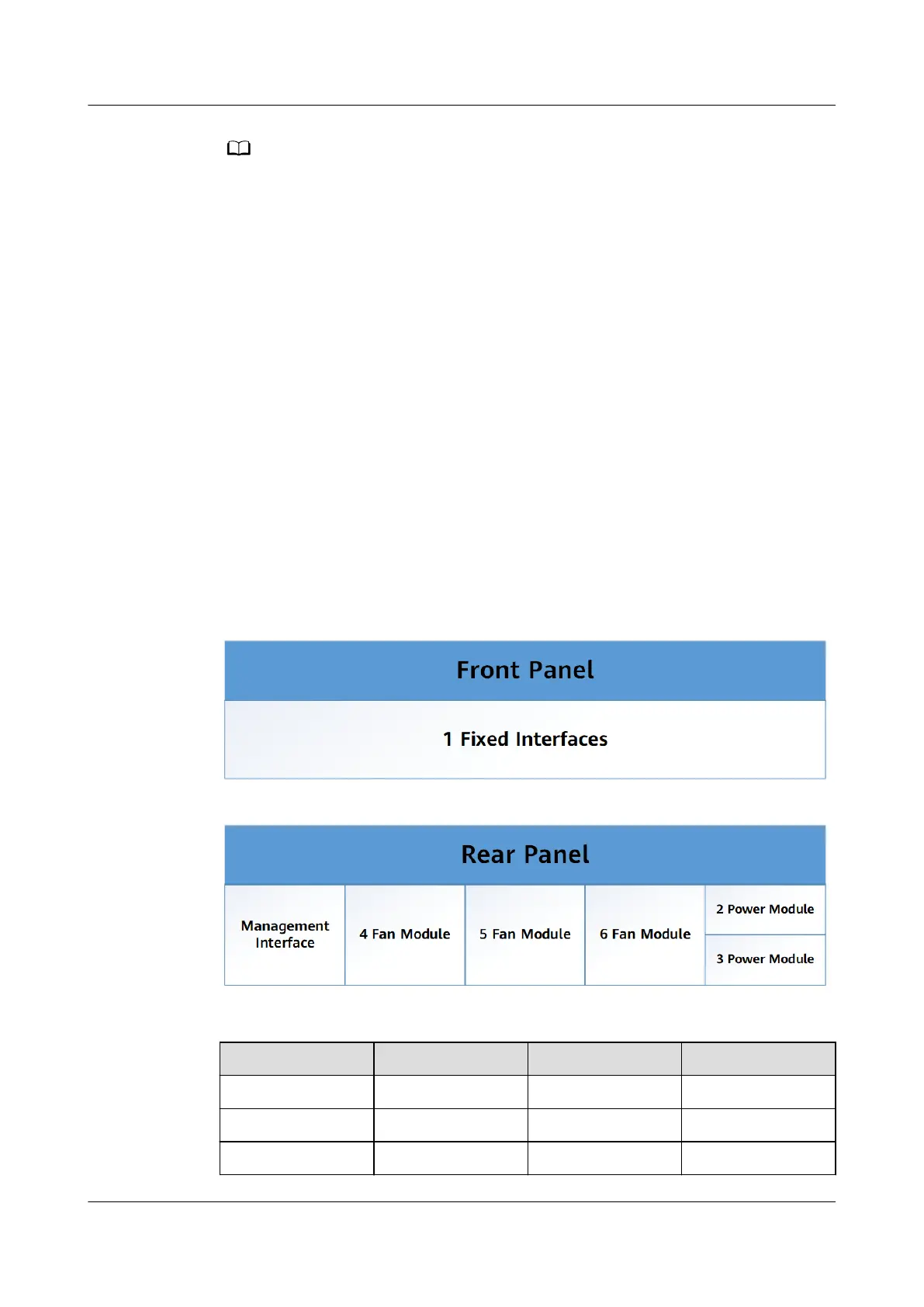

Figure 3-9 Slot Layout of the NetEngine 8000 F2A-8K36H
Table 3-16 Slots on the NetEngine 8000 F2A-8K36H
Slot Type
Slot ID Slot Direction Remarks
IPU 1 - -
POWER 2 - -
POWER 3 - -
HUAWEI NetEngine 8000 F
Hardware Guide 3 Hardware Description
Issue 05 (2023-03-31) Copyright © Huawei Technologies Co., Ltd. 39
