Hunter X-CORE User Manual

8
MOUNTING THE RECEIVER

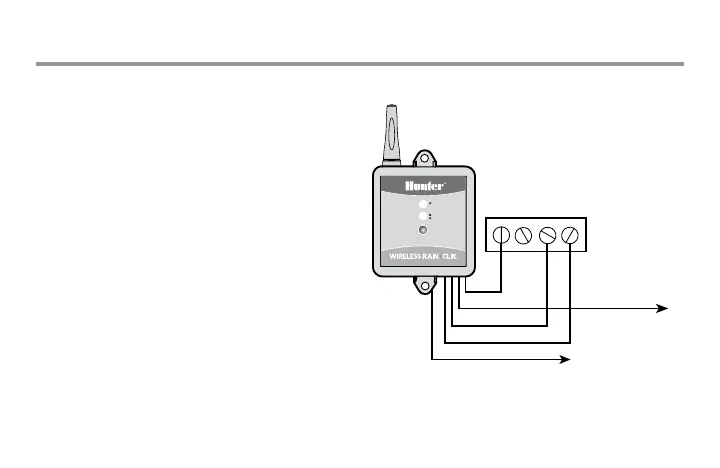

Wiring the Receiver to Other Controllers:
Normally Closed Sensor Applications
1. Attach the two yellow wires to the 24
VAC terminals.
2. Attach the blue and white wire to the sensor
terminals (if available) or in-line with the valve
common wire.
P MV C AC AC
W
B
Y
Y
O
Common Wire
to all Valves
Used for normally
open sensor
applications
SENSOR STATUS
SENSOR BYPASS
Press to bypass, press
again to re-enable
GREEN = Sensor is dry
RED = Sensor is wet
Red light indicates
sensor is bypassed
RAIN SENSOR BYPASS

Hunter X-CORE Specifications

General

Start Times Per Program	4
Max Station Run Time	4 hours
Warranty	2 years
Application	Residential
Mounting	Wall mount
Station Timing	1 minute to 4 hours
Number of Stations	2, 4, 6, or 8
Watering Duration	1 minute to 4 hours
Display	LCD
Stations	2, 4, 6 or 8 stations
Indoor/Outdoor	Indoor or Outdoor
Seasonal Adjustment	Yes
Watering Days	7 days
Rain Delay	Yes
Power Source	24V AC transformer
Battery Backup	Yes
Programs	3
