3.12 Hydraulic and Pneumatic Actuator Component Specications
The following tables contain the component descriptions and quantities for the large and small
Hydraulic and Pneumatic actuators.
3.12.1 Large Hydraulic Actuator Components
7
6
4
12
11
4
13
8
3
2
1
10
16
14
15
5
9

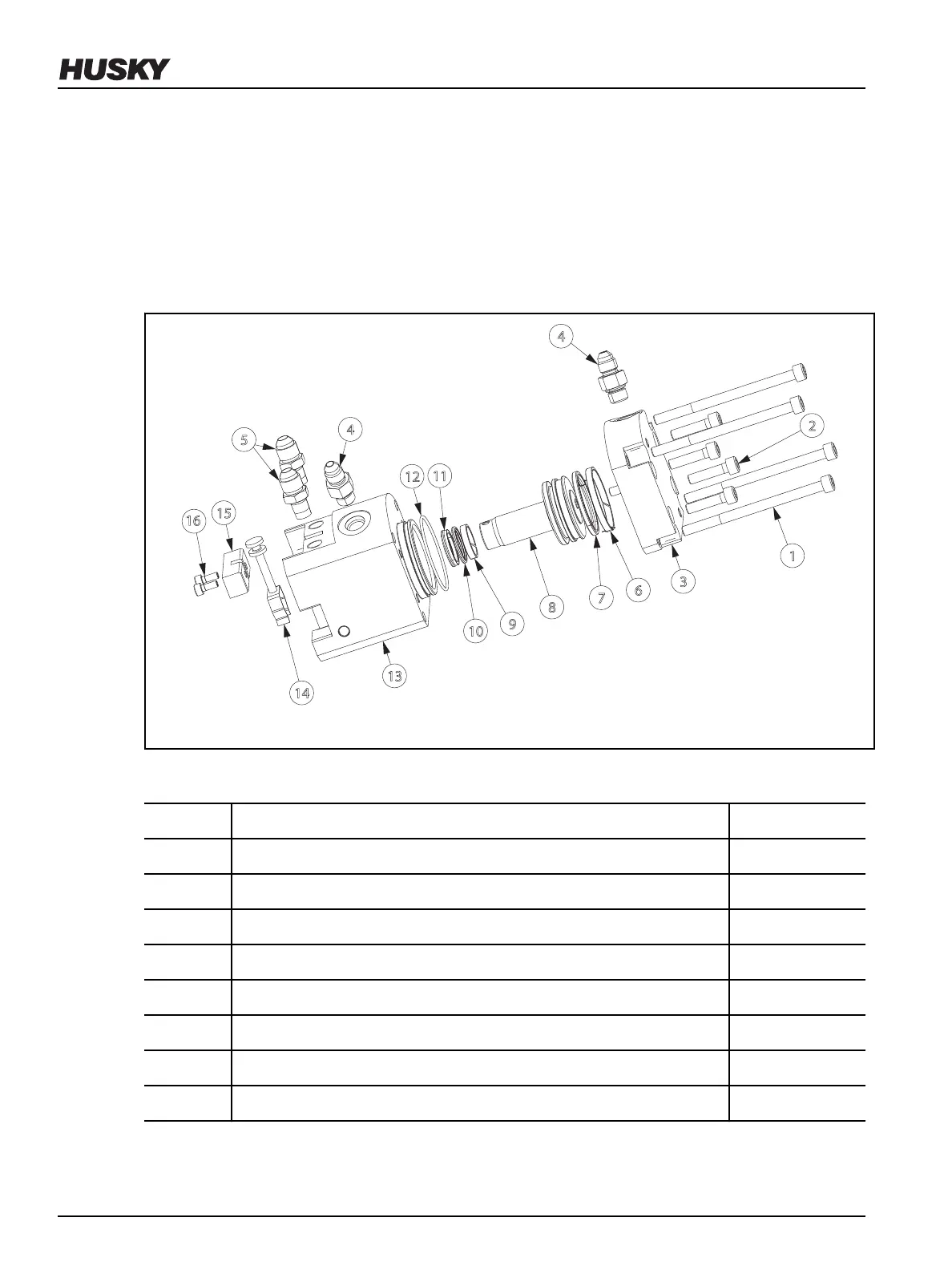

Figure 3-1: Large Hydraulic Actuator Components
Table 3-1: Large Hydraulic Actuator Components
Item Component Description Quantity
1 SHCS M6 x 90 mm (3.5 in) 4
2 SHCS M6 x 25 mm (1 in) 4
3 Cylinder cap 1
4 Adapter tting JIC AN4 to NPT for hydraulic 2
5 Adapter tting JIC AN5 to NPT for water 2
6 Wear Ring Piston 1
7 Piston Seal 1
8 Piston 1
