Husky Unify - Installing Ultra Nozzle Heaters (UNH) with Ring Thermocouples

1
2
3
4
5

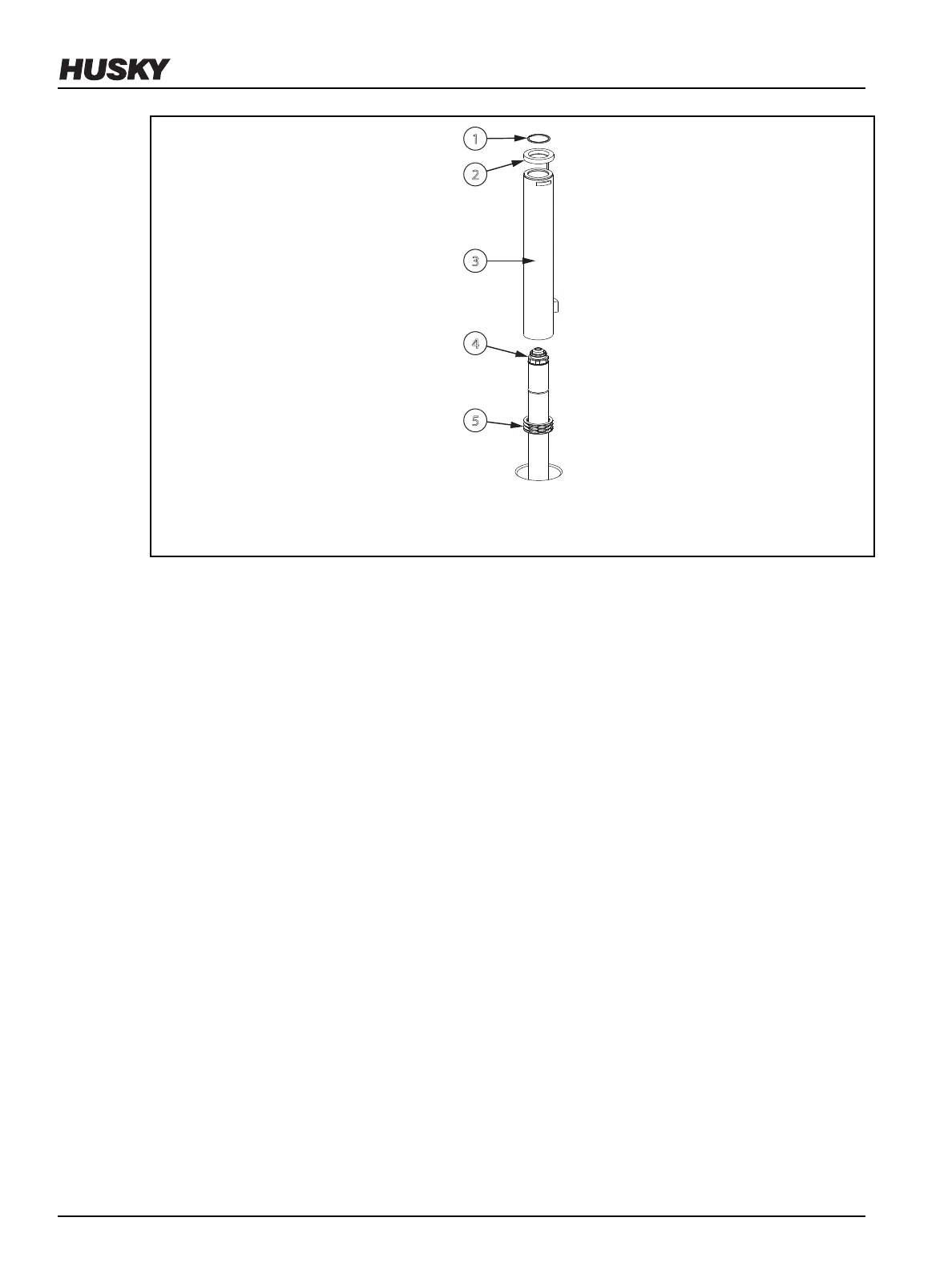

Figure 6-22: Ultra Nozzle Heater (UNH) Assembly With a Ring Thermocouple
1. Retaining Clip 2. Ring Thermocouple 3. Ultra Nozzle Heater (UNH) 4. Nozzle Tip 5. Wave Spring
5. Remove the nozzle heater.
6. Remove and discard the wave springs.
6.10.2.2
Installing Ultra Nozzle Heaters (UNH) With Ring Thermocouples
To install an Ultra Nozzle Heater (UNH) with a ring thermocouple, do the following:
1. Install new wave springs over the nozzle housing and nozzle tip.
v 2.2 — March 2021 Unify Manifold System
84 Installing Ultra Nozzle Heaters (UNH) With Ring Thermocouples
