3.12.3 Large and Small Pneumatic Actuator Components
3
4
1
12
10
13
11
9
5
7
14
6
2
8

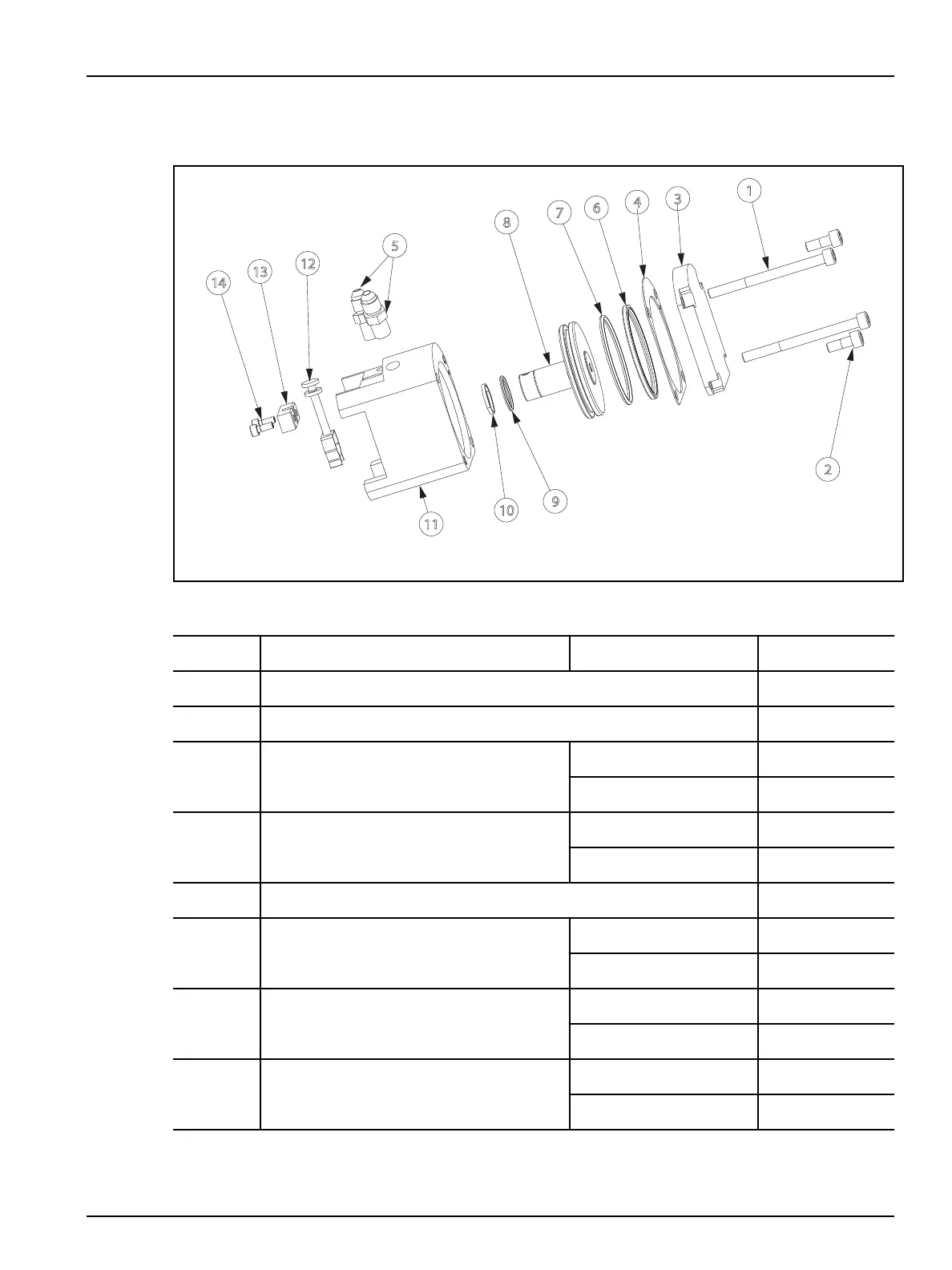

Figure 3-3: Large and Small Pneumatic Actuator Components
Table 3-3: Large and Small Pneumatic Actuator Components
Item Component Description Actuator Size Quantity
1 SHCS M6 x 75 mm (2.95 in) 2
2 SHCS M6 x 16 mm (0.63 in) 2
3 Cylinder Cap Small 1
Large 1
4 Gasket Small 1
Large 1
5 Adapter tting JIC AN4 to NPT for Air 2
6 Piston Seal Small 1
Large 1
7 O Ring Small 1
Large 1
8 Piston Small 1
Large 1
