1
2
1

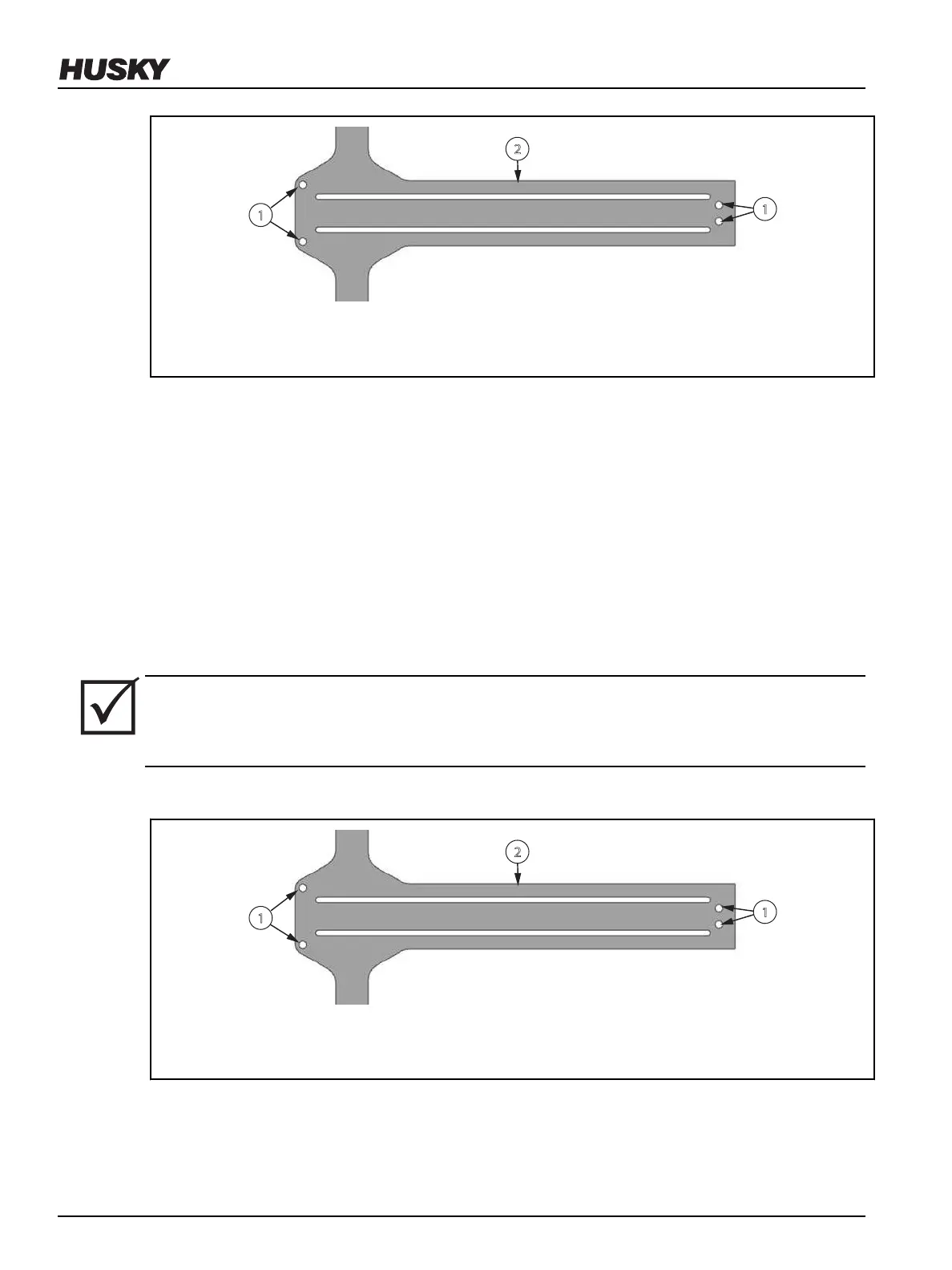

Figure 4-6: Unify Frame with Mounting Tabs
1. Mounting Tabs 2. Unify Frame
4.2.2
Removing the Manifold assembly from the Mold
To remove the Unify manifold assembly from the mold, do the following:
1. Lock out and tag the machine. Refer to Section 2.5 for more information.
2. For a hydraulic manifold, disconnect the hydraulic and cooling hoses to the manifold. For a
pneumatic manifold, disconnect the air and cooling hoses (if equipped) to the manifold.
3. Disconnect the electrical cables to the manifold.
4. Remove the mold from the machine. Refer to the machine and mold manufacturer’s manual
for more information.
5. Remove the screws securing the manifold assembly to the mold.
IMPORTANT!
Do not lift the system using side mounted holes or from the wire and hose management
channels.
6. If required, remove the hold down screws (M6 or ¼ - 20) from each mounting tab on the
unify frame.
1
2
1
Figure 4-7: Unify Frame with Mounting Tabs
1. Mounting Tabs 2. Unify Frame
7. Install hoist rings into the designated lifting points on the manifold assembly. Refer to the
assembly drawing for the location of the lifting points.
v 2.2 — March 2021 Unify Manifold System
52 Removing the Manifold assembly from the Mold
