6. Remove the screws on the outer perimeter of the actuator.
7. Remove the actuator vertically from the manifold.
8. Label the actuator with the drop location.
6.6.2 Installing the Pneumatic Actuator to the Manifold
To install the pneumatic actuator to the manifold, do the following:
1. Make sure that the piston in the actuator is in the closed position.
2. If equipped with a thermal regulator, install the disc spring at the drop location that will
contain the thermal regulator.
3. If equipped, install the thermal regulator onto the disc spring.
4. Install the actuator at the drop location or over the thermal regulator, if equipped. The
actuator is labeled by drop location (Refer to Section 6.6.1). Make sure the correct actuator is
installed for the drop location.
2
3
1

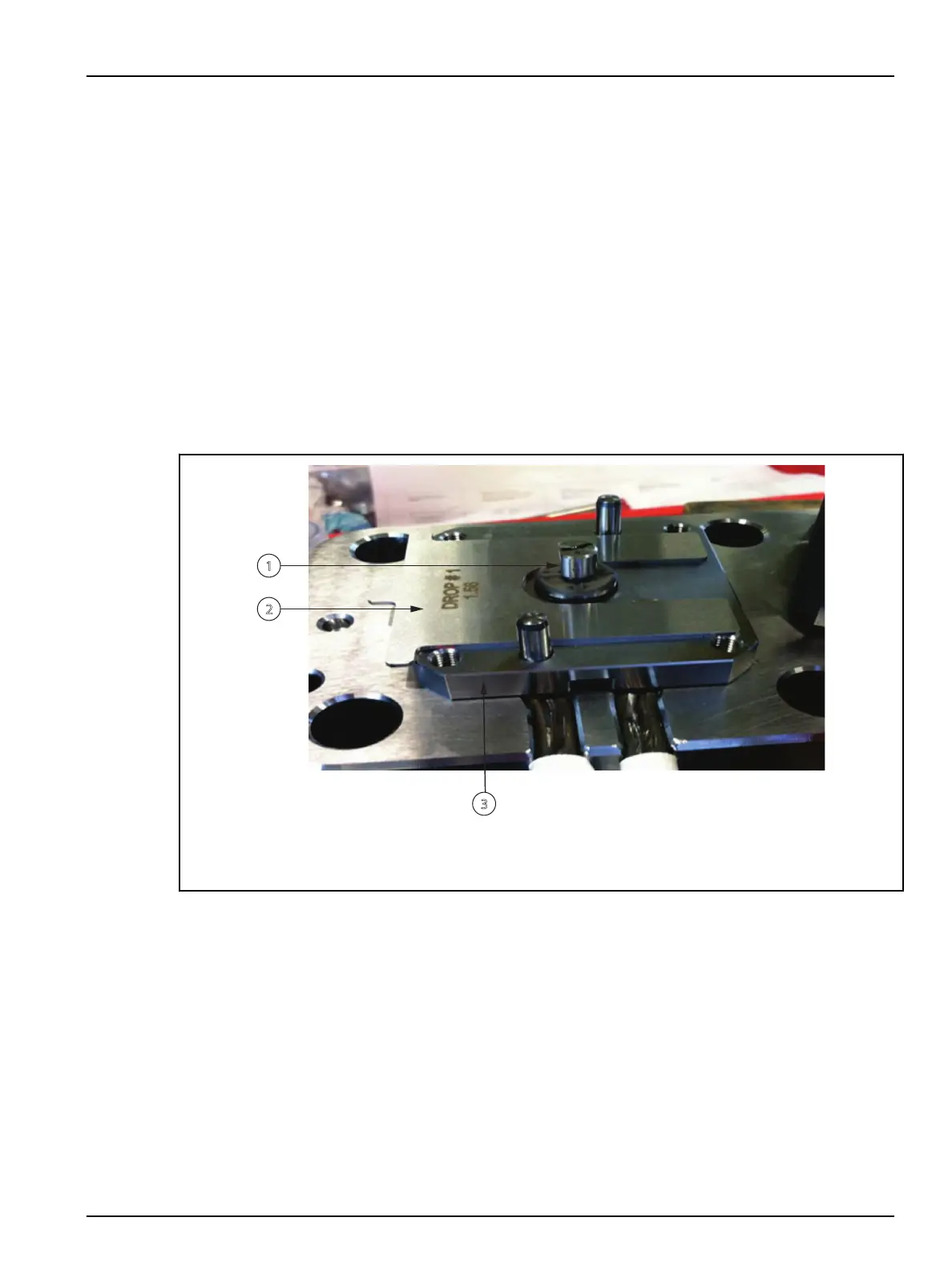

Figure 6-12: Removing and Installing a Shim
1. Valve Stem 2. Shim Labeled with Drop Location 3. Bushing Cap
5. Install, but do not tighten, the screws on the outer perimeter of the actuator.
